Rigging system description
Storage and handling elements

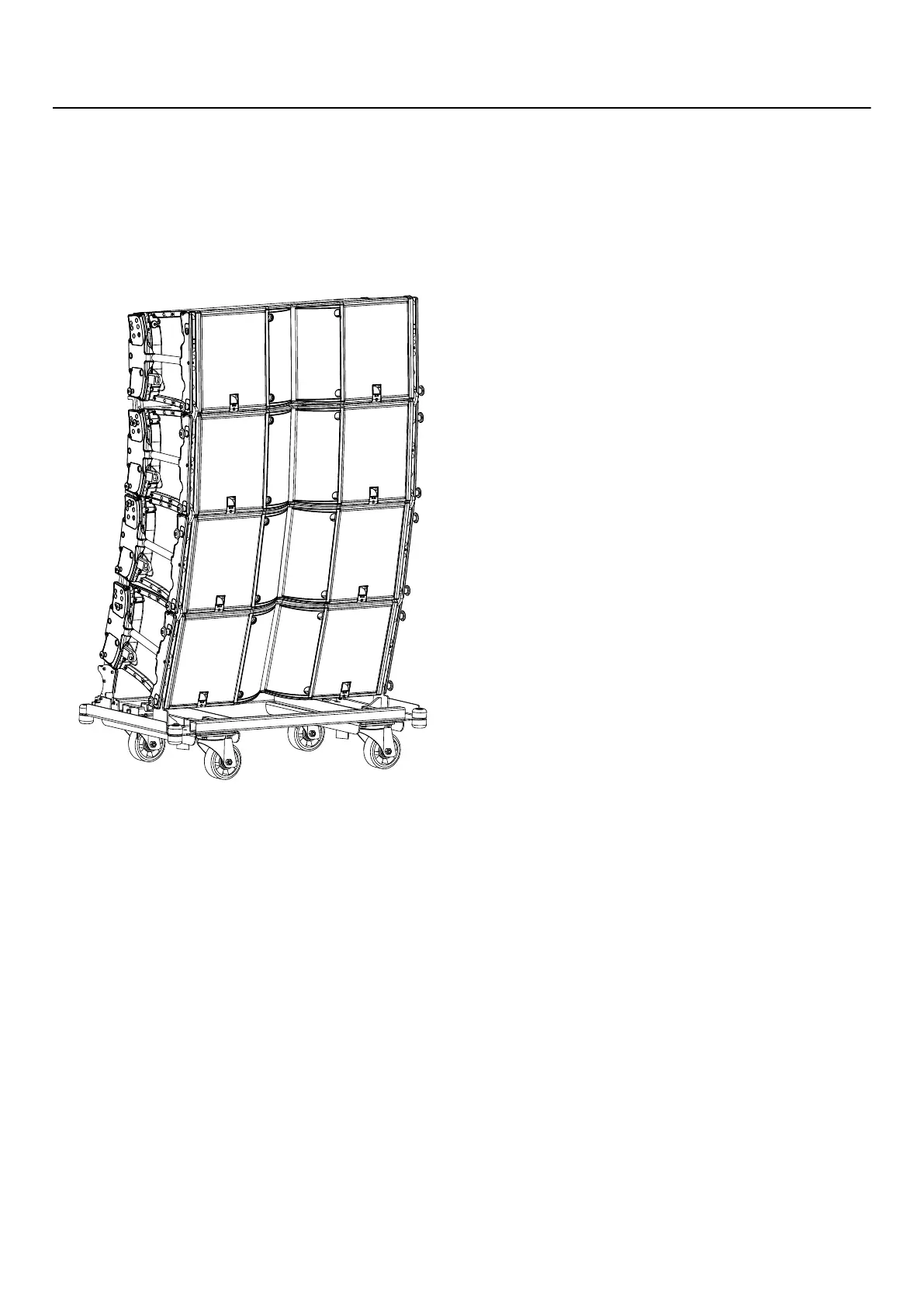

K3-CHARIOT
K3-CHARIOT is a chariot designed for the transportation and storage of blocks of up to four K3. It features two rear
rigging arms to secure the lower K3.
During transportation, the blocks must have an inter-enclosure angle of 10° to avoid any separation of the enclosures.
This angle must be set using the enclosure rear rigging arm pin. The automatic locking system must remain unloaded.
The K3-CHARIOT rear rigging arm must be at its -15° site angle position.
K3 owner's manual (EN) version 1.0 31
