Rigging procedures
Rigging pr
ocedures
Preparing a block of four K3
T
ype of deployment
stacked array
Rigging accessory
K3-CHARIOT
Min number of operators
2
Procedure
1.

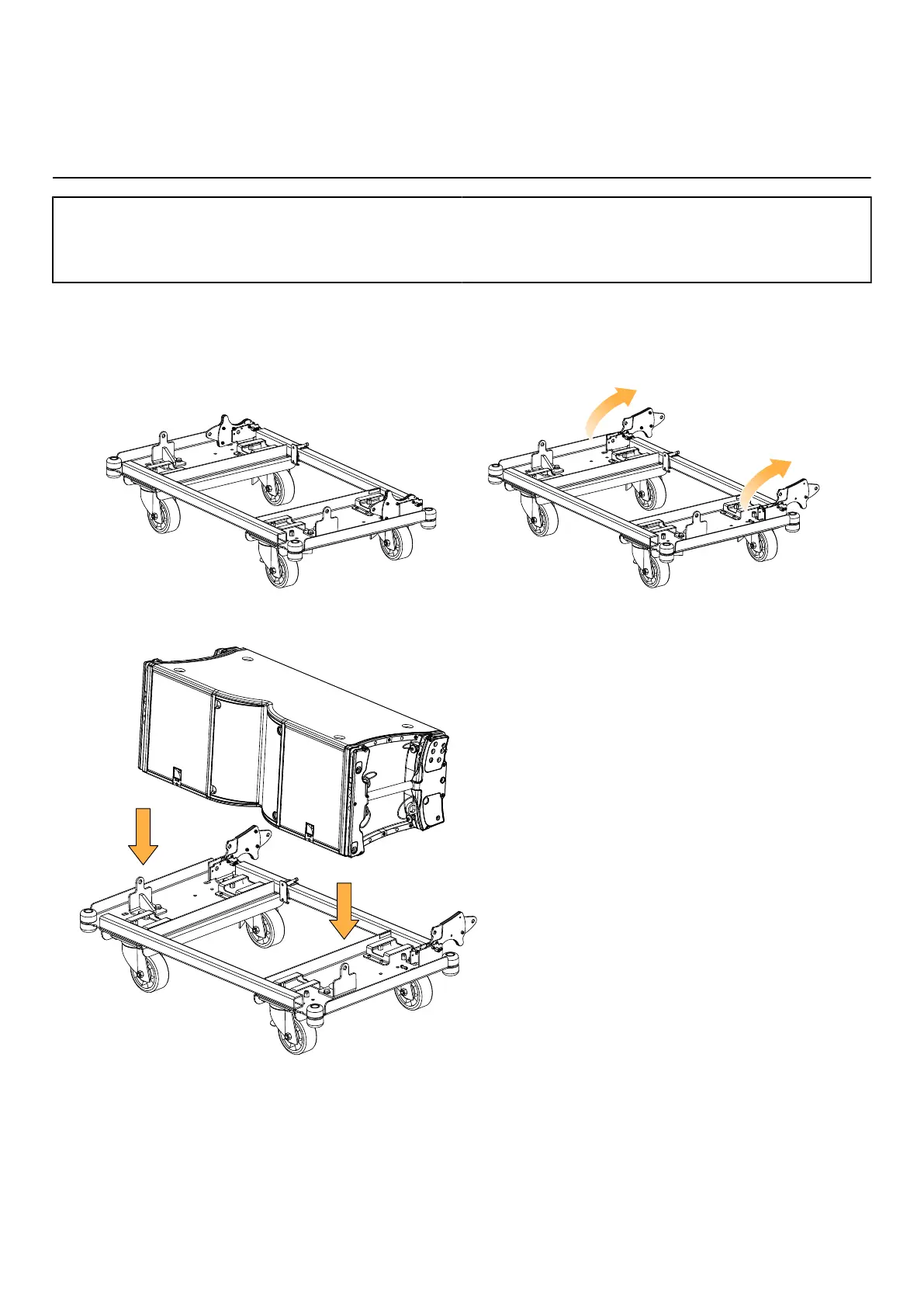

Prepare K3-CHARIOT.
Fully rotate the rear rigging arms of K3-CHARIOT to attach a rst K3.
2.
Position a rst K3 on K3-CHARIOT.
K3
owner's
manual
(EN)
version
1.0
61
60
62
