Rigging procedures
3.

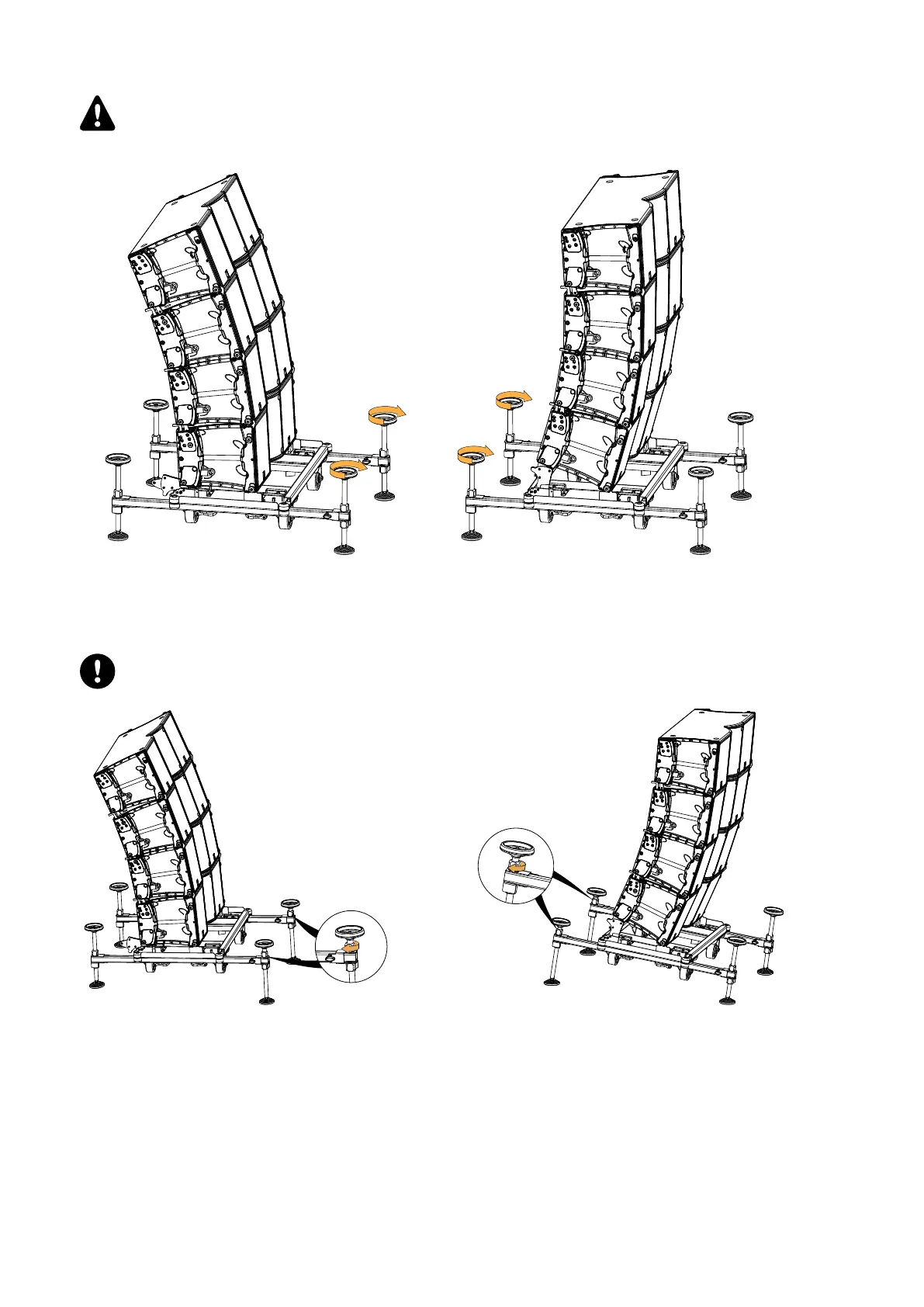

Adjust the site angle:
Tipping hazard
Adjust either the stabilizer at the front or at the back of the stack. Do not adjust both the front and back of the
stack.
With the front screw jacks for a positive site angle.
With the back screw jacks
for a negative site angle.
4.
T
ighten the front or back bolts depending on the site angle.
T
ighten the bolt by hand only
.
K3
owner's
manual
(EN)
version
1.0
93
92
94
Table of Contents
Table of Contents
3
Safety
6
Introduction
8
K3 Long Throw Line Source
8
How to Use this Manual
9
System Components
10
Loudspeaker Cables
11
Rigging Elements
13
Electro-Acoustical Description
14
Directivity
14
Adjustable Ns
14
Directivity
17
Preset Description
18
Connectors
19
Rigging System Description
21
Ks28
22
Rigging Elements for Own Arrays
23
K3-Bump
23
K3-Bar
24
K3-Rigbar
25
Karadownk3
26
Delta 1.5T
27
La-Rakmount
28
Rigging Elements for Stacked Arrays
29
K2-Jack
29
K3-Tilt
30
Ks28-Outrig
30
Storage and Handling Elements
31
K3-Chariot
31
K3-Chariotcov
32
K3-Chariotlid
33
K3-Bumpflight
34
Mechanical Safety
35
Loudspeaker ConGurations
37
Line Source
37
Line Source with Low-Frequency Element
38
Additional DownLl Element
40
Kara / Kara II
40
Inspection and Preventive Maintenance
41
How to Do Preventive Maintenance
41
Rigging Part Inspection
42
Mechanical System Overview
42
K3 Array with K3-BUMP and K3-BAR
43
K3 Array with K3-BUMP and KARADOWNK3
44
K3 Array with K3-RIGBAR as Pullback
45
K3 Array with K3-BAR, LA-RAKMOUNT, and K3-BUMP
46
K3 Array with K3-CHARIOT and K2-JACK
47
K3 Stacked on K3-TILT and KS28 with KS28-OUTRIG
48
K3 Stacked on K3-CHARIOT with K3-CHARIOTCOV and K3-CHARIOTLID
49
Inspection References
50
Rigging Check
53
Acoustical Check
57
Rigging Procedures
61
Preparing a Block of Four K3
61
Pre-Setting the Inter-Enclosure Angles
65
Flying
67
Flying an Array with K3-BUMP and K3-BAR
67
Adding a Pullback with K3-RIGBAR
73
Rigging a Kara II DownLl Array under a K3 Array with KARADOWNK3
76
Securing LA-RAK II AVB on LA-RAKMOUNT
80
Stacking
83
Stacking K3 on KS28 with K3-TILT
83
Attaching K2-JACK Stabilizers to K3-CHARIOT
89
Adjusting the K3-CHARIOT Site Angle
92
Transporting
94
Stacking Multiple K3-CHARIOTLID on K3-CHARIOT
94
Mounting K3-CHARIOTLID to K3
96
