L-Acoustics K1 User Manual

Corrective maintenance
Disassembly and Reassembly procedures
D/R - Grill
Tools
• torque screwdriver
• 4 mm hex bit
Repair kit
KR HPPH154 - Kit HP PH154 Speaker 15'' - 8 ohms, or
KR HPPH62 - Kit HP PH62 Speaker 6.5" - 8 ohms
×2 ×2
S100155 S158
M5×25 hex plain washer Ø5mm
Prerequisite
The enclosure is placed on its top.

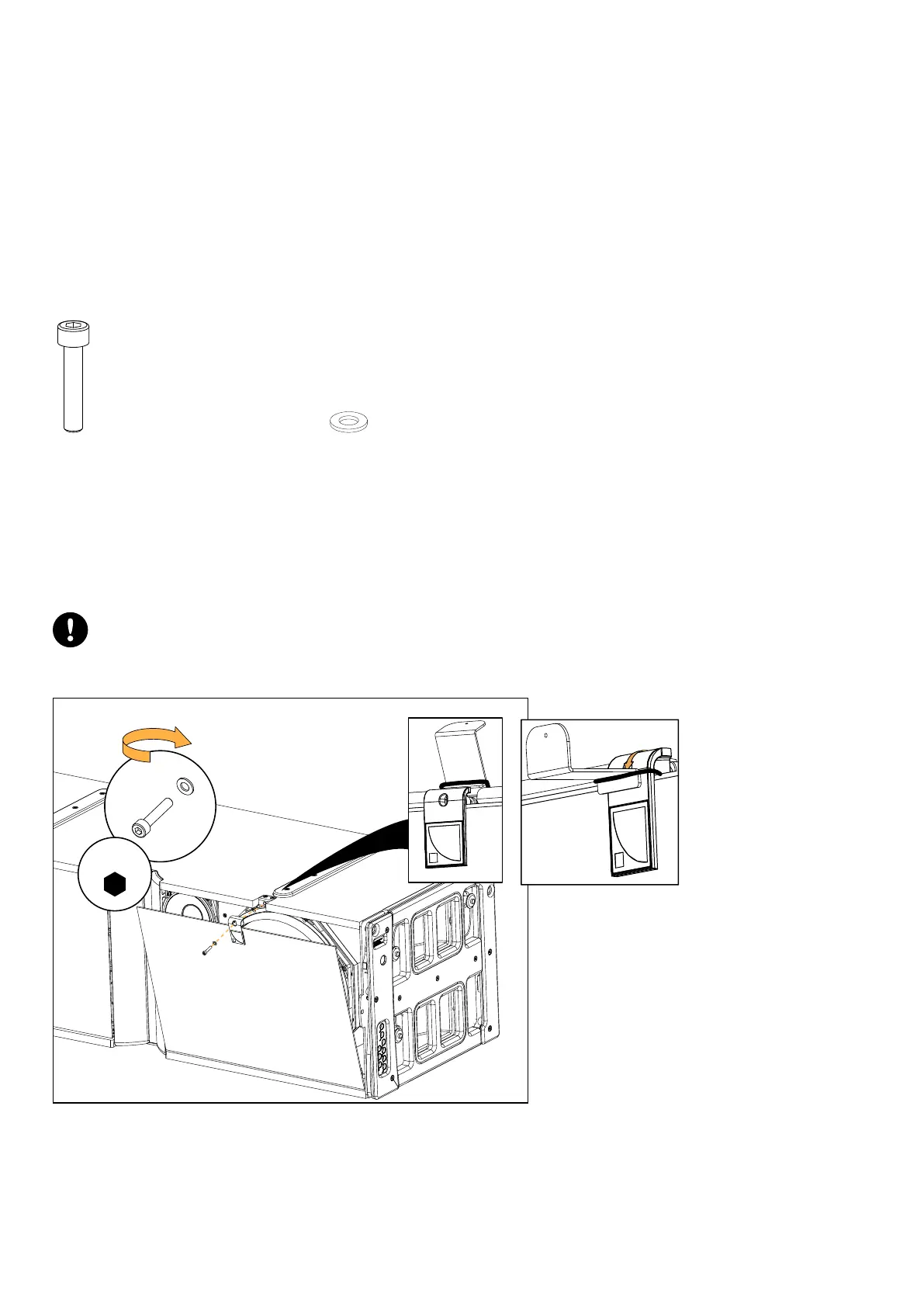

Exploded view
For safety reasons, always use the new screws and spare parts provided in the KR.
If no new screws are available, use blue threadlocker.
Use a at tool to pull the O-ring over the logo.
x1
3 N.m
4 mm
K1 user manual (EN) version 6.0 27

L-Acoustics K1 Specifications

General

Frequency Response	35 Hz - 20 kHz
Nominal Impedance	8 ohms
Enclosure Material	Baltic birch plywood
Components	2 x 15" LF, 4 x 6.5" MF, 3 x 3" HF
Amplification	External
Connectors	2 x NL4
