Laars MFTHW199 - Names of Components

LAARS Heating Systems
Page 8

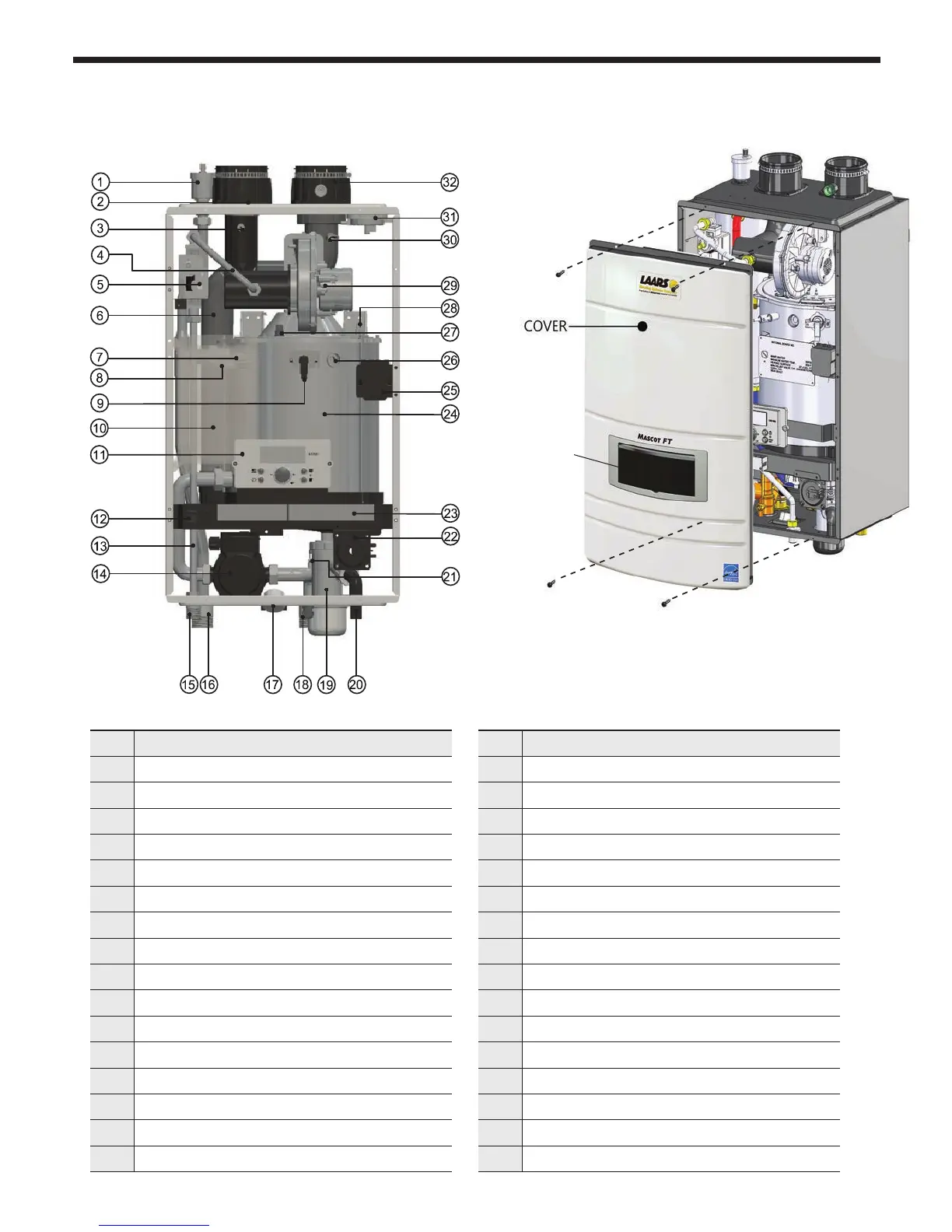

2.4 Names of Components
MFTHW
80/100
Heating only boiler
NO Name of Component
1
Air Vent (air eliminator)
2 Air Intake Collar
3 Air / Gas Mixing Pipe
4 Gas Inlet Pipe 2
5 Gas Valve
6 Exhaust Duct
7 Low Water Temperature Sensor
8 OP Sensor
9 Flame Detecting Sensor
10 Main PCB
11 Control Display
12 Manual ON/OFF Power Switch
13 Gas Inlet Pipe 1
14 ‘CH’ Internal Pump
15 Gas Inlet Adapter
16 ‘CH’ Supply Adapter
NO Name of Component
17
CH Pressure Gauge
18 ‘CH’ Return Adapter
19 Condensate Trap
20 Condensate Adapter
21 CH Return Temperature Sensor
22 Condensate Air Pressure Switch
23 Terminal Block
24 Heat Exchanger
25 Ignition Transformer
26 Sight Glass
27 Burner Overheat Switch
28 Igniter
29 BLDC Fan (blower)
30 Exhaust Temperature Sensor
31 Air Pressure Sensor
32 Vent Pipe Collar
4 SCREWS
CONTROL
DISPLAY COVER
(HINGES UPW
ARD)
To remove the cover, unthread the 4 phillips head screws.
Keep the screws in a safe place for re-application of cover.
This is typical for all models of the Mascot FT.
