Heat Exchanger Parts
(199 MBH)
No Description Part Number
2
O-Ring P7 FT1601
3
O-Ring P22 FT1644
4
0.3" Packing FT1060
5
3/4" Packing FT1646
6
1” Packing FT1691
B-1
M3*6 PH+ M/S FT1062
B-3
M4*8 PH+ tapping FT1063
B-4
M4*8 TH+ tapping FT1614
B-5
M4*8 TH+ M/S FT1520
B-7
M4*10 TH+ tapping FT1719
B-8
M4*10 TH+ M/S FT1064
B-11
M4*12 TH+ M/S FT1534
B-12
M4*14 PH+ tapping FT1065
31
Exhaust overheat sensor FT1307
32
Exhaust sensor Bracket FT1306
33
Exhaust pipe FT1756
34
Exhaust pipe packing (lower) FT1757
35
Heat exchanger ass'y FT1758
35-1

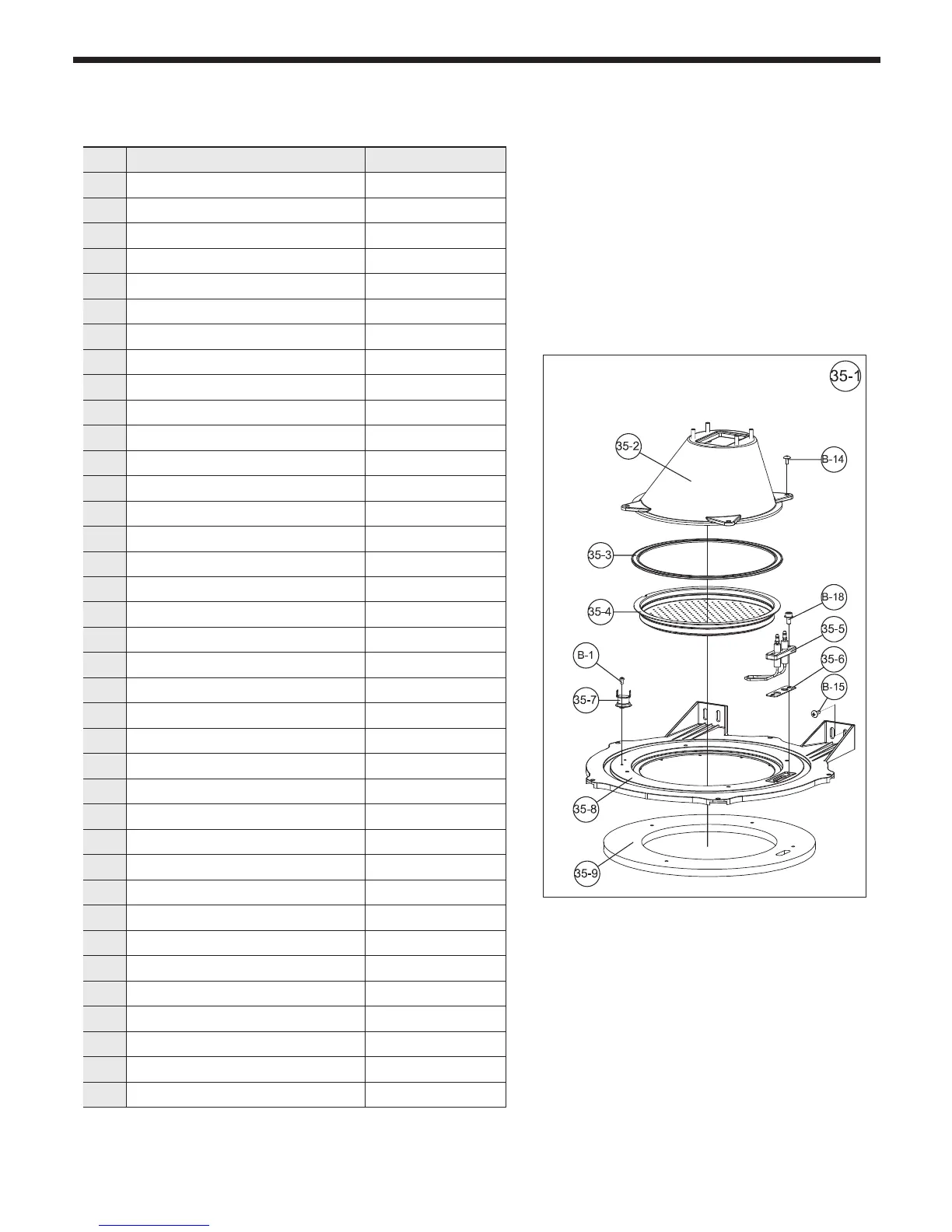

Burner Ass'y FT1759
35-2
Burner upper case FT1760
35-3
Burner packing FT1761
35-4
Burner FT1762
35-5
Ignitor FT1763
35-6
Ignitor gasket FT1316
35-7
overheat sensor FT1310
35-8
Burner down case FT1764
36
Temperature sensor FT1324
37
Low level sensor FT1325
38
Flame detector bracket FT1669
39
Flame detector sensor FT1327
40
Flame detector sensor cover FT1069
41
CH Outlet pipe FT1765
42
CH Return pipe 1 FT1766
43
Pump FT1767
44
CH return sensor FT1635
45
CH Return pipe 2 FT1768
46
Condensate trap ass'y FT1783
