D SERIES Lake Quick Start Guide rev 3.0.4
11. Product overview

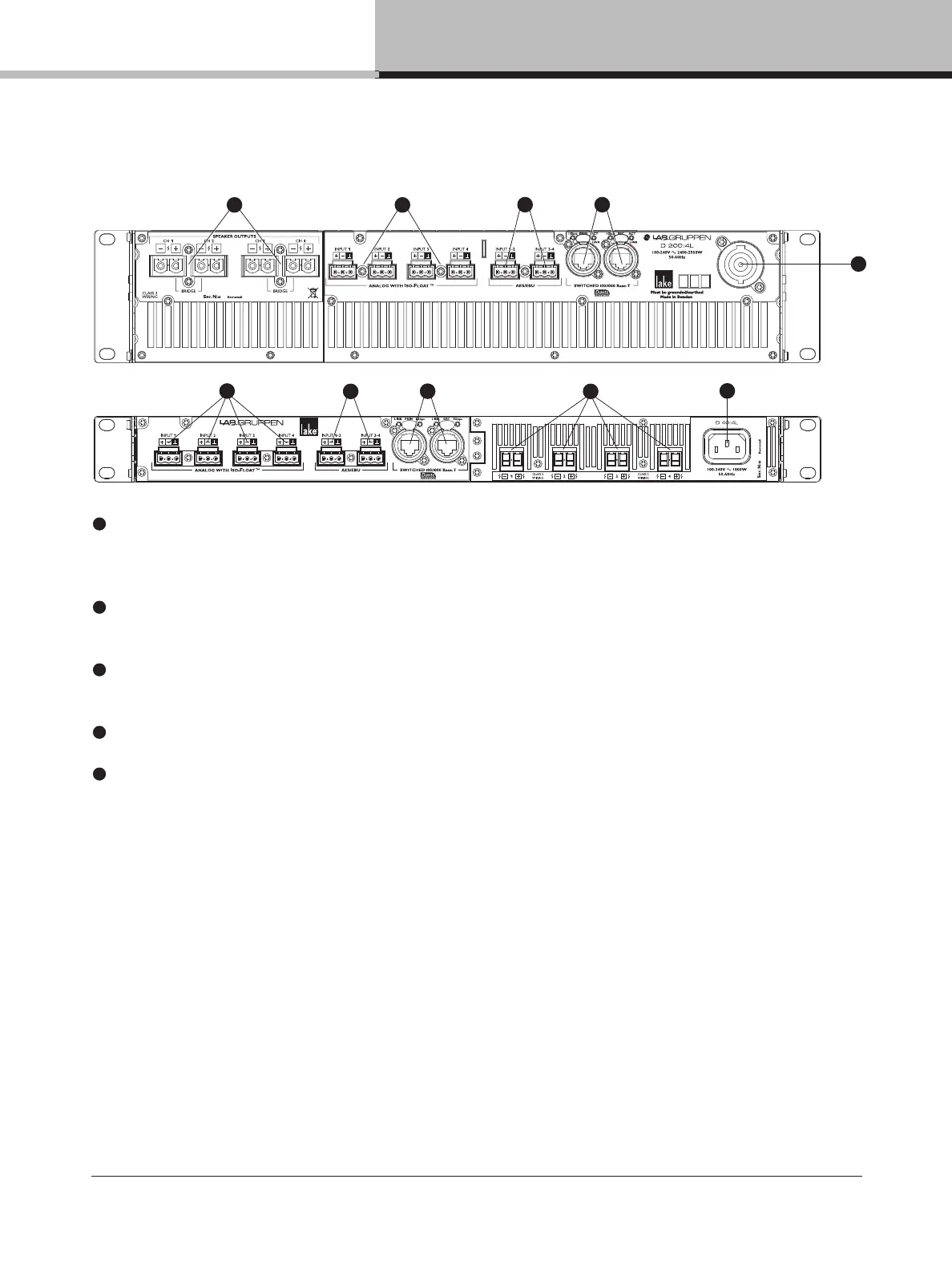

11.3. Rear panel
1
Amplifier Outputs - The amplifier output connectors are sturdy terminal block connectors. See Technical
Specifications (Section 15) for connector rating. Channels are located from left to right. Each channel has a clearly
marked hot (+) and cold (-) terminal
2
Analog Inputs - Analog inputs are available on terminal block connectors with clearly marked hot (+), cold (-)
and ground terminals
3
AES3 Inputs - AES3 inputs are available on terminal block connectors with clearly marked hot (+), cold (-)
and ground terminals
4
RJ-45 Ethernet connectors for control, Dante and AES67 digital audio network
5
Mains connector - Detachable Neutrik powerCON (for D 200, D 120 and D 80) or locking IEC connector
(for D 40, D 20 and D 10). See Technical Specifications (Section 15) for connector rating
