T= `lkkb`qflkp=
TKN= fåéìí=ÅçååÉÅíáçåë=
TKNKN= _~ä~åÅÉÇ=áå éìíë=

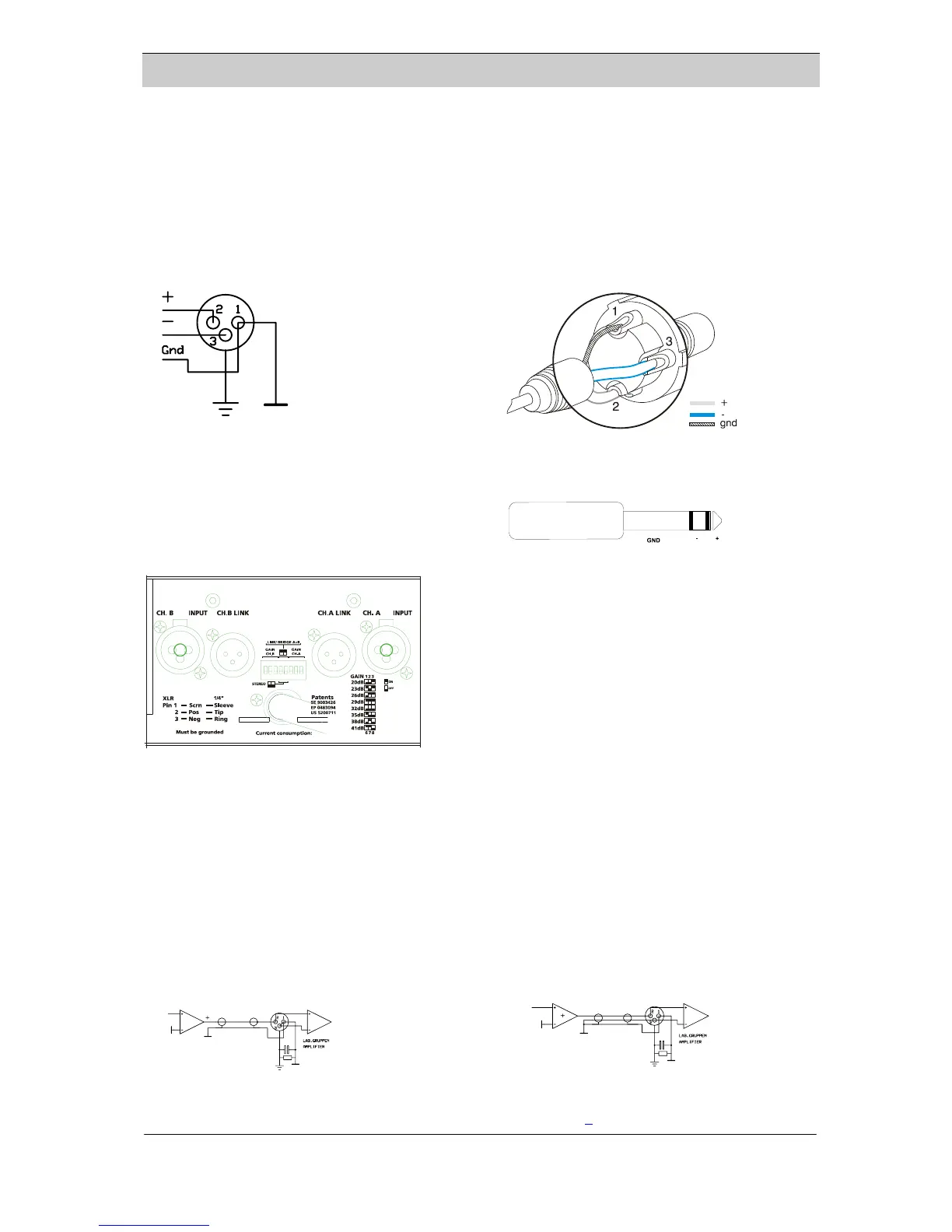

The XLR input connectors are electronically balanced, and wired according to the IEC 268 (pin 2 =
“hot”), and wired in the following way:
PIN 1 GROUND/SHIELD
PIN 2 HOT (+)
PIN 3 COLD (-)
Figure 4: XLR input connector
Figure 5: XLR balanced
Within the Neutrik® Combojack there is a ¼”(6.3mm) phone jack wired in parallel with the XLR.
TIP HOT
RING COLD
SLEEVE GROUND/SHIELD
Figure 6: ¼” TRS plug
The input impedance is high enough (20 kohms balanced) to
allow ”daisy-chaining”, or multiple parallel input
connections. The headroom of the input circuits is also great
enough to accept the maximum output level from virtually
any low-level signal source. Balanced signals are less
sensitive to AC hum and radio interference. The source
impedance should be less than 1 kohms to avoid high
frequency loss in long cables.
To daisy-chain amplifiers, use the XLR-male connector provided on each channel, labeled “Link”. They
are connected in parallel with the Neutrik® Combojack on each input.
TKNKO= råÄ~ä~åÅÉÇ=áåéìíë=
To connect an unbalanced input source, connect pins 1 and 3 in the cable’s XLR plug (ring and sleeve in a
TRS plug). If you leave a pin disconnected, you will lose 6dB.
A better method for using unbalanced sources is shown in figure 8. This is similar to the connection for
balanced lines, but pin 3 is connected to the shield at the source end of the cable. The hum and noise
rejection for the cable is equivalent to that of a balanced line. To minimize hum in the audio signal, use
balanced inputs whenever possible.
Figure 7: Unbalanced line connection
Figure 8: Balanced line with unbalanced equipment
For 2-channel (stereo) operation, use both channels A and B. For tandem stereo or bridged mono
operation, use only one of the inputs. See “Operation Modes” (page 7
) for more details.
i~ÄKÖêìééÉå== = = = = = ========================NP
rëÉê=j~åì~ä===Ñm=PQMM======sÉêëáçå=NKN========OMMPJNMJMO=
