NEPTIS/LE

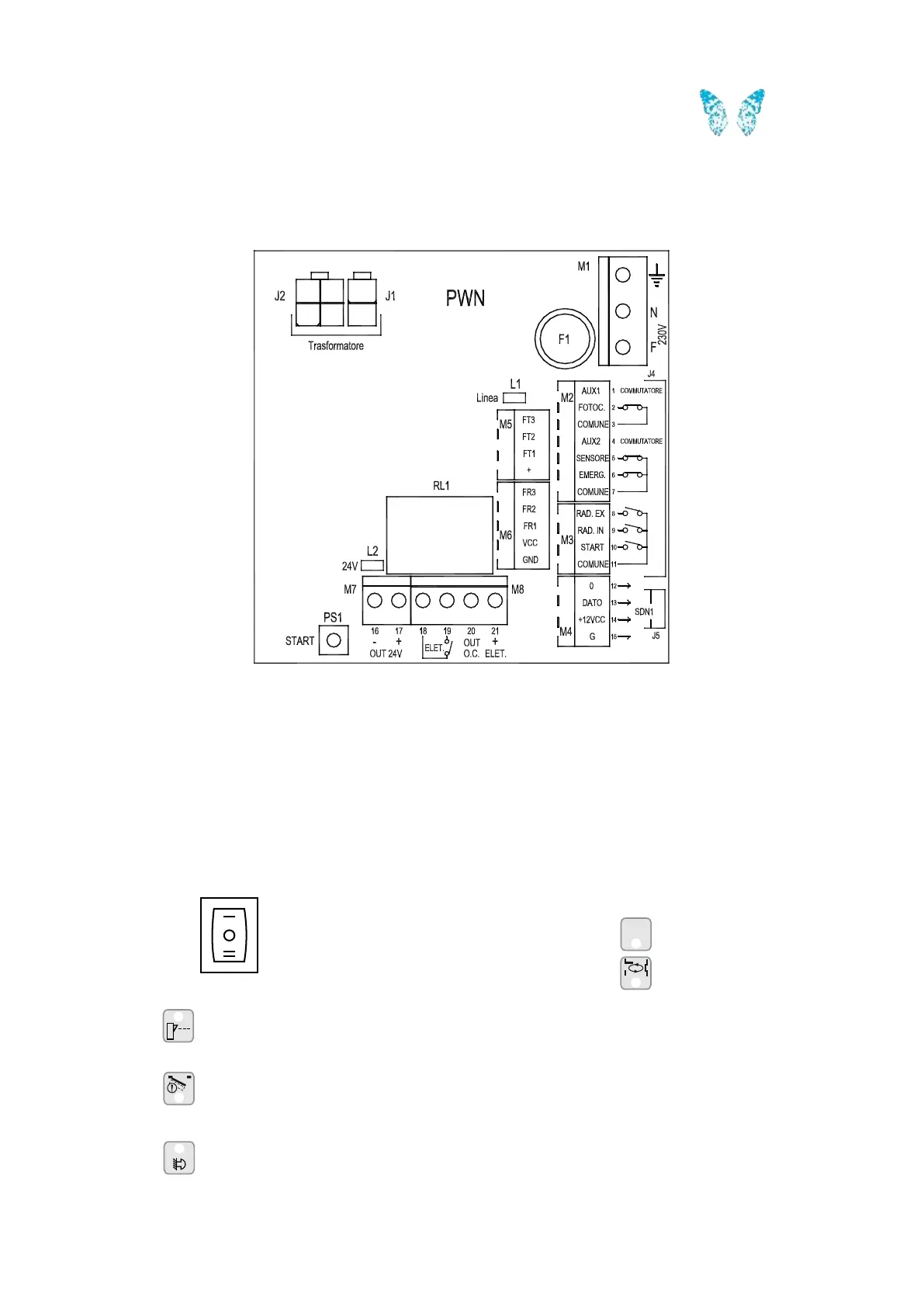

1) ELECTRICAL CONNECTIONS
16
AUXAUX
1
! TERMINAL BOARD M1
230 V.a.c. power supply: phase wire to terminal F, neutral wire to terminal N + ground connection.
The line is protected by the 5A fuse F1.
! TERMINAL BOARD M2
Terminals 1-3-4 = connection of the FUNCTION SELECTOR switch installed on the
side of the device.
central contact on common terminal 3;
contact made in position | on the AUX1 terminal;
contact made in position || on the AUX2 terminal;
Terminals 2-3 = N.C. input of the safety PHOTOCELL.
Activates during the closing phase and reverses the door's direction.
Terminals 5-7 = N.C. input of the opening safety SENSOR mod. SSS1.
The door stops if an obstruction or person is detected, and only starts opening
again when the sensor has been released.
Terminals 6-7 = EMERGENCY N.C. input. Opens the door in any condition.
Can also operate in the stepping mode (see sect. 7).
Fig.1
