36 CHAPTER 3
Operating the Expert(t) 2000
TM

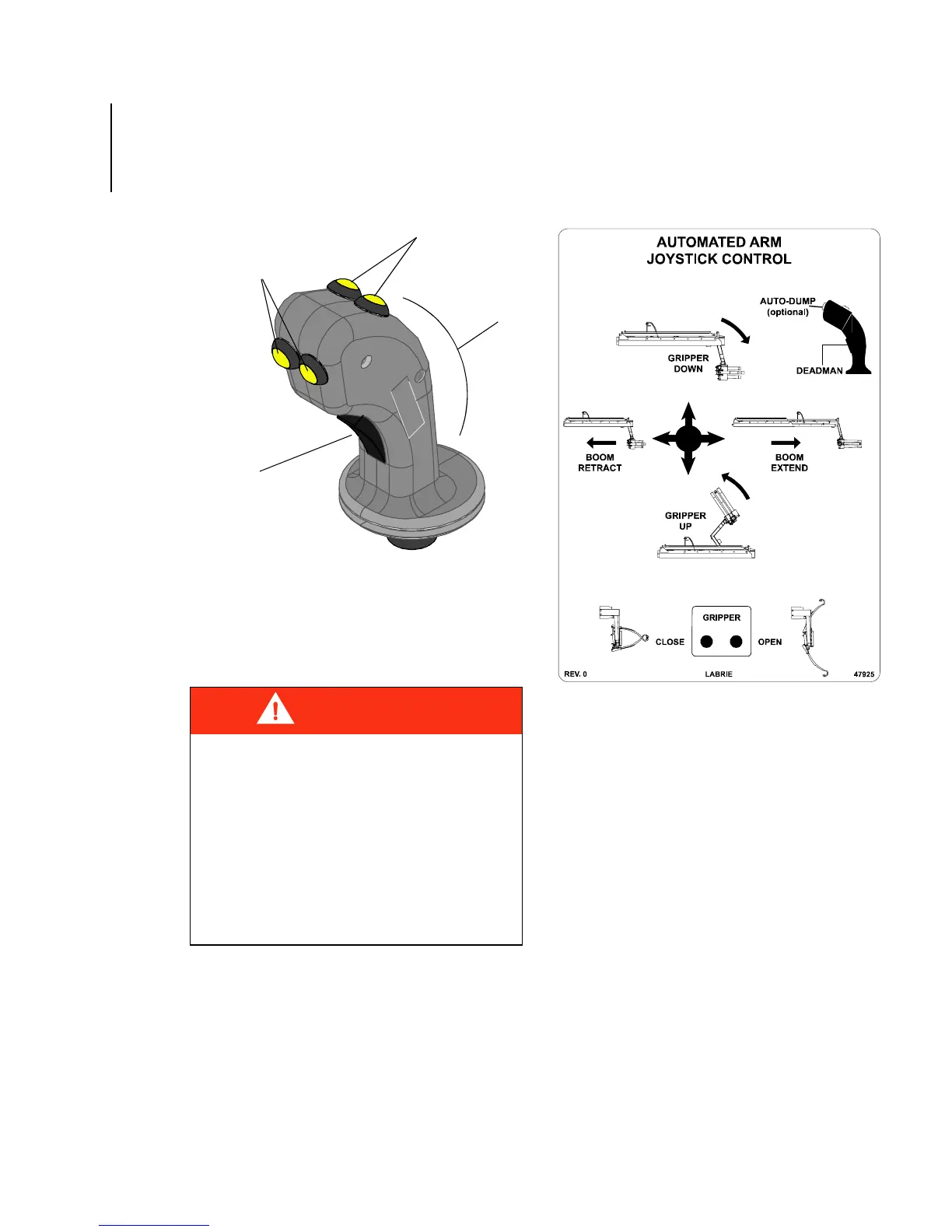

Figure 21. Helping Hand
TM
joystick
4. Extend the arm to reach the cart.
Figure 22. Helping Hand
TM
joystick
functions
5. Close the gripper.
6. Raise the arm with the roller cart
about two feet from the ground.
Make sure not to open the
gripper while lifting the roller cart.
DANGER
ENSURE TOTAL CLEARANCE
AROUND
THE VEHICLE AT ALL
TIMES. WHEN USING THE
AUTOMATED
ARM,
DOUBLE-CHECK MIRRORS AND
SURROUNDINGS
FOR EXTRA
SAFETY
.
Gripper
functions
buttons
Deadman
switch
Handle
Auto-dump
T
M
control
buttons
(optional)
