LaCie RUGGED RAID - Page 17

Rugged RAID User Manual 17
USB 3.0

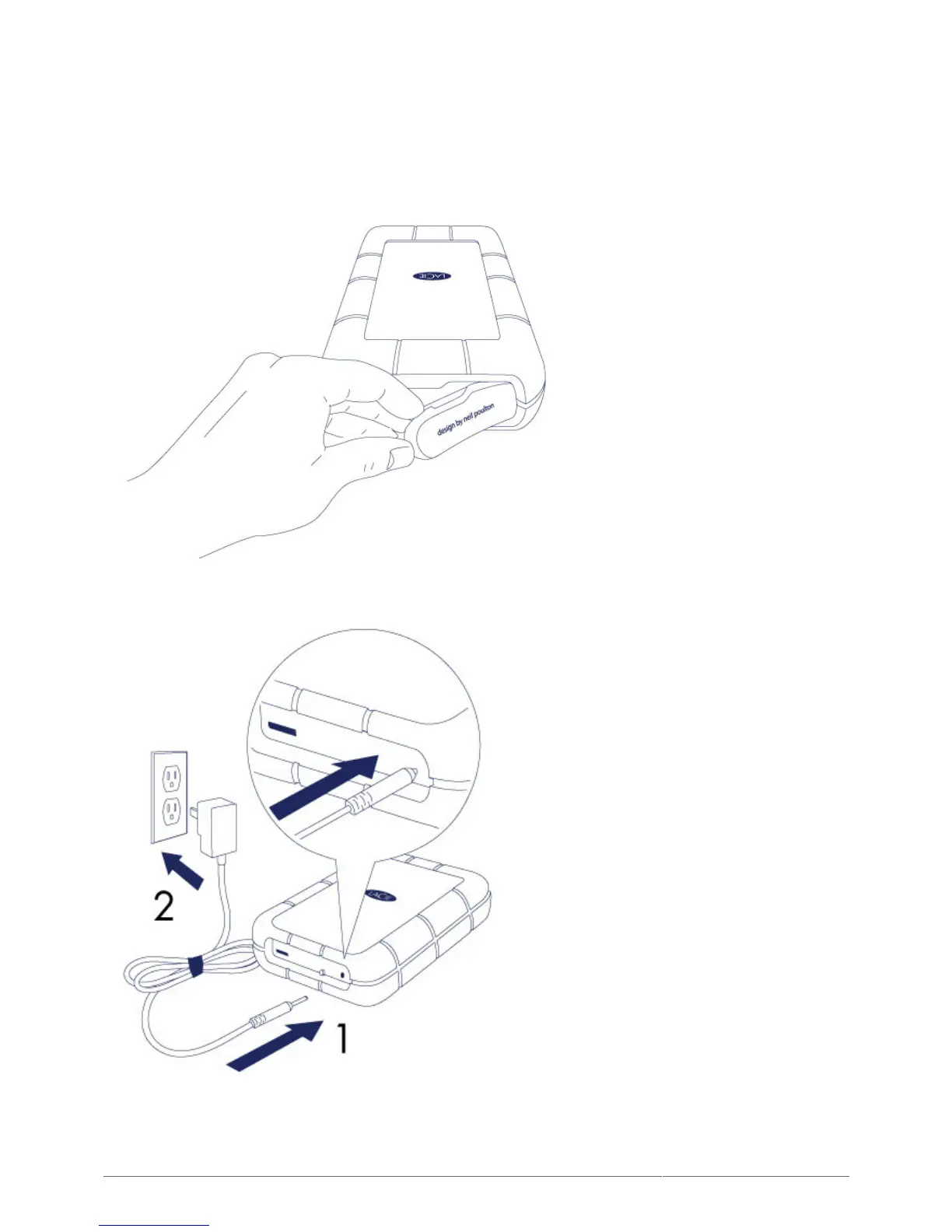

Remove the cover by placing your index finger on its left edge and gently prying it open. Use caution since1.
the Thunderbolt cable is held by a fastener on the removable cover.
Connect the included power cable in the following order:2.
The Rugged RAID.1.
An active outlet.2.
Use the included USB 3.0 cable to connect the Rugged RAID in the following order:3.
