Version 3.11 | HPI Combi Flow User Guide | 13www.lafert.com

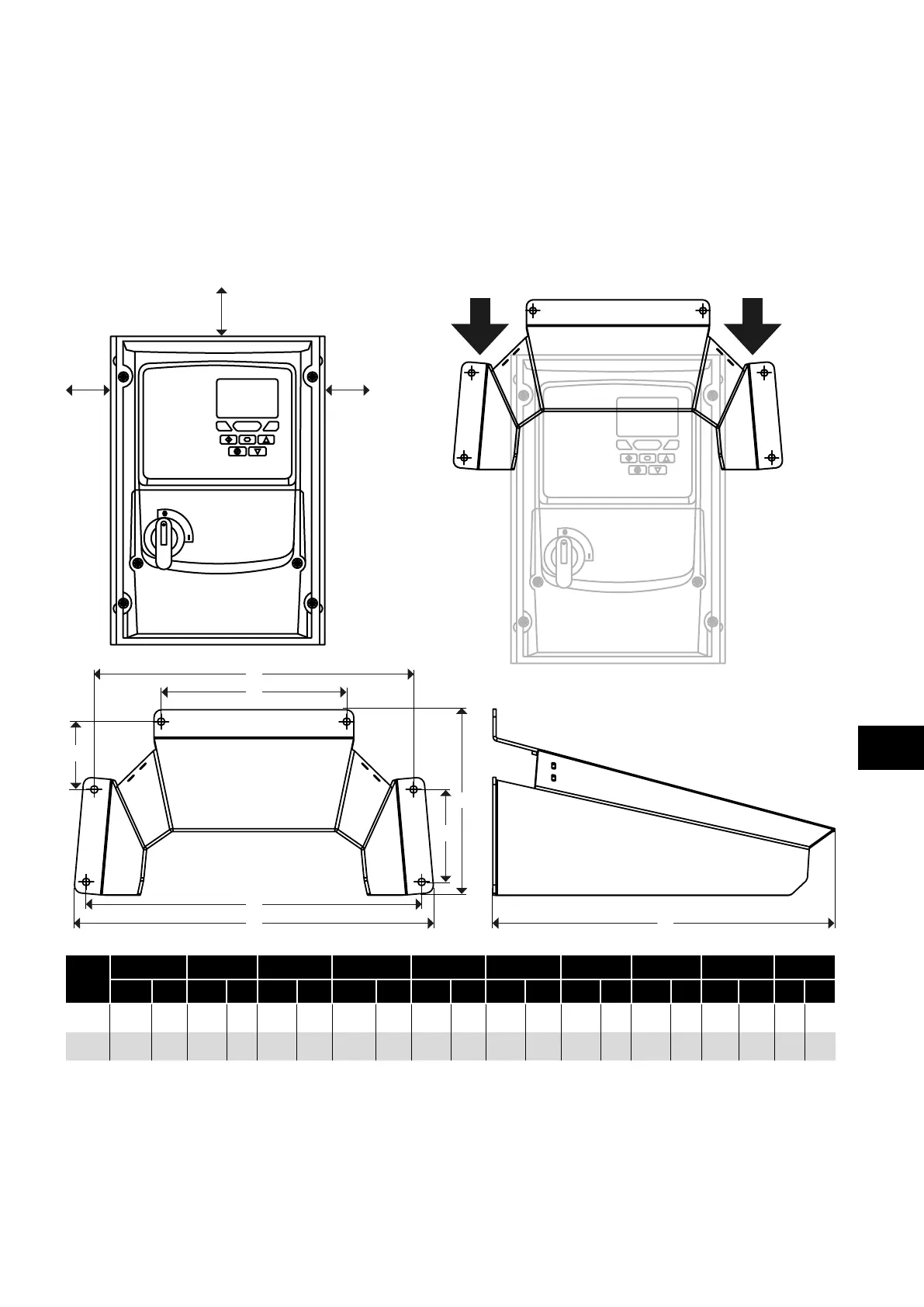

3.9. Installing the IP66 Sun Shade
An IP66 Sun Shade should always be fitted (in accordance with these instructions) where the product is installed outdoors, and there
is a possibility for the display of the drive to come into the path of direct sunlight or where there is possibility of snow, ice, or other
particles accumulating on the top of the drive.
Recommended clearance before installation
Ensure you have at least 30mm either side and 100mm above
the drive to allow sufficient space for installation of the IP66 Sun
Shade.
30mm 30mm
100mm
Installing the IP66 Sun Shade
I
nstall the HP Combi Flow following the instructions in the User
Guide. Place
the IP66 Sun Shade over the HP Combi Flow and
slide down until it slots on top of the heat sink, then fix in place
using the mounting holes.
A H
D
C
E
F
G
B
Drive
Size
A B C D E F G H Hole Size Weight
mm in mm in mm in mm in mm in mm in mm in mm in mm in Kg Ib
2 275.5 10.85 13 9 . 7 5.5 259.6 10.22 247.4 9. 74 140.0 5.51 69.7 2 . 74 48.9 1.93 285.0 11 . 2 4.8 0 .19 1.5 3.3
3 & 4 340.7 13 . 41 169. 7 6.68 324.7 12 . 78 307.3 12 .1 180.0 7.09 99.6 3.92 48.9 1.93 355.0 14.0 4.8 0 .19 2.5 5.5
3
Mechanical Installation
