2. General Information and Ratings
2.1. Identifying the Drive by Model Number

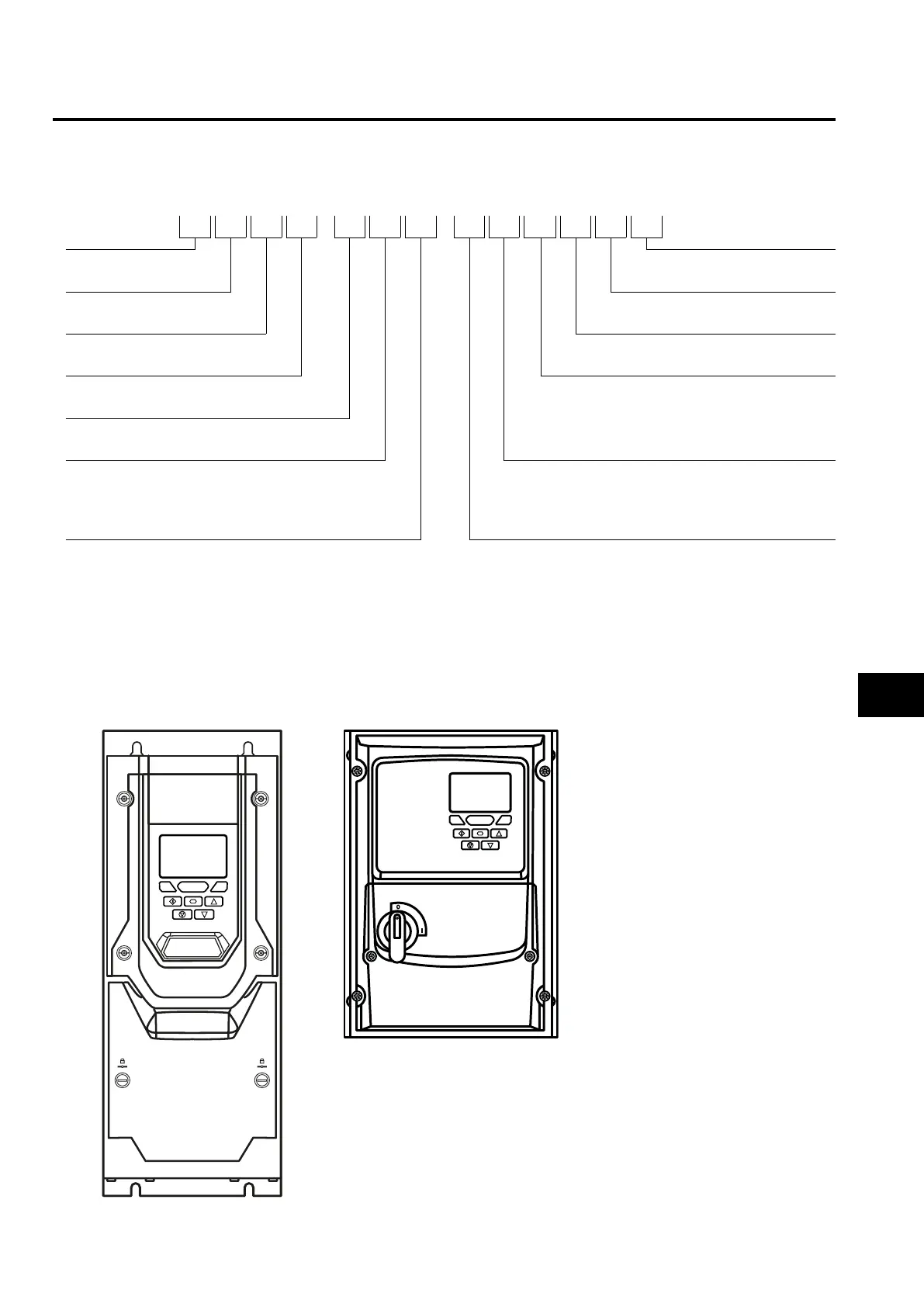

Each drive can be identified by its model number, shown below. The model number is on the shipping label and the drive nameplate.
The model number includes the drive and factory fitted options.
X C F 3 - 2 4 B - F 0 A M X X
Drive Cable Entry
X: N/A
Product
C: Combi
Lid Option
X: N/A
Family
F:Flow
Display
M: TFT
Generation
3
IP Version
A: IP66 Non-Switched
E:
IP66 With Disconnector
N: IP55 Non-Switched
Size
2, 3, 4, 5
Voltage
2: 3x200V
4: 3x400V
6: 3x600V
Brake
0: No Brake Chopper
Power
B:0.75kW
C: 1.5kW
D: 2.2kW
F: 4.0kW
G: 5.5kW
H: 7.5kW
I: 11kW
J: 15kW
K: 18.5kW
L: 22kW
M: 30kW
N: 37kW
O: 45kW
EMC Filter
0: Non-Filtered
F: Filtered
2.2. Product Rating Label Location
All HP Combi Flow models carry a rating label, which can be located as follows:
IP55 Models IP66 Models
On right hand side when viewed from the
front.
On the top surface.
