LAFERT HP Combi Flow - Mechanical Dimensions and Weight

Version 3.11 | HPI Combi Flow User Guide | 9www.lafert.com

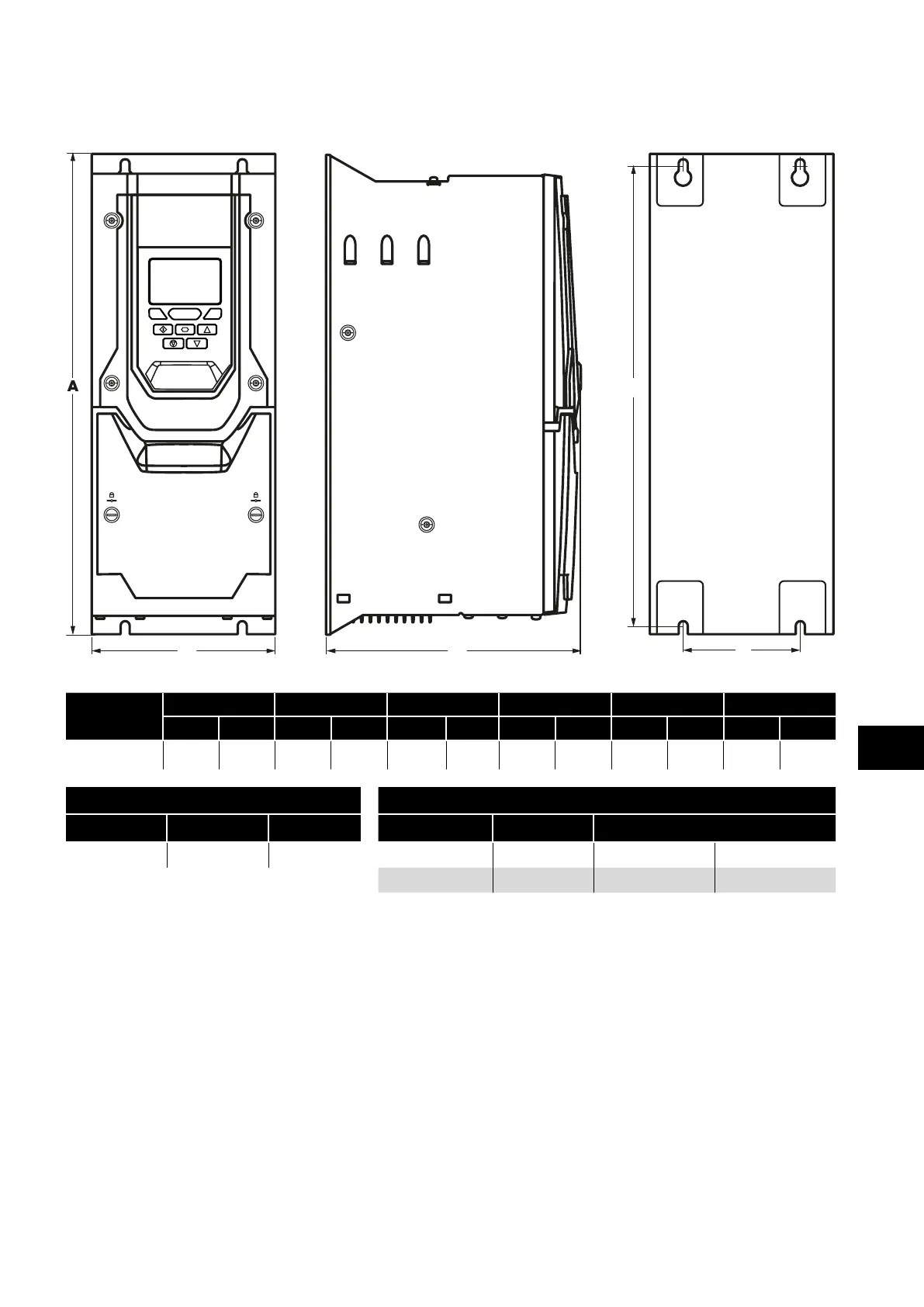

3.5. Mechanical Dimensions and Weight
3.5.1. IP55 Units
C
B
E
D
Drive Size
A B C D E Weight
mm in mm in mm in mm in mm in kg Ib
5 540 21.26 235 9.25 270 10.63 520 20.47 175 6.89 23 50.7
Mounting Bolts Tightening Torques
Frame Size Metric UNF Frame Size Required Torque
5 M8 5/16
Control Terminals All 0.5 Nm 4.5 lb-in
Power Terminals
5 4 Nm 35.5 lb-in
3
Mechanical Installation
