Lagoon 42 - Electrical Panel

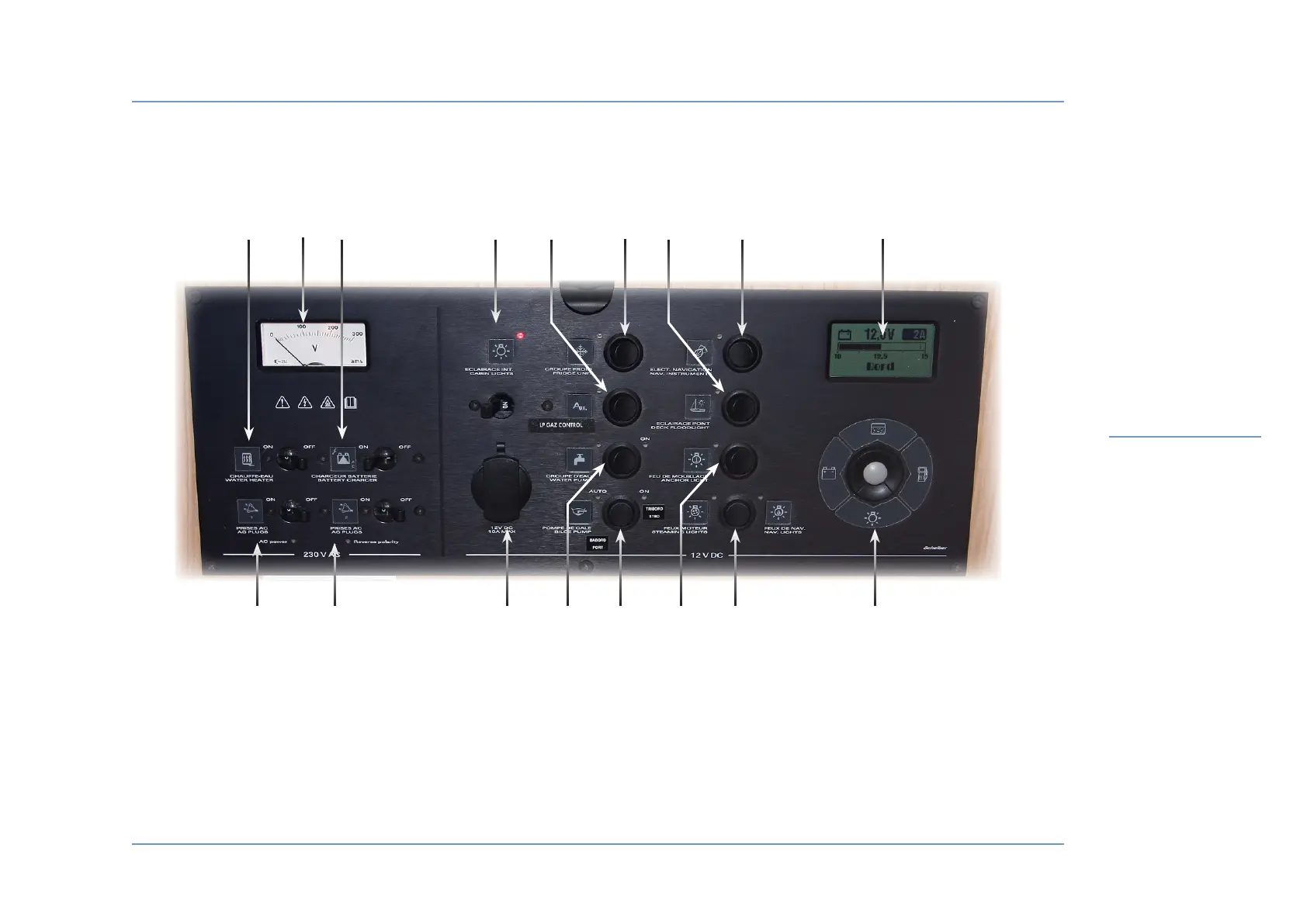

ELECTRICAL PANEL
13
1
SPECIFICATIONS
1 - Water heater 220 V power switch.
2 - Voltmeter / 220 V.
3 - Battery charger switch.
4 - Internal lighting switch.
5 - Auxiliary unit (electro valve for U.S. version).
6 - Refrigerated unit switch.
LAGOON 42
10 11
1
2
3
12
4 65
87
9
1413
1615
17
7 - Deck floodlight switch.
8 - Navigation instruments switch.
9 - LCD screen.
10 - 220 V socket switch.
11 - Line-reversing switch (US version).
12 - 12 V socket.
13 - Pressure water pump switch.
14 - Bilge pump switch.
15 - Anchorage light switch.
16 - Engine light switch.
17 - LCD screen control (fresh water / fuel gauge,
voltmeter, ammeter, battery alarm).
