Lagoon 42 - Engine Layout; Coupling Cut Outs; Engine Water Inlet Valve; Engine Controls

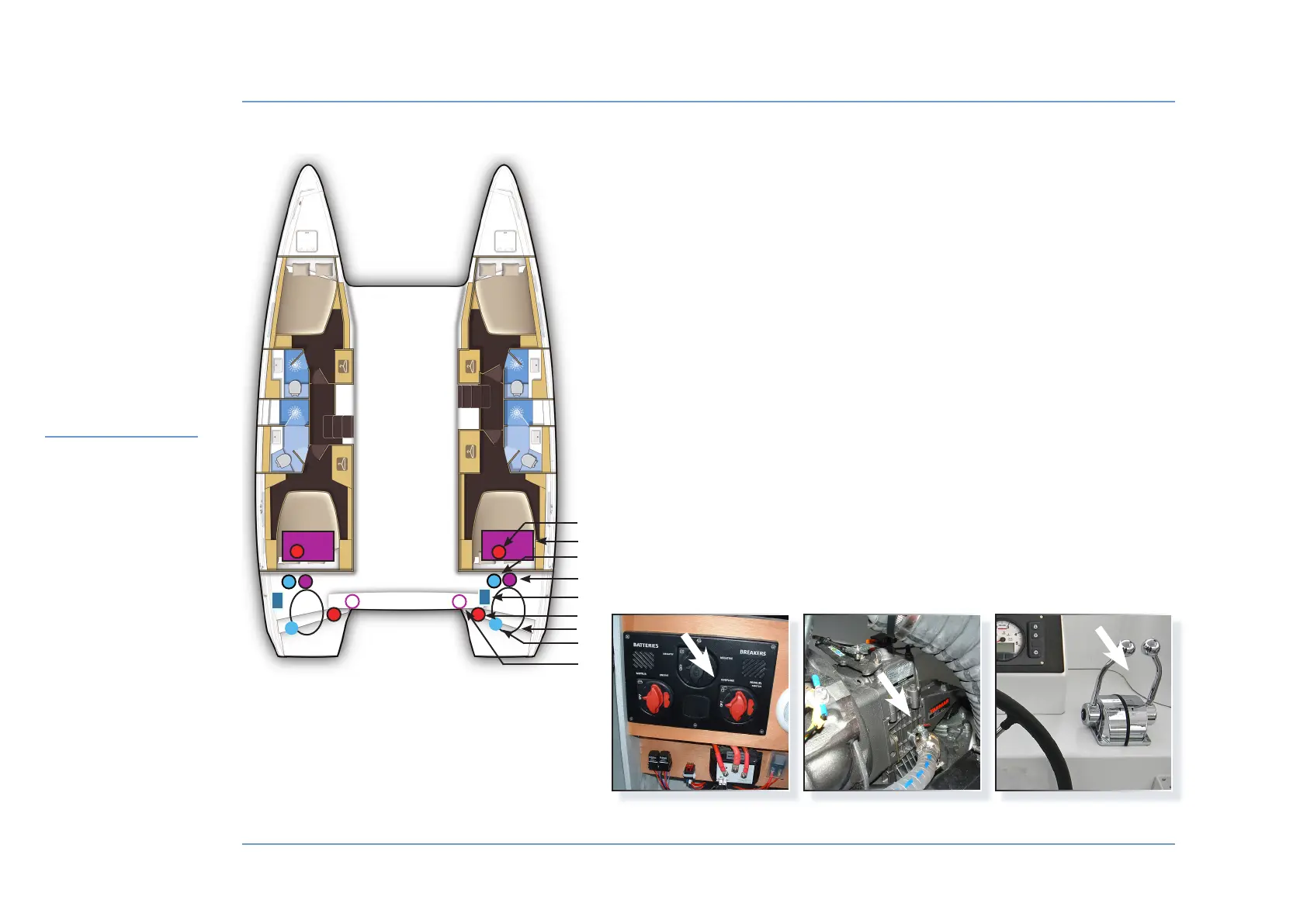

ENGINE LAYOUT
86
MOTORIZATION
LAGOON 42
Nota: the same layout can be observed
in the other version.
1 - Fuel valve.
2 - Fuel tank.
3 - Sea water filter.
4 - Fuel filter.
5 - 12 V batteries.
6 - Engine cut outs + coupling (port side).
7 - Engine.
8 - Engine water inlet valve.
9 - Fuel tank filler.
Each hull has the same components.
Nota: each valve in the boat is identified.
1
COUPLING
CUT OUTS
2
4
3
8
5
6
7
9
ENGINE WATER
INLET VALVE
ENGINE CONTROLS
