Grounding/Earthing Instructions
The oven MUST be grounded� Grounding reduces risk of
electric shock by providing a discharge wire for the electric
current if an electrical short occurs. This oven is equipped with
a cord which includes a grounding wire and grounding plug.
The plug must be plugged into an outlet that is properly
installed and grounded.
Consult a qualied electrician or service technician if grounding
instructions are not clear or if there is any doubt as to whether the oven is properly grounded.
Do not use an extension cord�
If the product power cord is too short, have a qualied electrician install a socket near the oven. This oven
should be plugged into a separate circuit with the electrical rating as provided in product specications. When
the combination oven is on a circuit with other equipment, an increase in cooking times may be required and
fuses can be blown.
External equipotential earthing terminal
Equipment has secondary earthing terminal. Terminal provides external earthing connection used in
addition to earthing prong on plug. The terminal is located on outside of oven back and marked with
symbol shown on the right
Installation:
STEP 1 - Unpack Oven
• Inspect oven for damage such as dents in door or inside oven cavity.
• Report any dents or breakage to reseller immediately.
Do not attempt to use oven if damaged.
• Remove all packing materials from oven interior.
• If oven has been stored in extremely cold area, wait a few hours before
connecting power.
STEP 2 - Place oven on counter
• Recommended countertop surface depth is 71 cm (28”).
• Do not install oven next to or above source of heat, such as pizza oven
or deep fat fryer. This could cause oven to operate incorrectly and could
shorten life of electrical parts.
• Do not block or obstruct oven lters. Allow access for cleaning.
• Install oven on level countertop surface.
• Socket should be located so that plug is accessible when oven is in
place.
STEP 3 - Oven tray installation
• Oven tray installation
1� Oven cavity must be cool to touch.
2� Place tray in oven with curved edge toward the front of cavity.
⚠
DO NOT cook food directly on oor of oven.

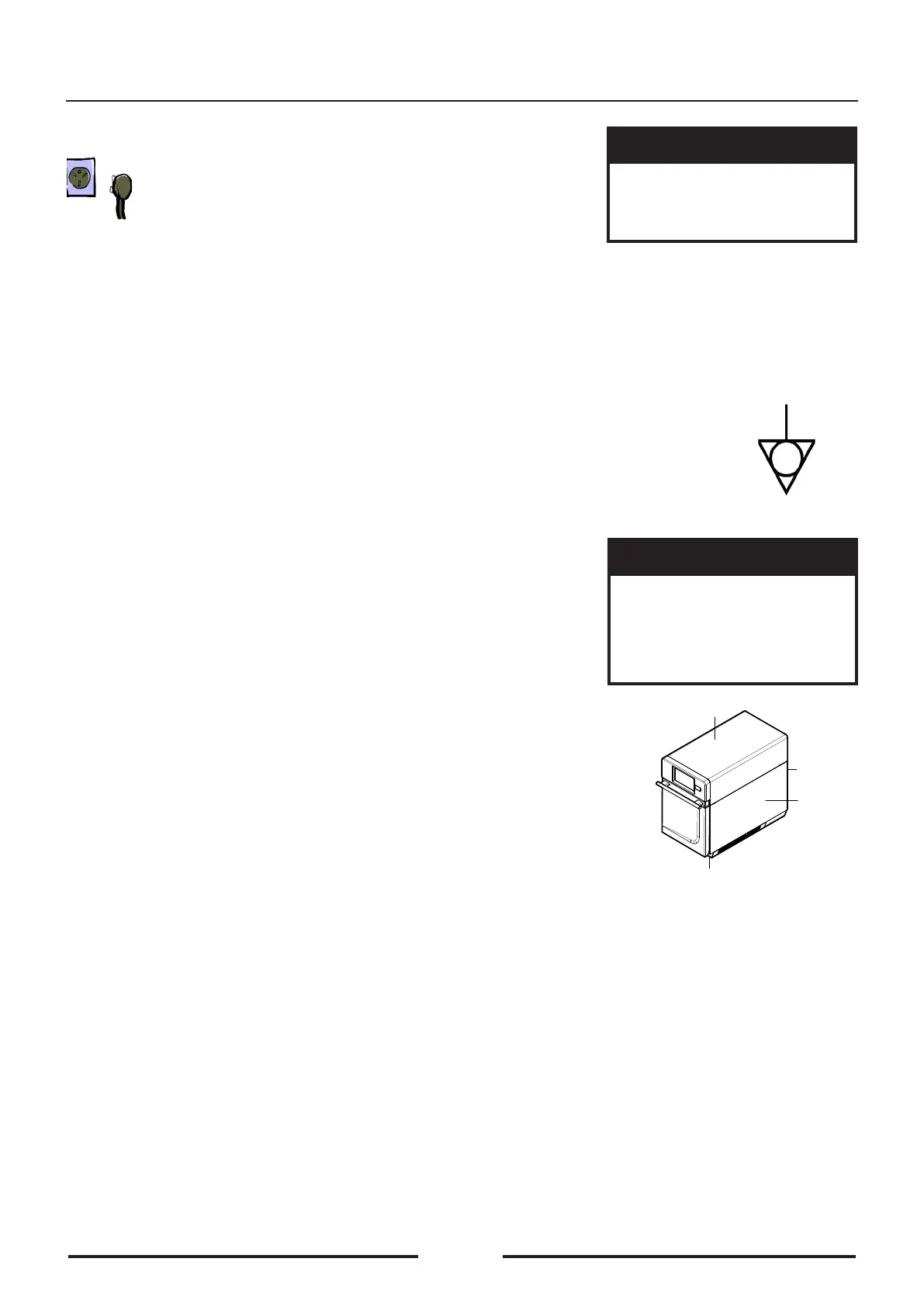

Oven clearances
A� Allow at least 2” (5.1 cm) of
clearance around top of oven.
Proper air ow around oven
cools electrical components.
With restricted air ow, oven may
not operate properly and life of
electrical parts is reduced.
B. There is no installation clearance
requirement for the back of the
oven.
C� Allow at least 1/2” (1.27 cm) of
clearance around sides of oven.
D. Install oven so oven bottom is at
least 3 feet (91.5 cm) above oor.
A
B
C
D
⚠
WARNING
Excessive weight hazard
Use two or more people to move and
install oven.
Failure to do so can result in back or
other injury
⚠
WARNING
To avoid risk of electrical shock or
death, this oven must be grounded
and plug must not be altered.
Grounding and Installation
12
90035620rev01
