lancer Sensation - Cleaning and Sanitizing Nozzle; Ice Chute Cleaning; Removal of Ice Chute for Service

16
Ice Chute Cleaning
It is recommended to perform this procedure monthly,
or more often if desired. Use the cleaning solution
described above. An alternate solution of one part
water to one part vinegar may be used to remove
water spots and calcium deposits.
NOTE
Ensure motor harness is disconnected and retain the
 augershaftkey.
NOTE
DO NOT discardtheshaftkey.
NOTE
1. Turn o󰀨 power to the dispenser.
2. Remove merchandiser.
3. Remove Splash Plate Assembly by lifting it up and out from
the dispenser face.
4. Remove clip from auger motor shaft. Remove four (4)
screws from brackets.
Following sanitization, rinse with end-use product
until there is no aftertaste. Do not use a fresh water
rinse. This is a NSF requirement. Residual sanitizing
solution left in the system creates a health hazard.
! CAUTION
Cleaning and Sanitizing Nozzles
1. Disconnect power, so as to not activate valve while
cleaning.
2. Remove nozzle by twisting counter clockwise and pulling
down.
3. Remove di󰀨user by pulling down.
4. Rinse nozzle and di󰀨user with warm water.
5. Wash nozzle and di󰀨user with cleaning solution then
immerse in sanitizing solution and let sit for fteen (15)
minutes.
6. Set nozzle and di󰀨user aside and let air dry. DO NOT rinse
with water after sanitizing.
7. Reconnect di󰀨user and nozzle.
8. Connect power.
9. Taste the drink to verify that there is no o󰀨-taste. If o󰀨-taste
is found, ush syrup system again.
5. Remove the ice chute shell.
6. Remove the ice chute assembly base by removing the four
(4) screws that attach it to the unit.
7. Prepare the Cleaning Solution described on page 13.
8. Soak the ice chute assembly in the cleaning solution.
9. Rinse and dry the ice chute assembly thoroughly.
10. Reinstall the ice chute components.
11. Reinstall merchandiser.
12. Reconnect power to the dispenser.
Removal of Ice Chute for Service
1. Disconnect power to the dispenser.
2. Remove the merchandiser.
3. Disconnect the wire harness for the auger motor.
4. Remove the C-clip from the auger shaft.
5. Support the auger motor. Remove four (4) screws securing
the auger motor mounting plate.
6. Slide the motor o󰀨 the auger shaft.
7. Remove the two (2) auger motor mounting plate support
brackets by removing the four (4) screws securing brackets
to the mounting plate.
8. Unhook the ice chute spring from the ice chute.
9. Remove the ice chute assembly from the mounting plate by
removing the screws securing it into place. Be sure to retain
the o-ring from between the ice chute assembly and the
feed-through.
10. Remove the outer ice chute from the base by pushing the
hinge tabs inward to release the outer ice chute.
A
B
C

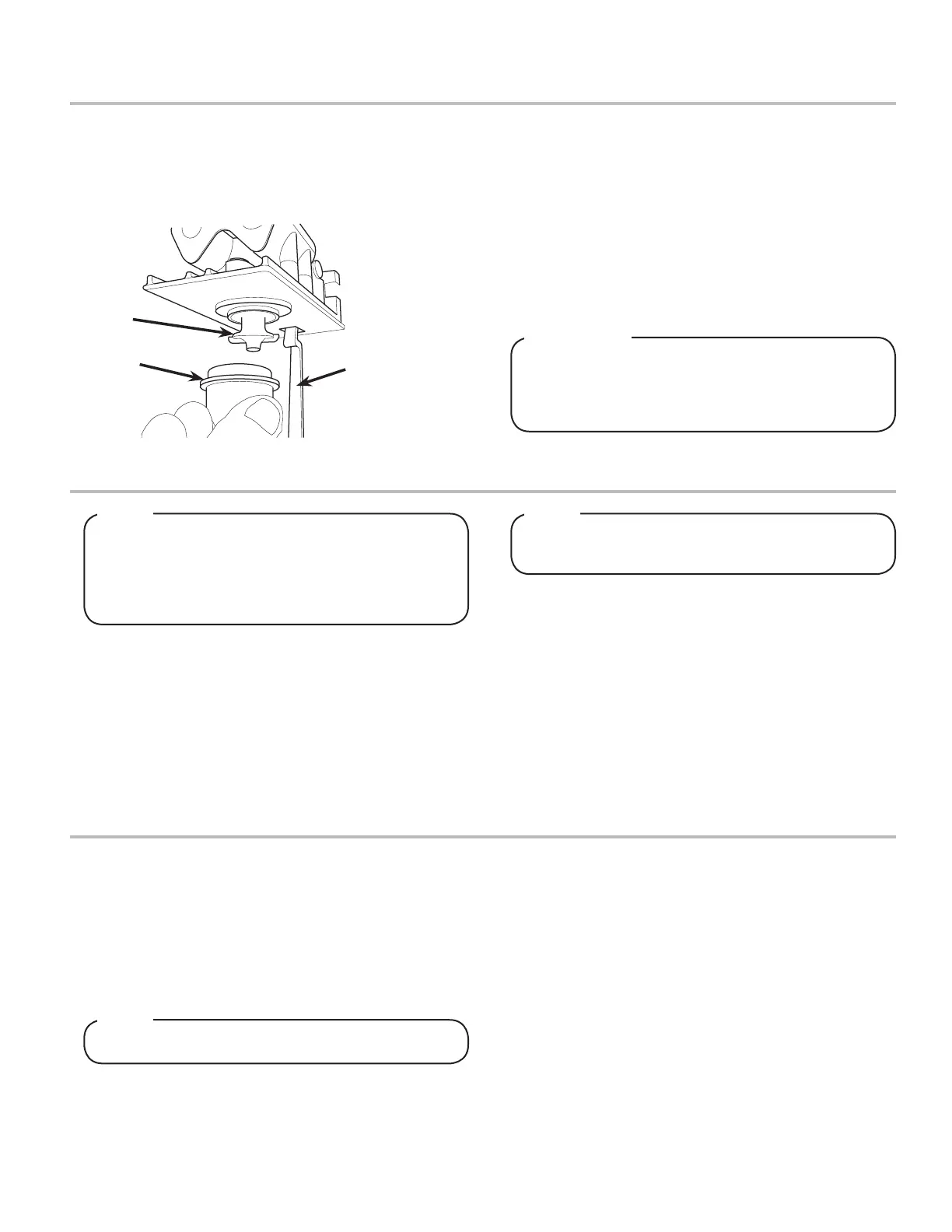

A. Nozzle
B. Diuser
C. Soda Lever
