9
Dispenser Installation
1. Install unit to counter.
2. Remove the splash plate and top cover.
3. Remove the merchandiser by removing the two (2) screws
located on the faucet plate (from left to right) above the third
(3rd) and sixth (6th) valve.
4. Remove the drip tray and cup rest.
5. Route appropriate tubing from the water source to the plain
water inlet at the front of the unit and connect tubing to inlet
using the oetiker pliers and ttings, (see Plumbing Diagram
on the front of the unit or on page 25 for reference).
DO NOT PLUG UNIT INTO GROUNDED ELECTRICAL
OUTLET AT THIS TIME. Makesurethatallwaterlines
aretightandunitisdrybeforemakinganyelectrical
connections
! WARNING
Both drain lines must be insulated with a closed cell
insulation. Insulation must cover the entire length of
thedrainhose,includingttings.Thedrainshouldbe
installed in such a manner that water does not collect
in sags or other low points, as condensation will form.
! CAUTION
Pouring hot water into drain may cause the Drain Tube
tocollapse.Allowonlylukewarmorcoldwatertoenter
Drain Tube. Pouringco󰀨eeteaandsimilarsubstances
into drain may cause the Drain Tube to become
cloggedwithco󰀨eeorteagrounds,orothersolid
particles.
! ATTENTION
12. Route drain hose from designated open type drain to tting
on Drip Tray and connect hose to tting.
13. Reattach Drip Tray/Cup Rest to unit.
6. Route appropriate tubing from the remote carbonator to the
carbonated water inlet and connect tubing to inlet.
7. If no remote carbonator is installed, install the carbonator
per manufacturers instructions.
8. Connect tubing to water source then ush water lines to
check for leaks
9. Route appropriate tubing from the syrup pump location to
the syrup inlets in front of the unit and connect tubing to all
inlets.
10. Route appropriate tubing from the CO
2
source location to
the CO
2
inlet at the remote carbonator location.
11. Route the power supply cord to a grounded electrical outlet
of the proper voltage and amperage rating.
A
B
C

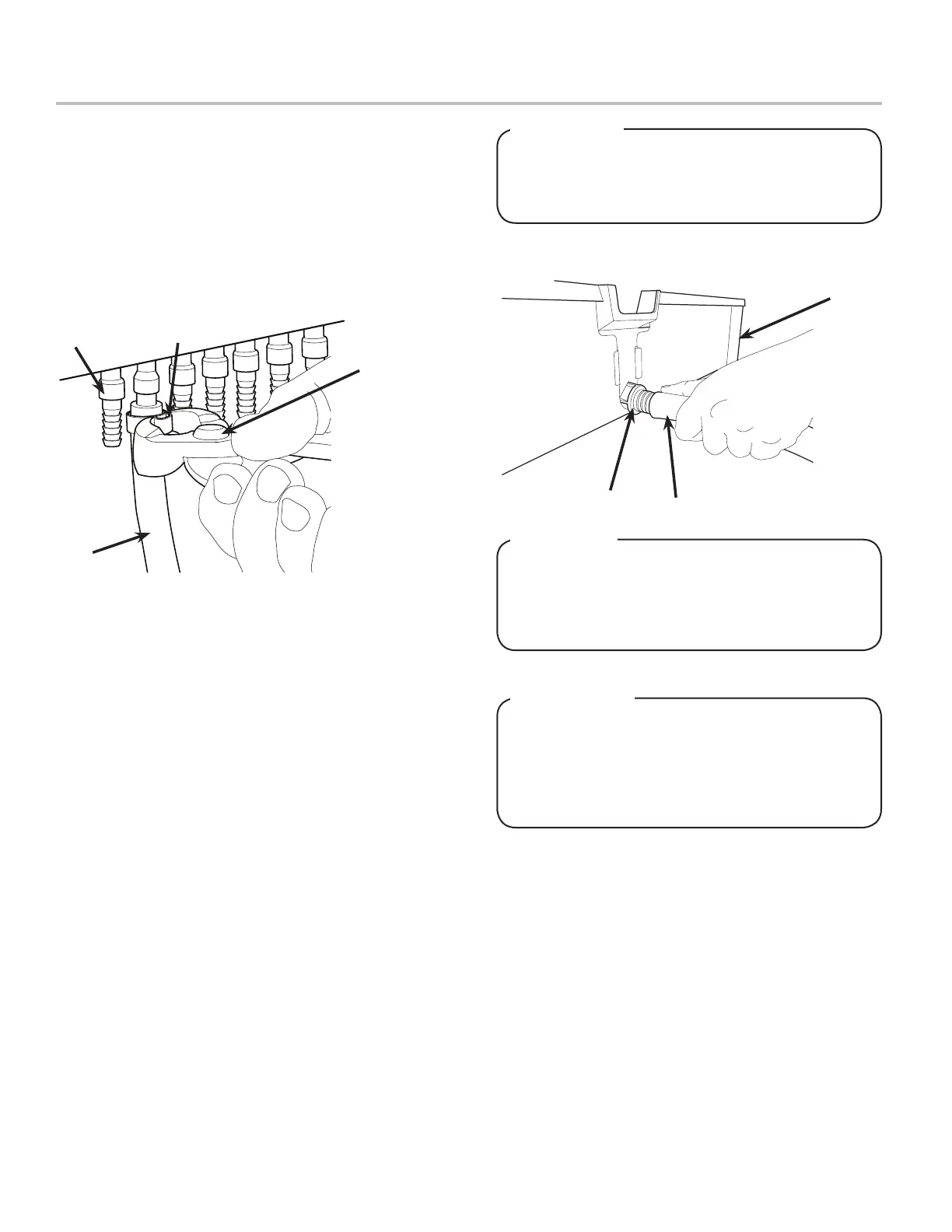

A. Oetiker Pliers
B. Fitting
C. Tubing
D. Syrup/Water
Inlet
D
A
A. Drain Fitting
B. Drain Line
C. Drip Tray
B
C
