lancer Sensation - Plumbing Diagram; Counter Cutout

27

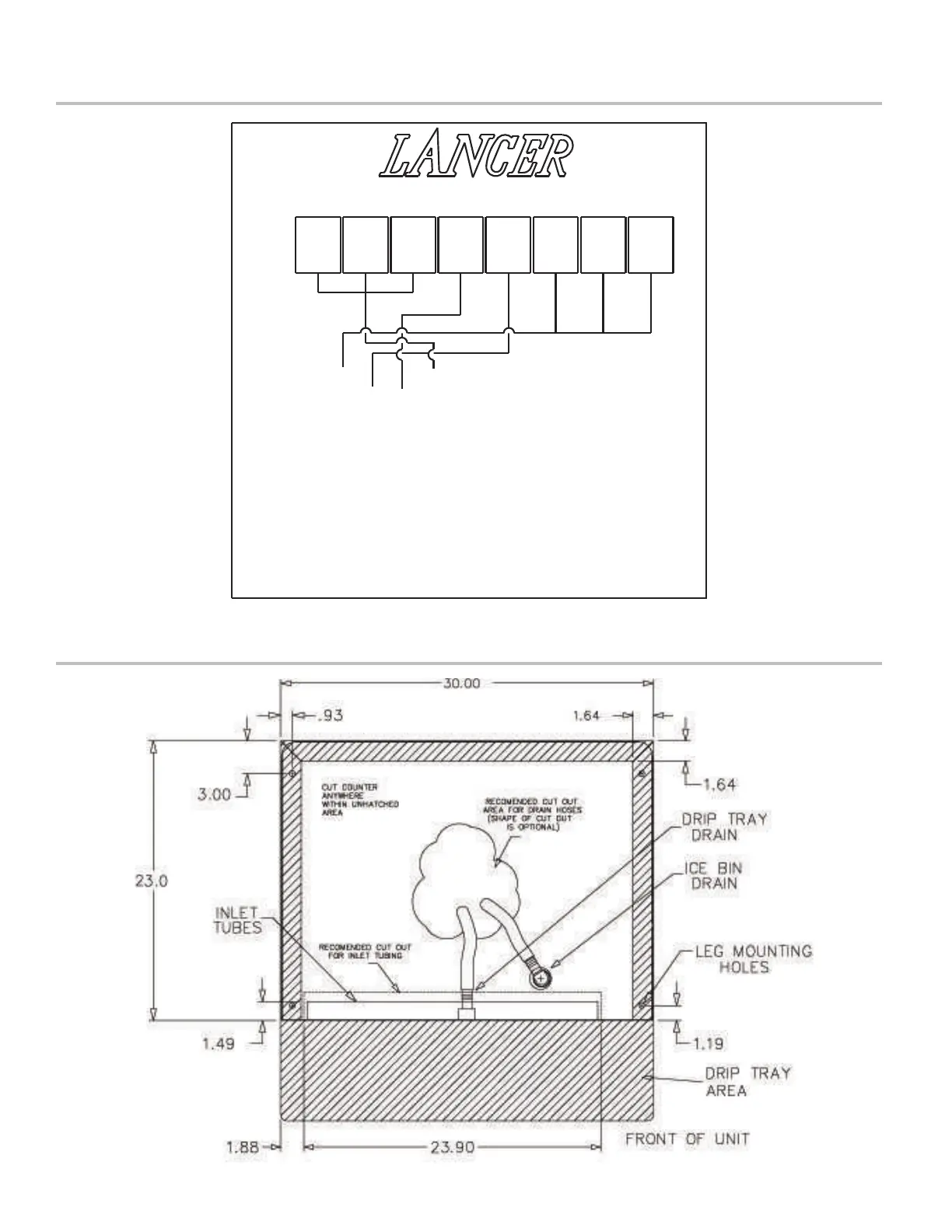

Plumbing Diagram
Counter Cutout
SODA/WATER #1,2,3
SODA/WATER #6,7,8
SODA/WATER #4
SODA/WATER #5
SYRUP #2 SYRUP #3 SYRUP #4 SYRUP #5 SYRUP #6
8 7 6 3 2 1
RECOMMENDED PLUMBING
SYRUP LINES NOT SHOWN
3-1-1-3 CONFIGURATION
FOR ASSISTANCE CALL 1-800-729-1500
PART NO: 06-2226
5 4
SYRUP #1 SYRUP #7 SYRUP #8
