Landa ENG4-2000 - Pump M.3 Series 4-2200, 4-3000

94

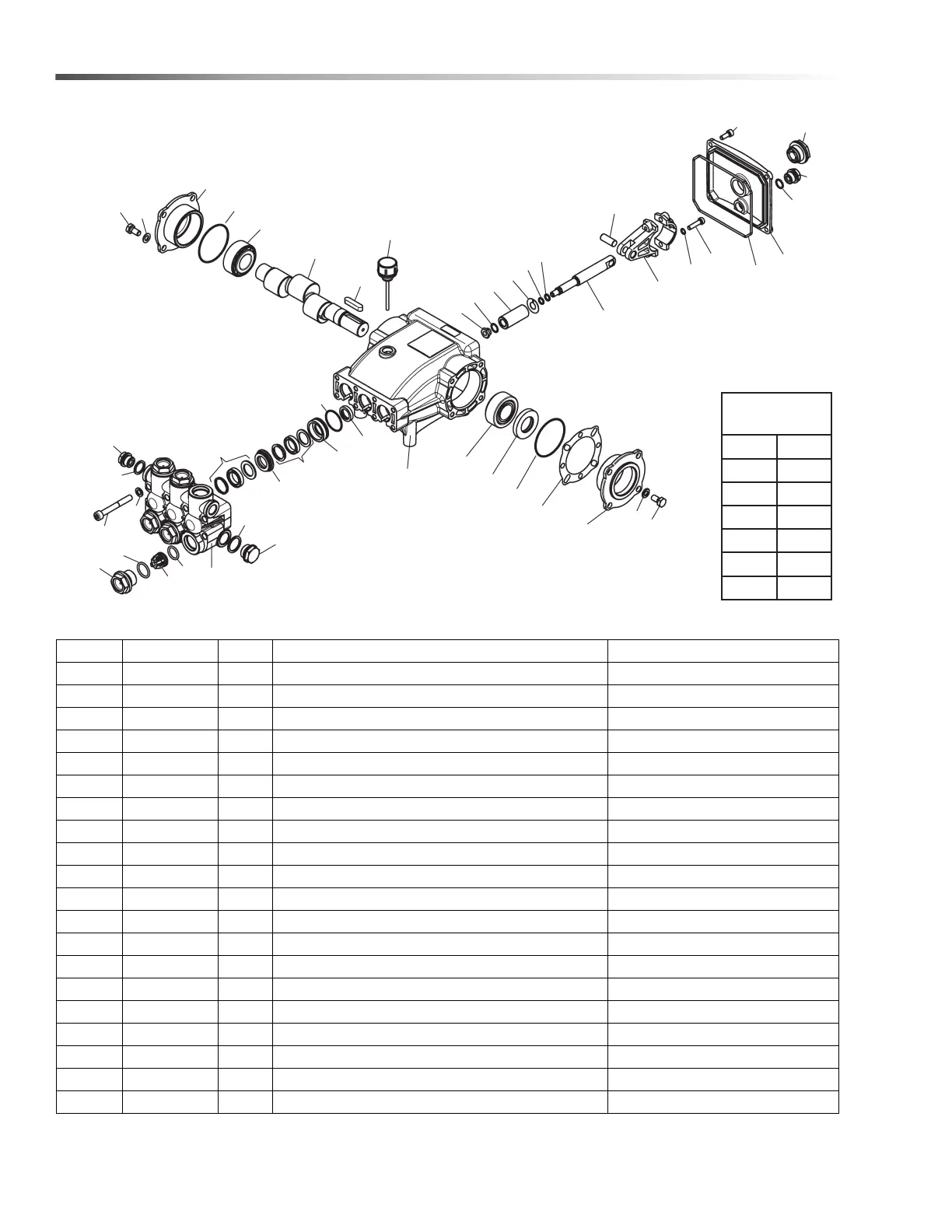

Pump M.3 Series 4-2200, 4-3000
REF PART NO. QTY DESCRIPTION NOTES
1 8.751-216.0 1 CRANKCASE
2 - 3 PLUNGER OIL SEAL SEE KITS TABLE
3 - 3 O-RING Ø1.78 X 31.47 SEE KITS TABLE
4 - 3 PRESSURE RING SEE KITS TABLE
5 - 3 U-SEAL SEE KITS TABLE
6 - 3 INTERMEDIATE RING SEE KITS TABLE
7 - 3 U-SEAL SEE KITS TABLE
8 9.803-199.0 1 WASHER, COPPER
9 9.802-926.0 1 PLUG, BRASS 1/2
10 8.751-218.0 1 MANIFOLD HEAD
11 - 6 O-RING Ø2.62 X 17.13 SEE KITS TABLE
12 - 6 VALVE ASSEMBLY SEE KITS TABLE
13 - 6 O-RING Ø2.62 X 20.29 SEE KITS TABLE
14 9.802-928.0 6 VALVE PLUG
15 9.802-938.0 8 MANIFOLD STUD BOLT
16 9.802-884.0 16 WASHER
17 9.803-198.0 1 COPPER WASHER 3/8
18 9.802-925.0 1 BRASS PLUG 3/8
23 9.802-944.0 8 SCREW, HEX, 8MM X18MM
24 8.717-210.0 1 CLOSED BEARING HOUSING
Landa ENG Dealer’s Manual 9.801-510.0 - AV
24
23
23
16
16
18
15
14
13
12
11
10
9
8
7
6
5
4
2
3
117
16
25
25
26
27
28
29
33
32
31
30
26
34
35
36
37
38
40
39
42
43
44
45
46
18
48
47
41
TORQUE
SPECS
Item # Ft.-lbs
14 75
15 30
23 8
33 7
43 13
48 7.6
