9
2
2.1
Base body
width
External
hexagon size
Allen key size
Max. Tightening torque
[Nm]
Centering accuracy [mm]
46 8 4 30 ±0,0 2
77 12 5 60 ±0,0 2
125 15 5 100 ±0,0 2
2.2

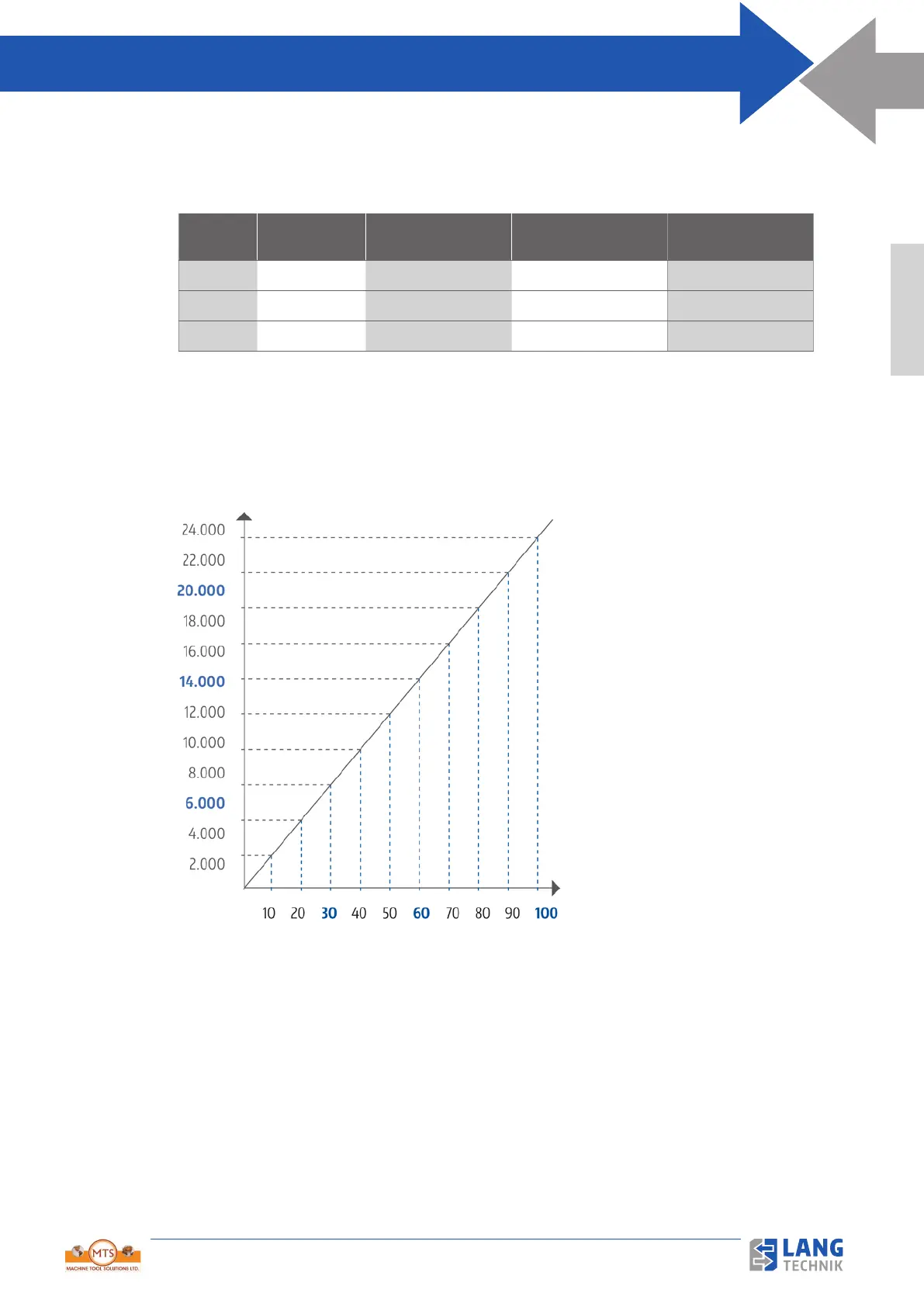

The following table shows the torque values in relation to the clamping force.
2.3
The 5-Axis Vise is clamped with its four (or two) clamping studs with a repeat accuracy of < 0.005 mm and
holding forces of up to 6,000 kg.
Holding force [N]
Torque [Nm]
