4
1
1.4
1.4.1
®

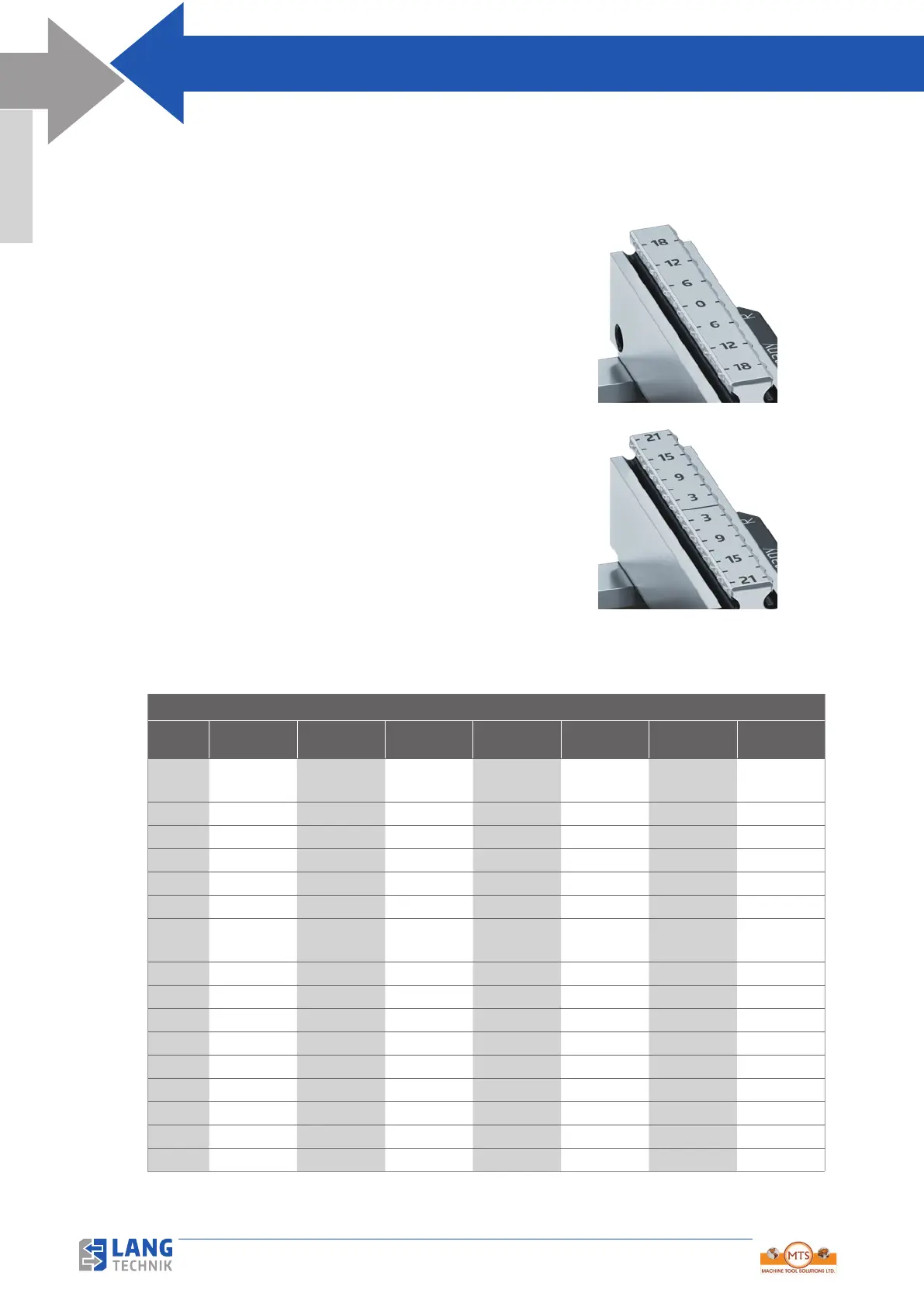

The holding teeth and depth stop alternate in the holding
serration of a Makro•Grip
®
5-Axis Vise (see illustration).
The distance from holding tooth to holding tooth is 6 mm.
1.4.2
®
FS
The holding teeth of a Makro•Grip
®
FS 5-Axis Vise do not
require a depth stop and consist of a continuous row of holding
teeth (see illustration). The distance from holding tooth to
holding tooth is 3 mm. This is referred to as full serration.
1.5
1.5.1
®
Item no. Description Jaw width Base length Spindle Spindle length Clamping range
48040-46
Makro•Grip® 4 6
micro
46 mm 77 mm Ø 12 mm x 1,0 82 mm 0 - 65 mm 2
48065-46 Makro•Grip® 4 6 46 mm 77 mm Ø 12 mm x 1,0 82 mm 0 - 65 mm 4
48085-46 Makro•Grip® 7 7 46 mm 102 mm Ø 16 mm x 1,5 100 mm 0 - 85 mm 4
48120-46 Makro•Grip® 7 7 46 mm 130 mm Ø 16 mm x 1,5 135 mm 0 - 120 mm 4
48085-77 Makro•Grip® 7 7 77 mm 102 mm Ø 16 mm x 1,5 100 mm 0 - 85 mm 4
48120-77 Makro•Grip® 7 7 77 mm 130 mm Ø 16 mm x 1,5 135 mm 0 - 120 mm 4
68120-77
Makro•Grip® 7 7
Night King
77 mm 130 mm Ø 16 mm x 1,5 135 mm 0 - 120 mm 4
48160-77 Makro•Grip® 7 7 77 mm 170 mm Ø 16 mm x 1,5 175 mm 0 - 160 mm 4
48200-77 Makro•Grip® 7 7 77 mm 210 mm Ø 16 mm x 1,5 215 mm 0 - 200 mm 4
48155-77 Makro•Grip® 12 5 77 mm 160 mm Ø 20 mm x 1,5 164 mm 0 - 155 mm 4
48205-77 Makro•Grip® 12 5 77 mm 210 mm Ø 20 mm x 1,5 214 mm 0 - 205 mm 4
48155-125 Makro•Grip® 12 5 125 mm 160 mm Ø 20 mm x 1,5 164 mm 0 - 155 mm 4
48205-125 Makro•Grip® 12 5 125 mm 210 mm Ø 20 mm x 1,5 214 mm 0 - 205 mm 4
48255-125 Makro•Grip® 12 5 125 mm 260 mm Ø 20 mm x 1,5 264 mm 0 - 255 mm 4
48305-125 Makro•Grip® 12 5 125 mm 310 mm Ø 20 mm x 1,5 314 mm 0 - 305 mm 4
48355-125 Makro•Grip® 12 5 125 mm 360 mm Ø 20 mm x 1,5 364 mm 0 - 355 mm 4
