11
4
4.2
NOTE
The instructions for disassembling and reassembling the jaws apply to all types of vises from LANG Technik.
Turning the jaws refers exclusively to Makro•Grip
®
(FS).
4.2.1
Unscrew the threaded spindle anticlockwise until the clamping jaws no longer move. They can then be easily
removed.
4.2.2
1. Turn the left and right clamping jaws by 180° and insert them as far as the stop on the threaded spindle.
2. Press the clamping jaws evenly towards the center with light pressure and turn the spindle counterclockwise.
INFO
When screwing in the clamping jaws, check that they are flush with the base body to ensure that the jaws are
inserted evenly and thus clamped centrally.
Tip: For longer base bodies, we recommend using a mounting aid (see accessories) .
4.3
Carry out a regular visual inspection for contamination. If necessary, the operation and clean the 5-Axis Vise
(see also chapter „Maintenance“).

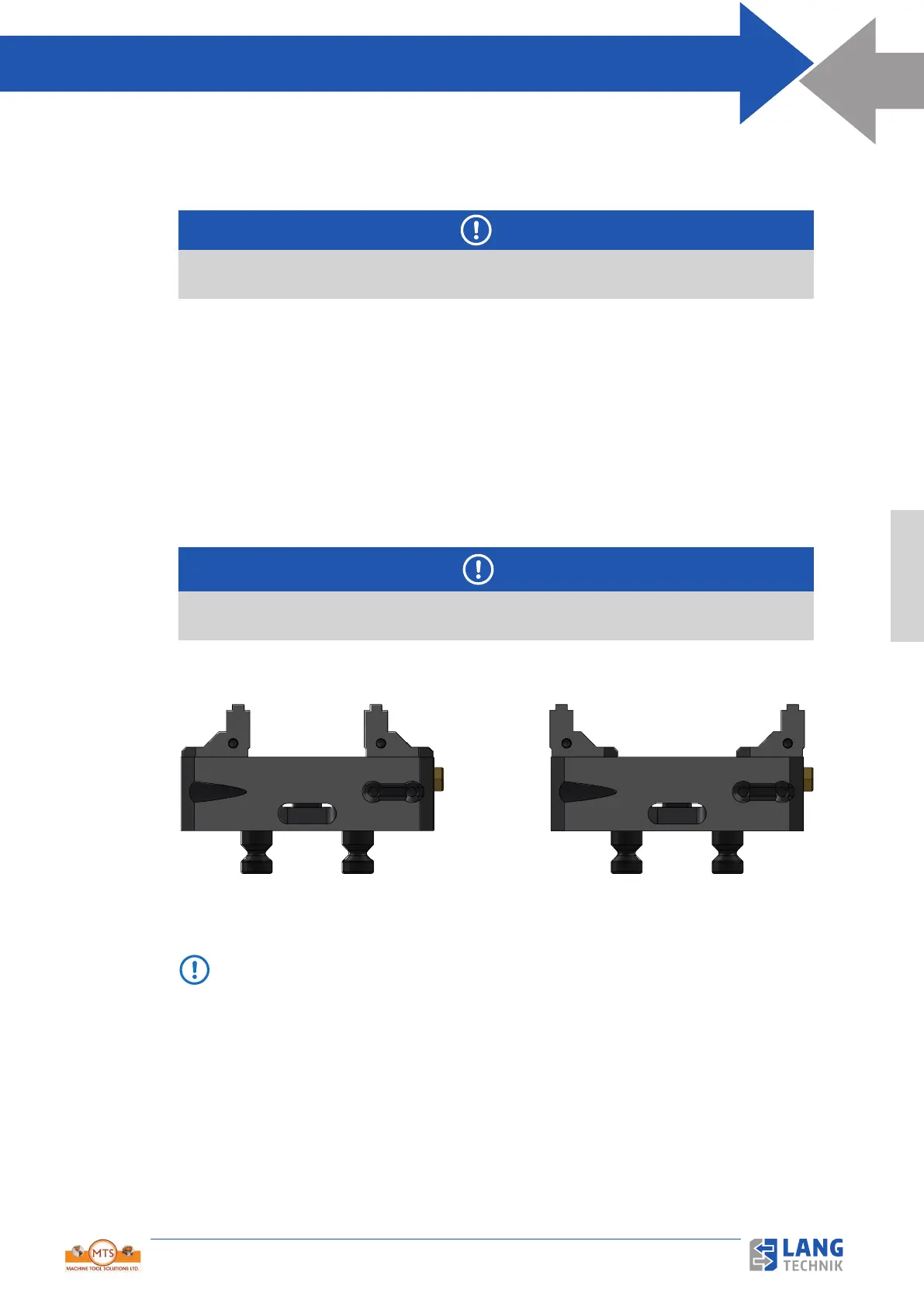

Clamping jaw position in delivered condition Clamping jaw position in turned state
