1.7.3
The standard clamping depth / support height of workpieces in the clamping jaws of Makro•Grip
®
(FS) 5-Axis
Vises is 3 mm. On request, this support height can be adjusted.

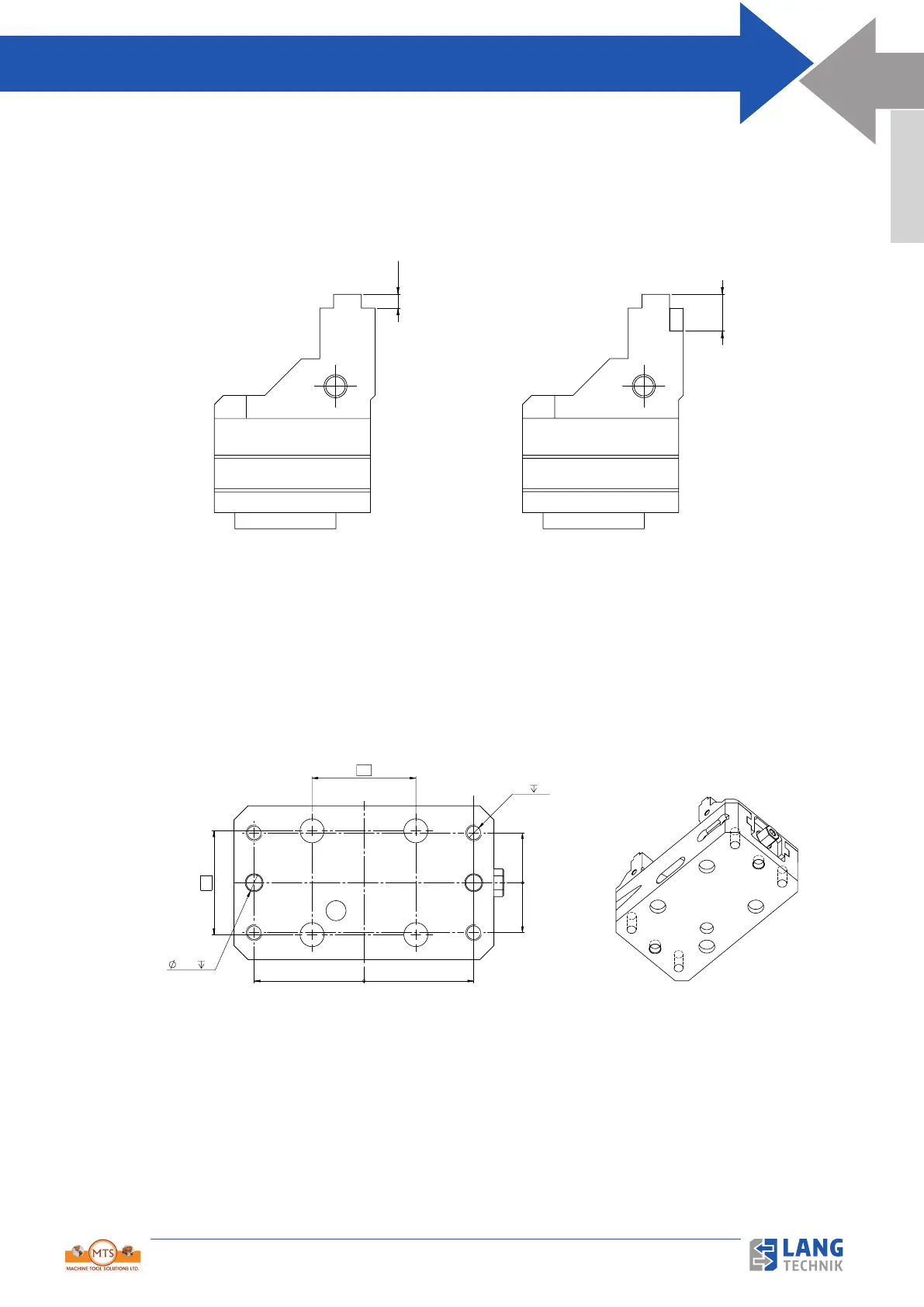

Illustration:
Left: Standard support height or clamping depth (3 mm). Right: Special height 8 mm
1.7.4
If the Quick•Point
®
clamping studs are not used and the 5-Axis Vise is to be mounted directly on other fixtures,
customer-specific threaded or fitting holes can be drilled on the underside of the 5-Axis Vise.
Illustration: Example drawing sketch for customized bores on the underside
8
3
52
52
M8
18
8 H7
6
0
55
55
0
25
25
