Lanner NCA-4010 Series - Page 25

Network Computing Platforms

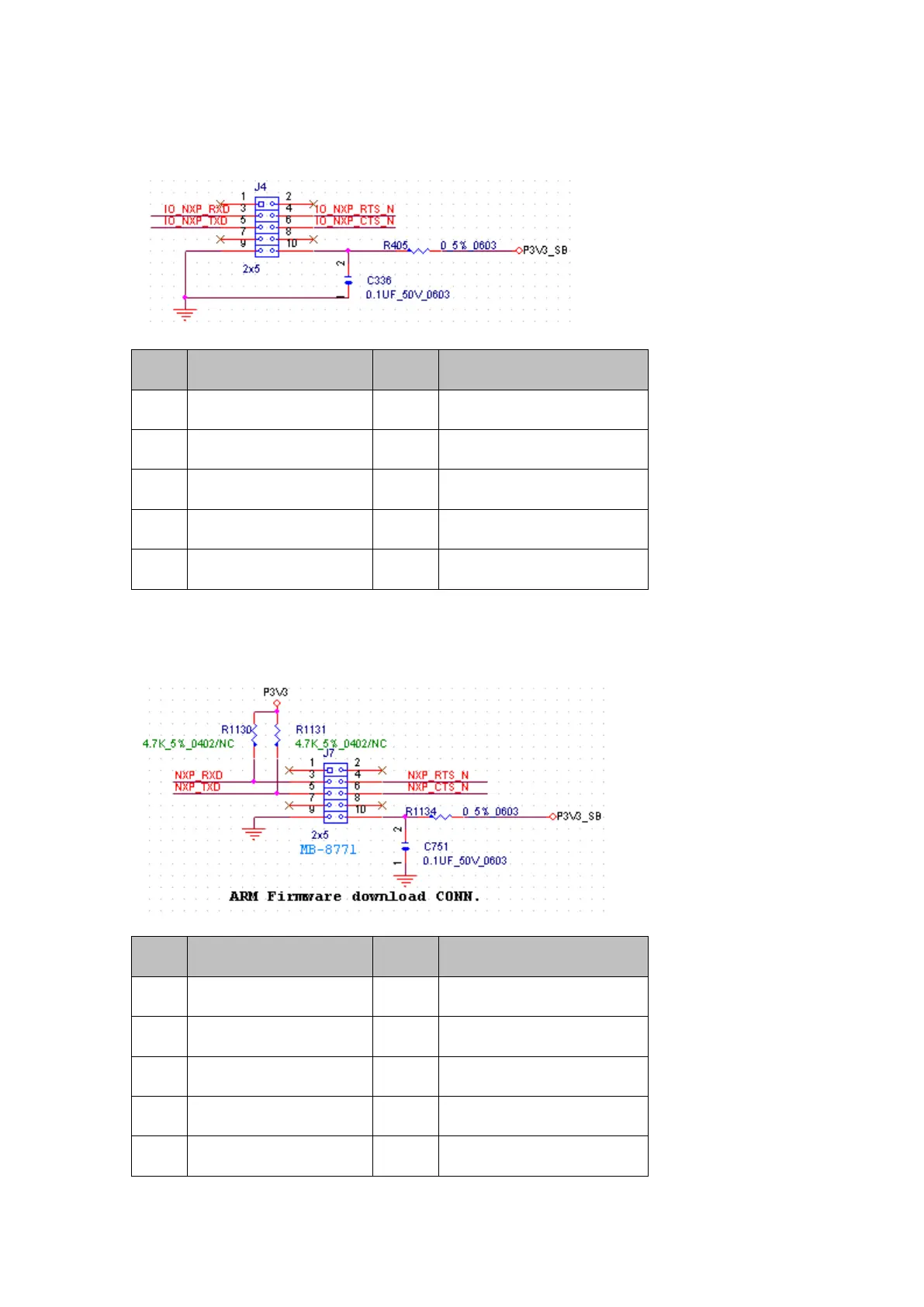

J4: Fresh I/O board (NM-4010IG401) BYPASS
J7 : Fresh main board BYPASS
PIN
DESCRIPTION
PIN
DESCRIPTION
1
NC
2
NC
3
IO_NXP_RXD
4
IO_NXP_RTS_N
5
IO_NXP_TXD
6
IO_NXP_CTS_N
7
NC
8
NC
9
GND
10
GND
PIN
DESCRIPTION
PIN
DESCRIPTION
1
NC
2
NC
3
NXP_RXD
4
NXP_RTS_N
5
NXP_TXD
6
NXP_CTS_N
7
NC
8
NC
9
GND
10
GND
