Lanner NCA-4010 Series - Page 29

Network Computing Platforms

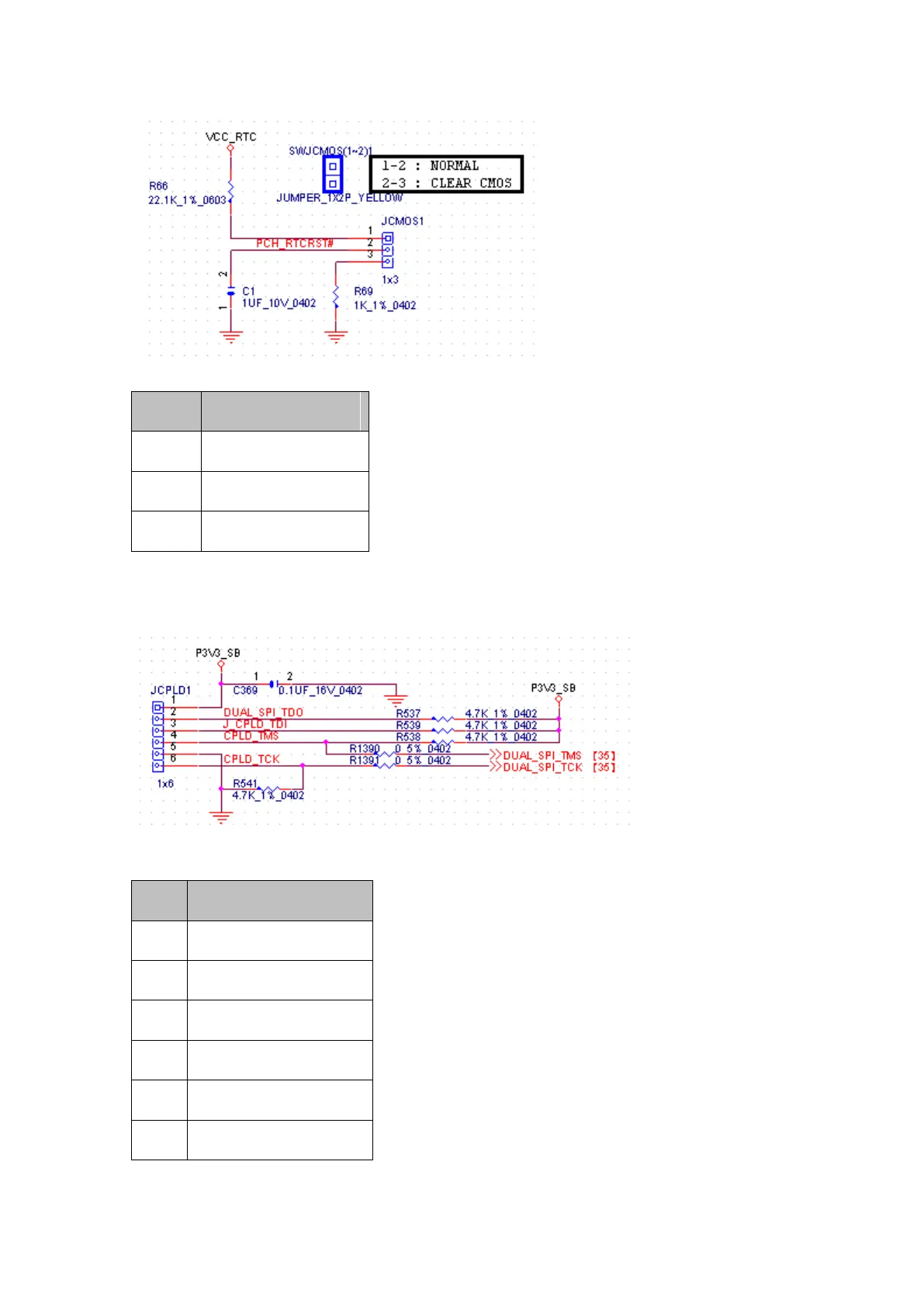

PIN
DESCRIPTION
1
VCC_RTC
2
PCH_RTCRST#
3
GND
JCPLD1: Fresh CPLD (Complex Programmable Logic Device)
JLCM1: LCM module connector
PIN
DESCRIPTION
1
P3V3_SB
2
DUAL_SPI_TDO
3
J_CPLD_TDI
4
CPLD_TMS
5
GND
6
CPLD_TCK
