Lanner NCA-4010 Series - Page 28

Network Computing Platforms

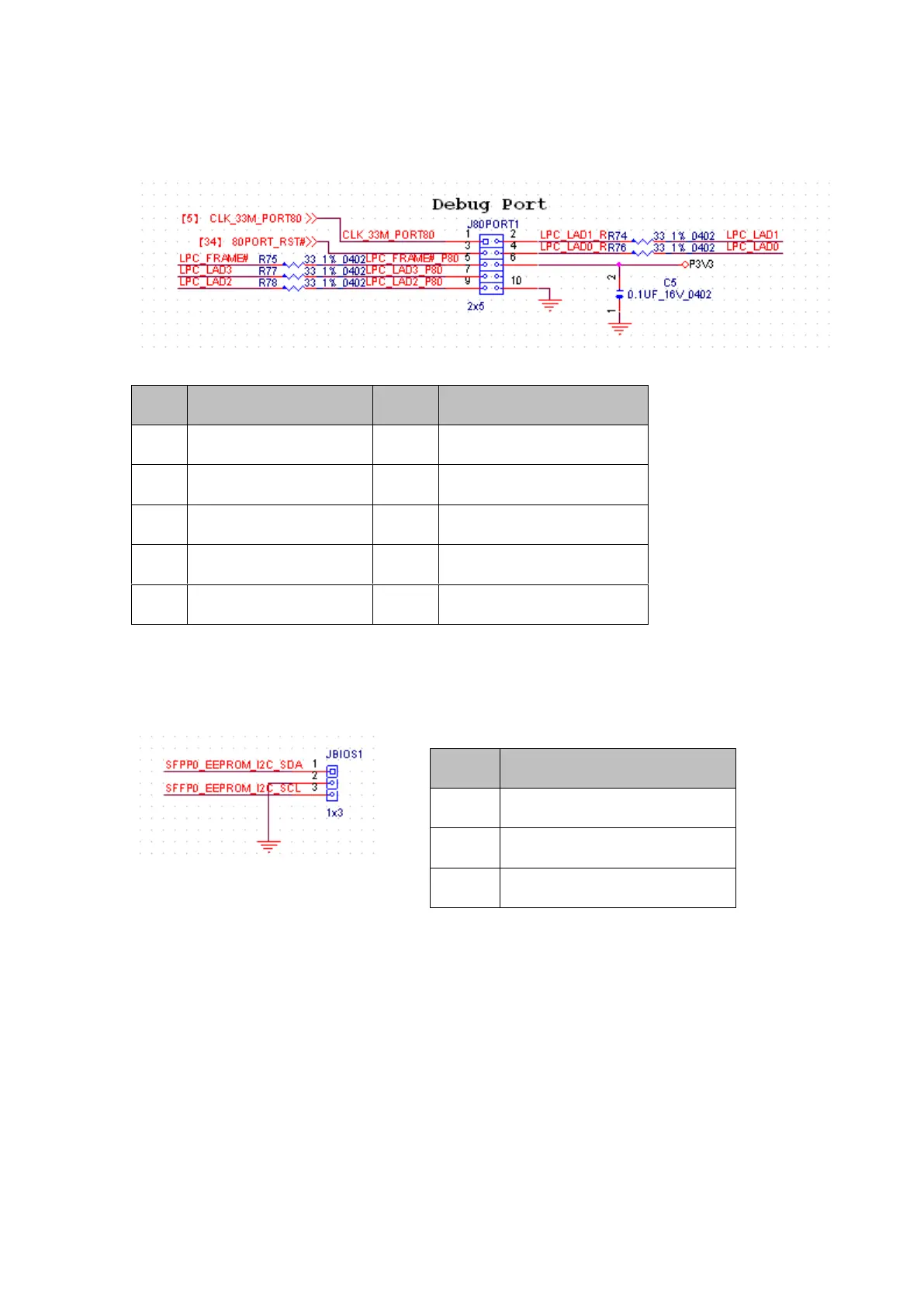

J80PORT1 : Debug Port
JBIOS1: PHY fresh BIOS
JCMOS1 : 1-2 : NORMAL
2-3 : CLEAR CMOS
PIN
DESCRIPTION
PIN
DESCRIPTION
1
CLK_33M_PORT80
2
LPC_LAD1_R
3
80PORT_RST#
4
LPC_LAD0_R
5
LPC_FRAME#_P80
6
P3V3
7
LPC_LAD3_P80
8
NC
9
LPC_LAD2_P80
10
GND
PIN
DESCRIPTION
1
SFPP0_EEPROM_I2C_SDA
2
GND
3
SFFP0_EEPROM_I2C_SCL
