Lanner NCA-4010 Series - Page 36

Network Computing Platforms

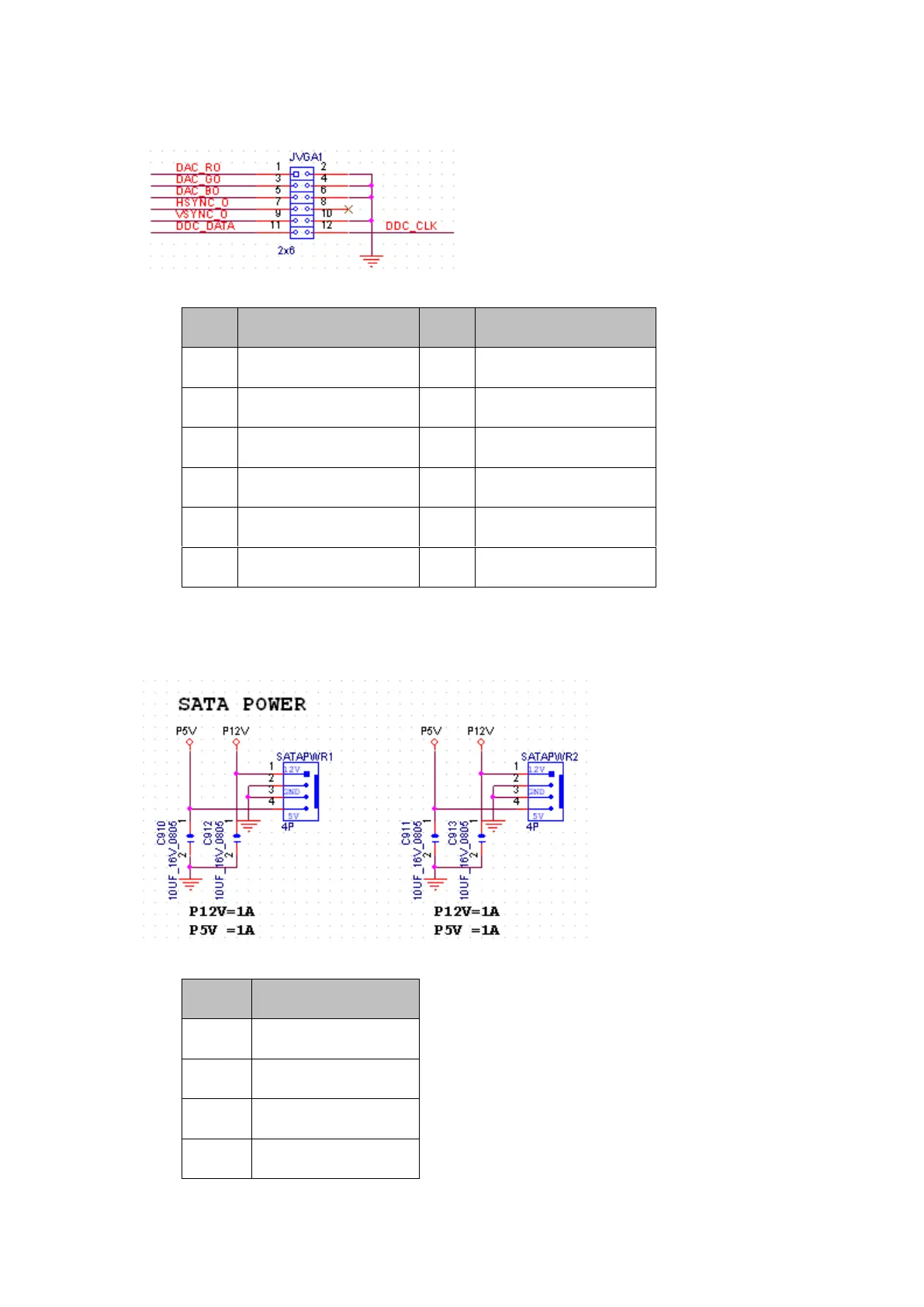

JVGA1: VGA internal connector
PIN
DESCRIPTION
PIN
DESCRIPTION
1
DAC_RO
2
GND
3
DAC_GO
4
GND
5
DAC_BO
6
GND
7
HSYNC_O
8
NC
9
VSYNC_O
10
GND
11
DDC_DATA
12
DDC_CLK
SATAPWR1/SATAPWR2: SATA 4-pin POWER connectors
PIN
DESCRIPTION
1
P12V
2
GND
3
GND
4
P5V
