Lanner NCA-4010 Series - Page 35

Network Computing Platforms
PIN
DESCRIPTION
PIN
DESCRIPTION
1
SPI_HD1#
2
J_SPI2_CS0#_DUAL
3
J_SPI1_CS0#_DUAL
4
P3V3_SB
5
SPI_MISO_DUAL
6
SPI_HOLD0_L
7
NC
8
SPI_CLK_DUAL
9
GND
10
SPI_MOSI_DUAL

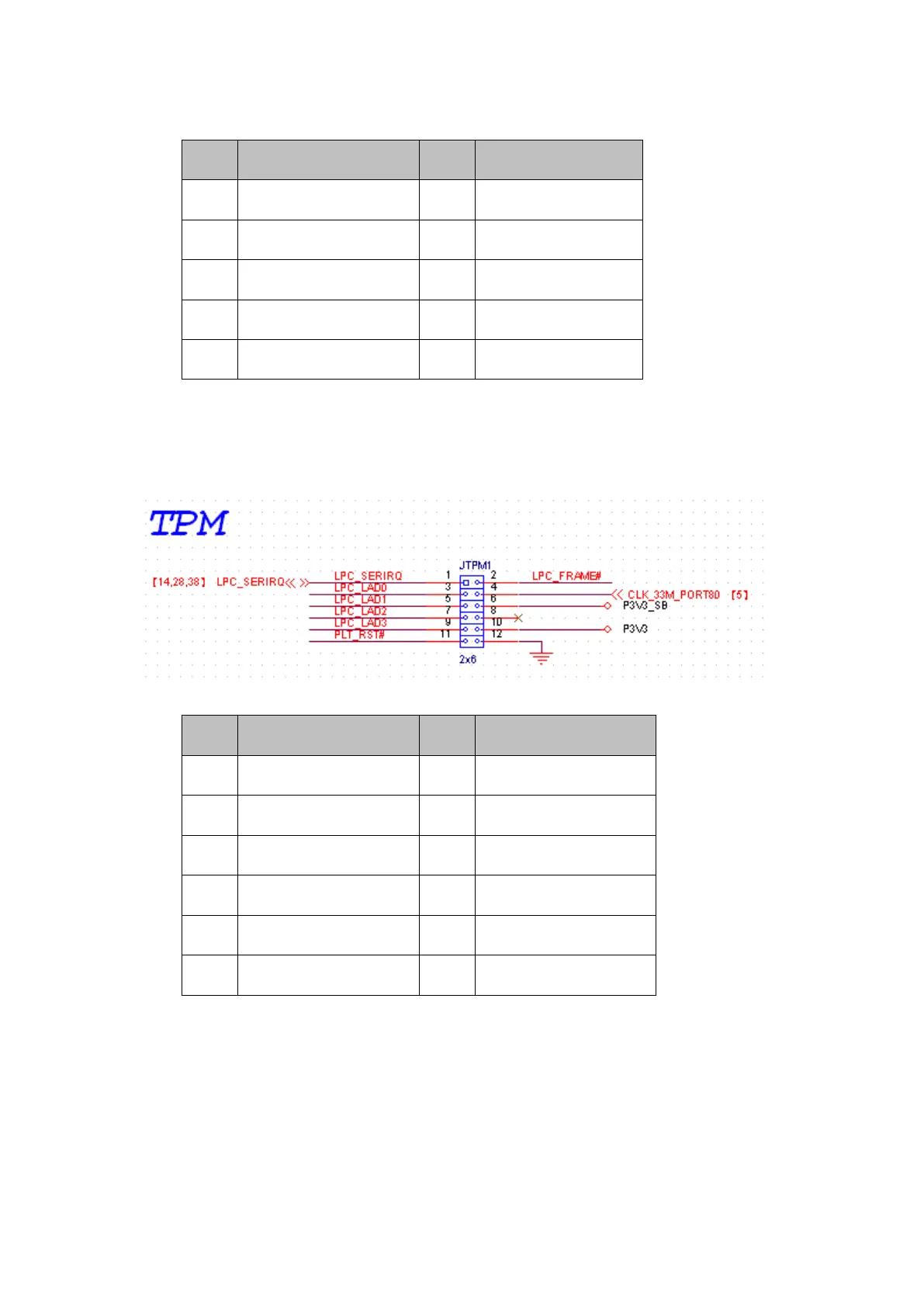

JTPM1: TPM module pin header (optional)
PIN
DESCRIPTION
PIN
DESCRIPTION
1
LPC_SERIRQ
2
LPC_FRAME#
3
LPC_LAD0
4
CLK_33M_PORT80
5
LPC_LAD1
6
P3V3_SB
7
LPC_LAD2
8
NC
9
LPC_LAD3
10
P3V3
11
PLT_RST#
12
GND
