Lanner NCA-4010 Series - Page 34

Network Computing Platforms

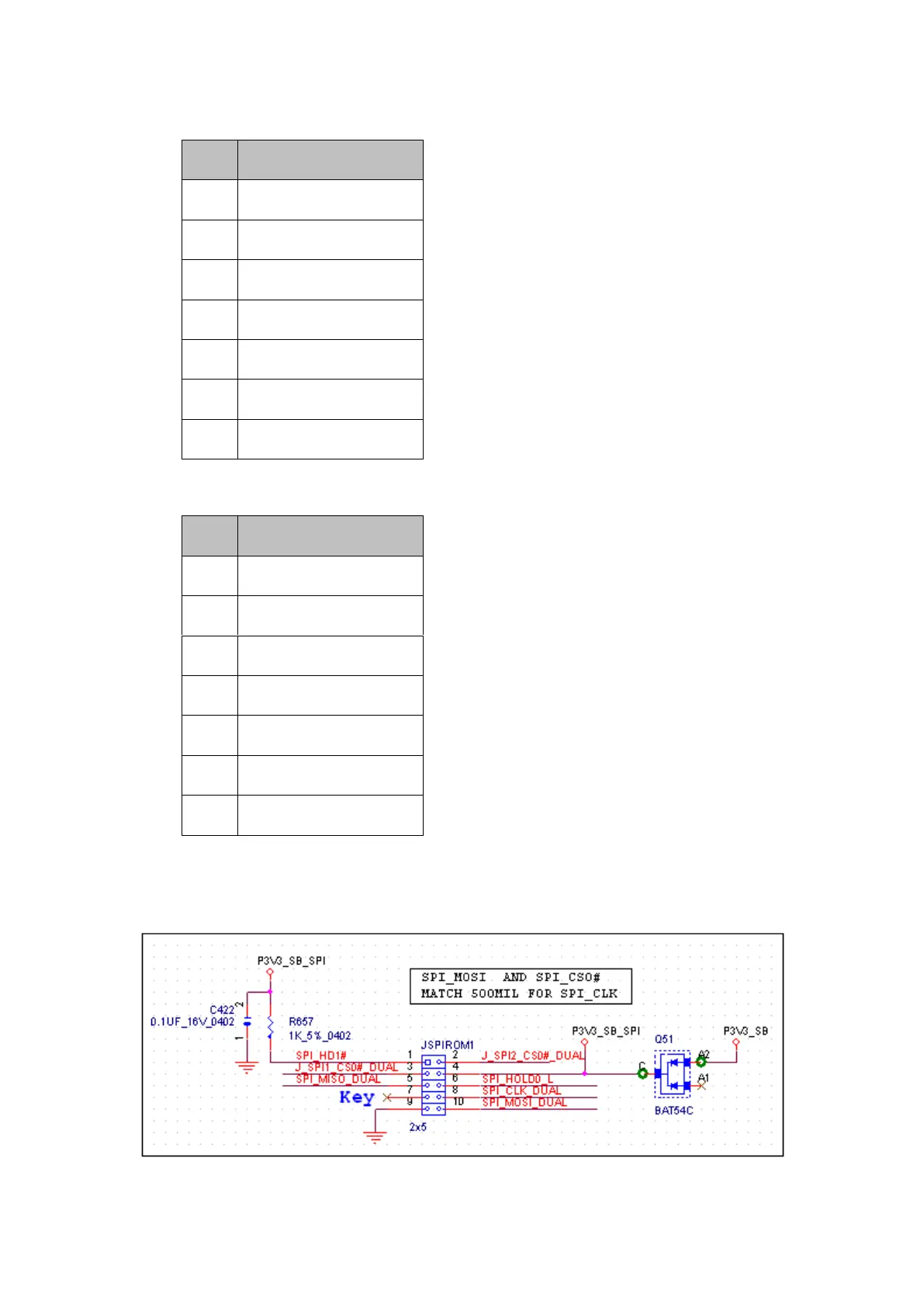

JSATA1
PIN
DESCRIPTION
1
GND
2
SATA_CTX_C_DRX_P2
3
SATA_CTX_C_DRX_N2
4
GND
5
SATA_DTX_CRX_N2
6
SATA_DTX_CRX_P2
7
GND
JSATA2
PIN
DESCRIPTION
1
GND
2
SATA_CTX_C_DRX_P3
3
SATA_CTX_C_DRX_N3
4
GND
5
SATA_DTX_CRX_N3
6
SATA_DTX_CRX_P3
7
GND
JSPIROM1: Fresh BIOS
