Dimensions

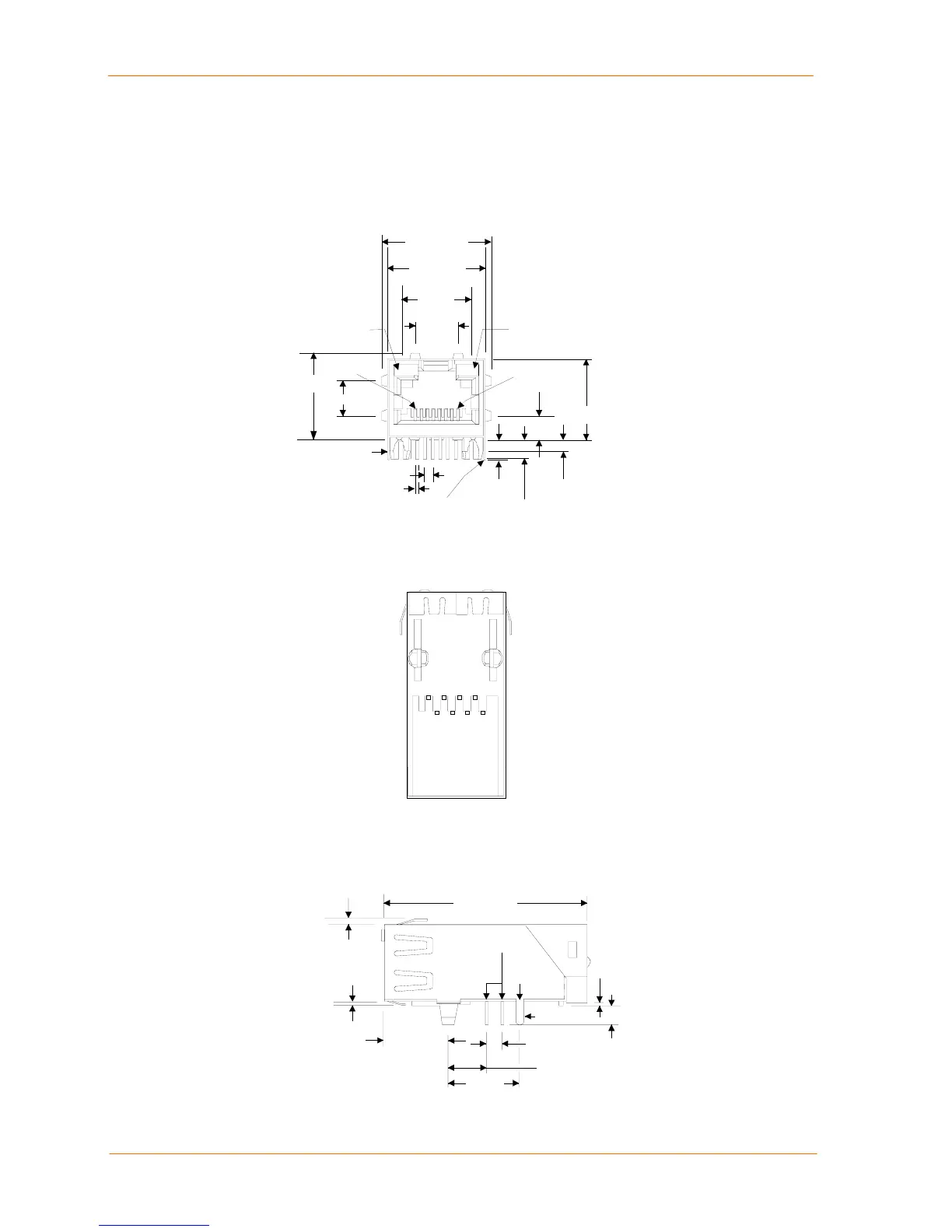

The XPort dimensions are shown in the following drawings.
Figure 2-4. Front View
RIGHT
LED
18.25 [0.719]
16.25 [0.640]
11.55 [0.455]
7.15 [0.281]
CONTACT 1
CONTACT 8
5.85 [0.230]
14.50 [0.571]
4.03 [0.158]
13.50 [0.531]
1.85 [0.073]
3.25 [0.128]
3.30 [0.130]
1.27 [0.050]
0.40 [0.016]
FRONT
VIEW
DIMS = mm (in)
LEFT
LED
SHIELD TAB
SHIELD TAB
TOLERANCE
.XX+/-0.20[0.008]
Figure 2-5. Bottom View
Figure 2-6. Side View
33.90 [1.335]
1.00 [0.039]
0.35 [0.014]
10.84 [0.427]
6.35 [0.250]
2.54 [0.100] 3.20 [0.126]
0.60 [0.024]
FRONT
SHIELD
GROUND
INTERFACE
PINS
DIMS = mm (in)
11.90 [0.468]
SHIELD TAB
TOLERANCE
.XX+/-0.20[0.008]
