MIN MAX
PRESSIONE
PRESSURE
Recirculation
and
washing
F6
Ediz. 010 - 06/2015
•

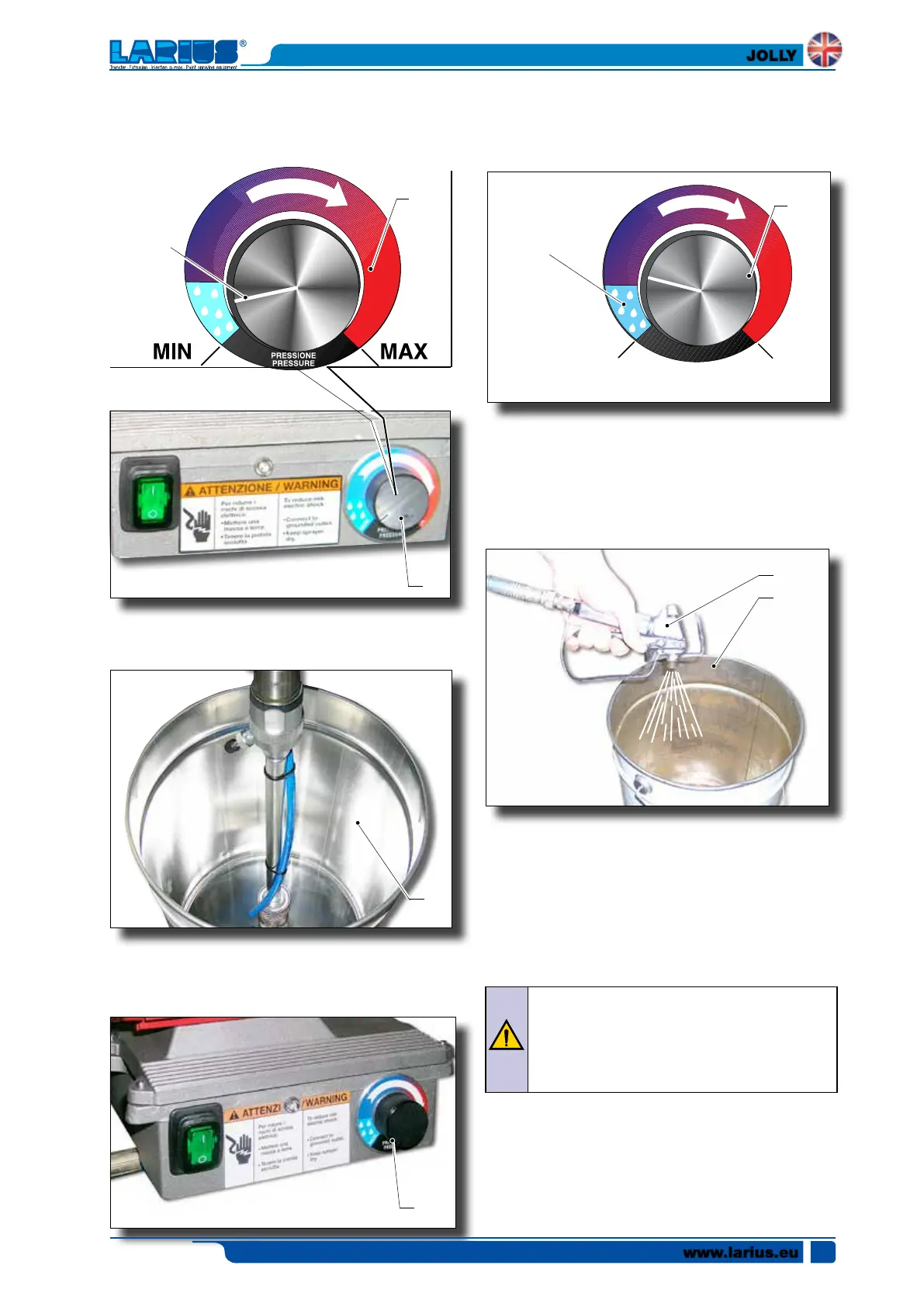

Visually check that the washing liquid starts to re-circulate
within the tank
(F8).
• Turn the pressure adjustment handle (F6) counterclockwise
to stop the pump.
• Close the recirculating-safety valve (F7).
• Turn pressure regulating knob (F5) slightly clockwise so
that the machine idles.
• Turn the pressure regulating knob (F6) clockwise to the
position “RECIRCULATION AND WASHING” (see drops)
so that the machine idles.
• Remove the suction pipe and take away the solvent tank.
• Point the gun into the solvent tank and press the trigger
so as to recover the residual solvent.
• As the pump idles, press the “OFF” (0) switch to stop the
unit.
• Now the machine is ready. Should you use water paints,
beside washing with the solvent, it is suggested to wash
with soap and and clean water.
• Insert the gun trigger lock and fix the nozzle.
Never spray solvents indoor. In addition, it is re-
commended to keep far from the pump in order to
avoid the contact between the solvent fumes and
the electric motor.
• Point the gun (F3) into a collecting tank (F8) keeping the
trigger pressed (so as to drain the oil inside) till a clean
solvent comes out. Now, release the trigger.
www.larius.eu
JOLLY
11
F6
F6
Recirculation
and
washing
F6
F3
F9
F8
