Larius Jolly - Replacing the Pump Unit Stem Gasket

UPPER
Ediz. 010 - 06/2015
www.larius.eu
JOLLY
24
P23
P24
P19
• Remove the PTFE O-ring (P23) and replace it with a new
one (P24).

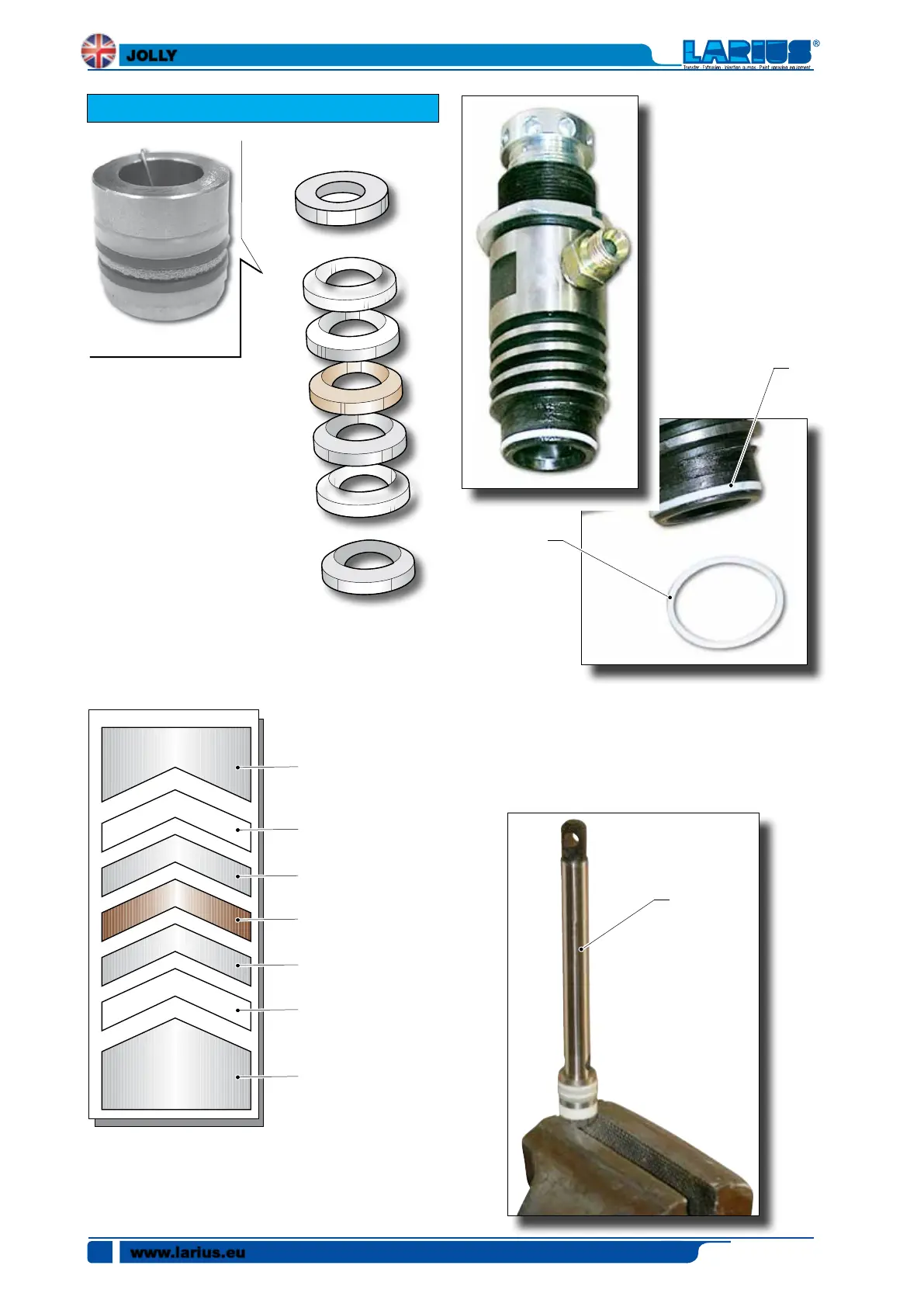

REPLACING THE PUMP UNIT STEM GASKET
• Secure the stem (P19) in a vice as shown.
Waxed leather
Code16155
Steel male ring
Code 16108
Polyethylene
grey Code 16124
PTFE white
Code 16107
Steel female ring
Code 16106
Polyethylene
grey Code 16124
PTFE grey
Code 16107
