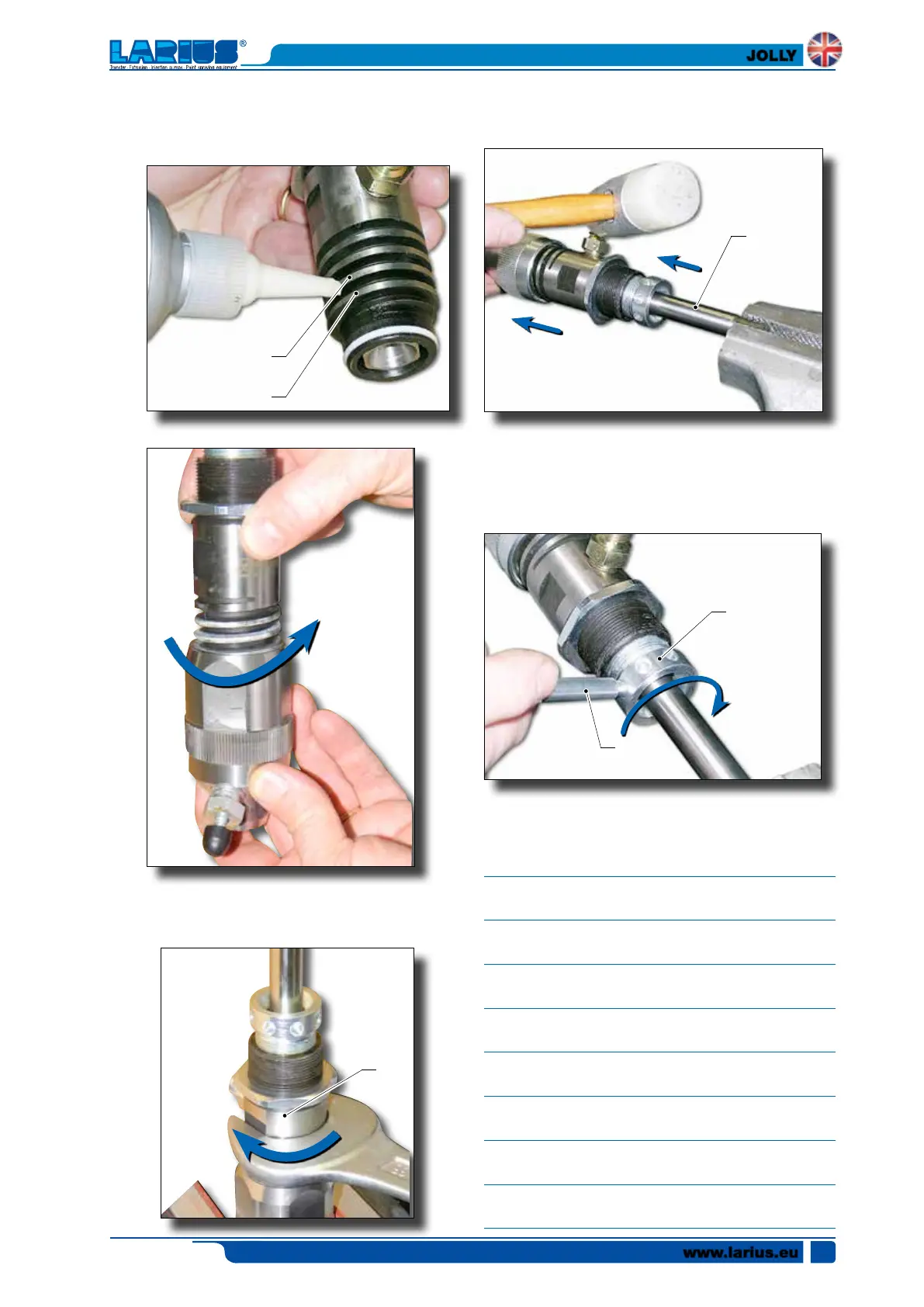

• Put liquid PTFE on the first two spirals (P31) and (P32)
to avoid the two components coupled as shown from
unscrewing.
• Use a 36 mm spanner to screw the pump unit (P10).
• Make the piston stem (P19) completely slide.
• Use the pin (P12) supplied to tighten the gasket ring nut
(P11).
Close until it is completed tightened, without forcing.
