Ediz. 010 - 06/2015

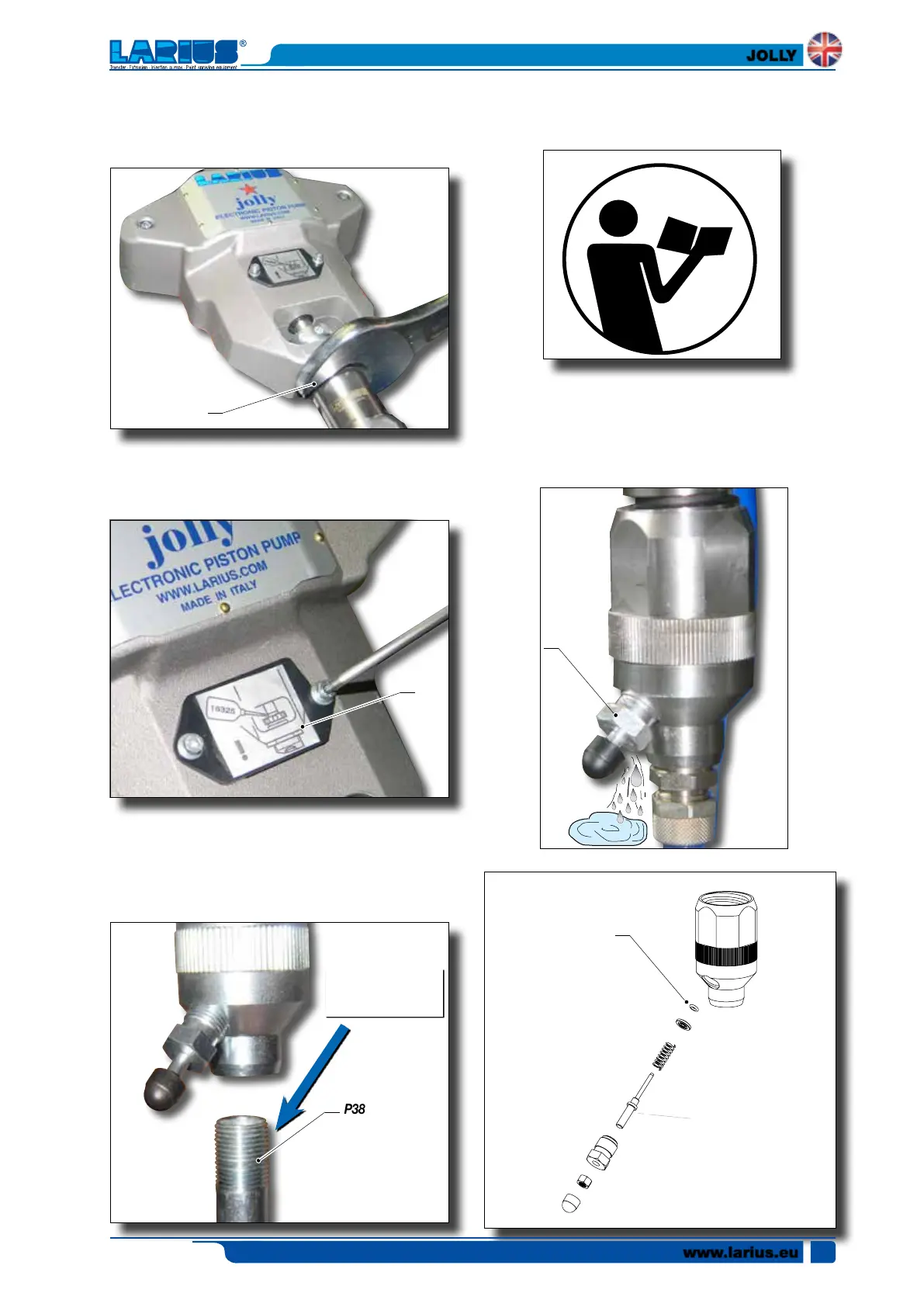

REPLACEMENT OF THE BALL RELEASE GROUP SEAL
In case there is a loss of material from the ball release group
(P39), it is necessary to replace the gasket (X1) as shown.
• For correct reassembly, see the drawing of the pump unit,
and follow disassembly operations in reverse order.
• Once the unit has been correctly positioned, tighten the
lock nut (P37) hard against the front template.
To tighten, use a 45 mm spanner.
• Close the inspection cover (P2) again.
• Fit the suction pipe (P38).
Put PTFE tape or liquid PTFE over the threaded part before
screwing it onto the foot valve.
www.larius.eu
JOLLY
29
P37
P2
X1
P39
P38
APPLY
PTFE
