LT-4100 User & Installation Manual Rev 1.00 System Services
Lars Thrane A/S www.thrane.eu Page 50 of 129
External SIP Phones
The LT-4100 system is supporting connection of external SIP phones, up to 8 external SIP phones. The
configuration of the SIP phones must be completed via the web server, see Telephony on page 98. Figure 45
is illustrating the connection of the external SIP phones. Connect the SIP phones directly to the LT-4110
Control Unit Ethernet (LAN port).
NOTE: The SIP phone might require a DHCP Server to get an IP address assigned. Depending on
network setup, it might be needed to configure DHCP Server mode in the LT-4100 system.
The LT-4110 Control Unit UI display (MENU -> System -> SIP Phones) will provide a ‘live’ registration status
of the SIP phones configured from the web server.
An active voice call to/from a SIP phone is not shown on the Control Unit on Certus, see Figure 47.

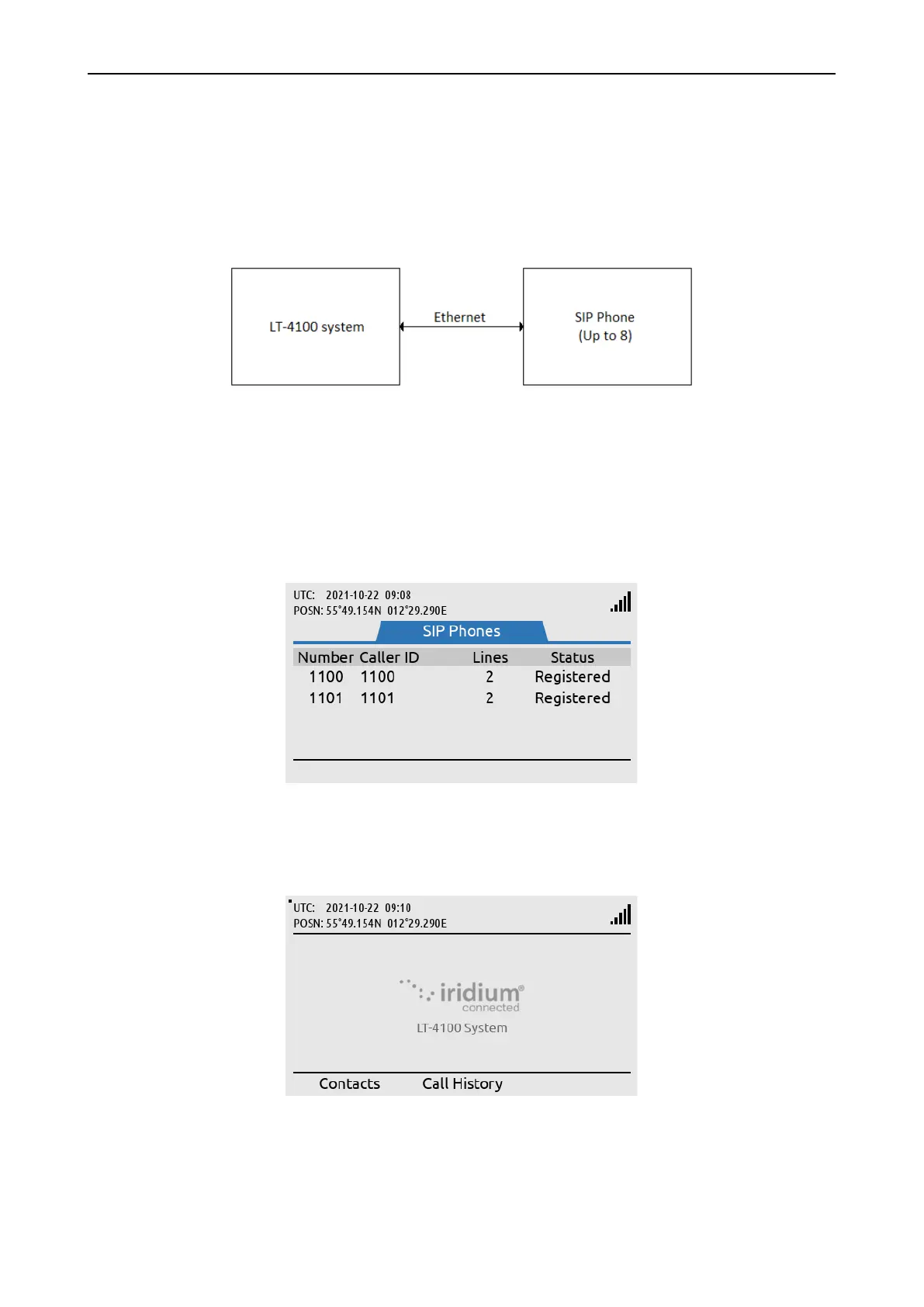

Figure 45: SIP phones
Figure 46: System Submenu (SIP Phones)
Figure 47: External SIP Voice Call
SIP Phones:
MENU -> System -> SIP
Phones
External SIP voice call is
not shown on the LT-
4110 Idle screen.
