LT-4100 User & Installation Manual Rev 1.00 Web server
Lars Thrane A/S www.thrane.eu Page 83 of 129
Web server
The LT-4110 Control Unit has a built-in webserver, which can be accessed from the Ethernet (RJ45)
interface from the back side of the control unit. A PC must be connected to the control unit, either directly
by connecting an Ethernet cable between a PC and the LT-4110 Control Unit, or by connecting the LT-4110
Control Unit to a Local Area Network (LAN), to where the PC is connected.
NOTE: The IP address allocated to the LT-4110 Control Unit, is shown in the GUI (Menu -> System -
> Network: IP Address).
The functionality of all web pages is described in further detail in the following sections. Some of the
sections will refers to other sections in this User & Installation Manual, e.g. hardware interfaces.
NOTE: All web pages functionality will be described in detail for the LT-4100 system. It is the
intention that the web pages should be used during the installation and configuration of
the system. During normal operation of the system, it should not be necessary to access
the web pages.

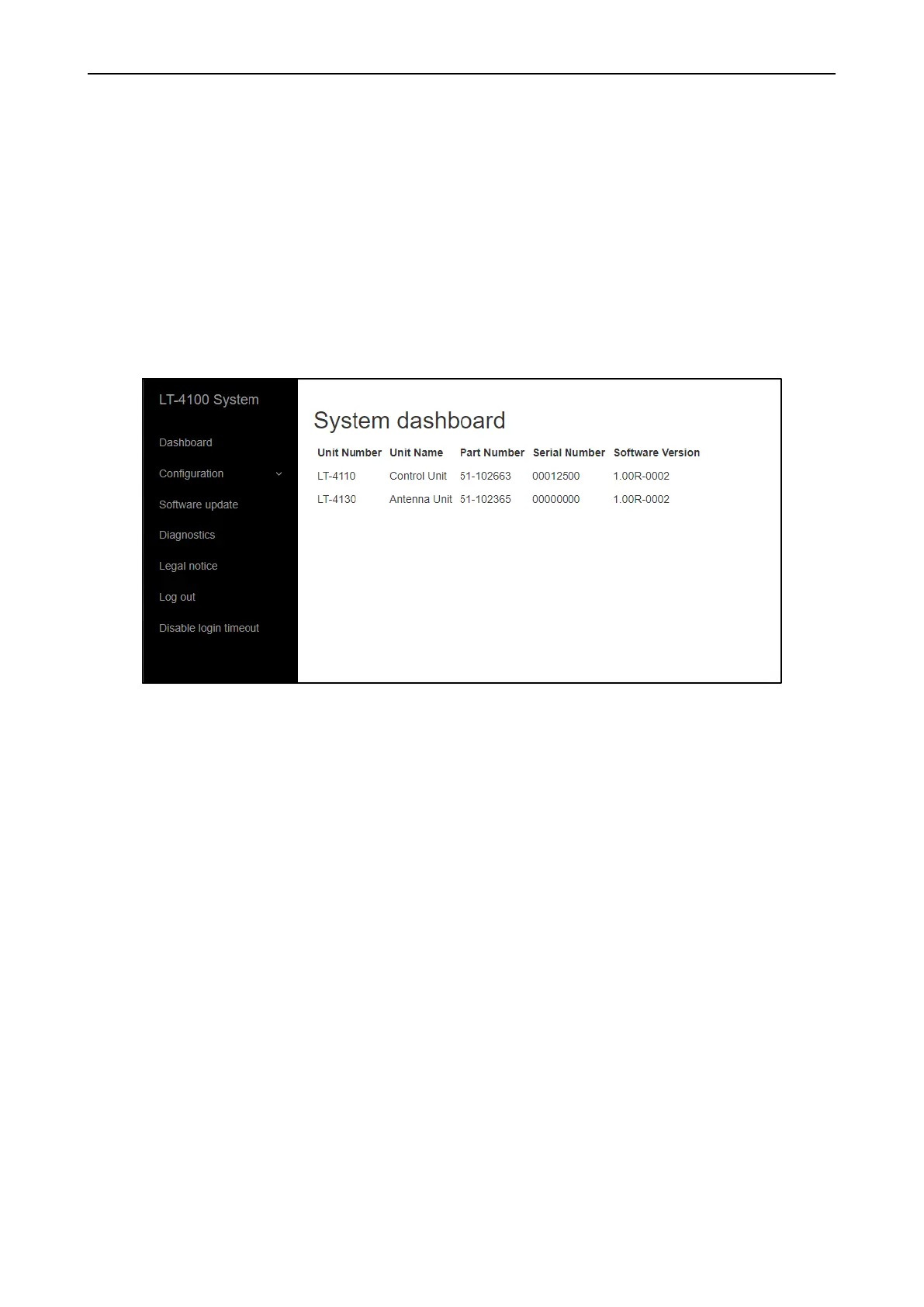

Figure 105: Web server (System dashboard)
