LT-4100 User & Installation Manual Rev 1.00 Galvanic Isolated Power Supply
Lars Thrane A/S www.thrane.eu Page 37 of 129
Galvanic Isolated Power Supply
Use an IEC 60945 approved AC/DC or DC/DC galvanic isolated power supply for the LT-4100 system (LT-
4110 Control Unit). The galvanic isolated power supply must be used to protect the LT-4100 system.
AC/DC Galvanic Isolated Power Supply

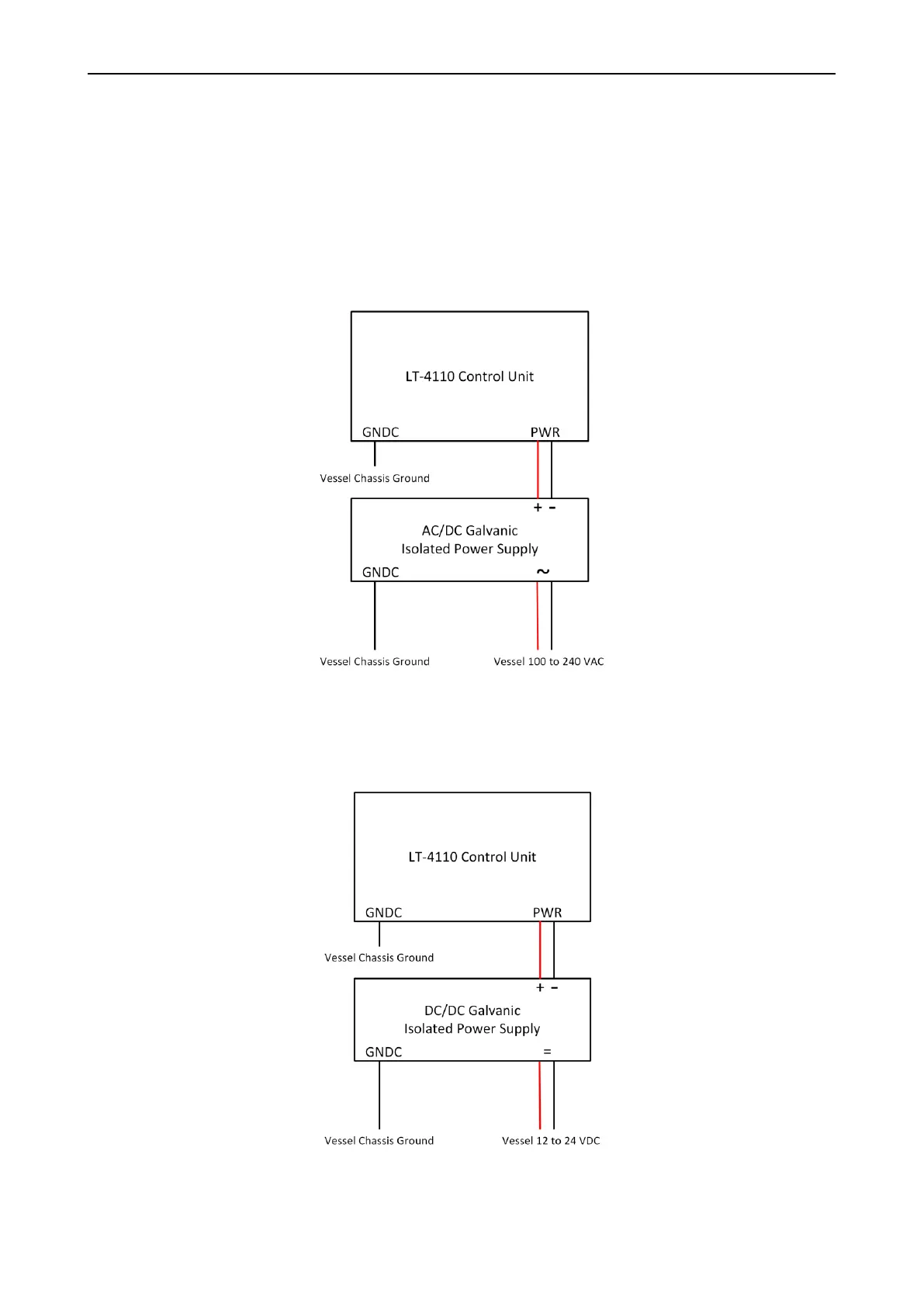

Connection of an AC/DC galvanic isolated power supply is illustrated in Figure 33.
DC/DC Galvanic Isolated Power Supply
Connection of an DC/DC galvanic isolated power supply is illustrated in Figure 34.
Figure 33: AC/DC Galvanic Isolated Power Supply
Figure 34: DC/DC Galvanic Isolated Power Supply
