Lars Thrane Iridium Certus LT-4100 User Manual

LT-4100 User & Installation Manual Rev 1.00 Installation and Mounting
Lars Thrane A/S www.thrane.eu Page 6 of 129
Installation and Mounting
LT-4110 Control Unit
The LT-4110 Control Unit is the master unit in the system, supporting all external interfaces and the
operational user interface. The LT-4110 Control Unit is designed for indoor mounting. Check the
specifications in App. G - Specifications on page 120.
The LT-4110 Control Unit has the following interfaces:
• 2-pin power connector (male), marked ‘PWR’
• Chassis ground connector, marked ‘GNDC’
• N connector (female) for coaxial cable to the LT-4130 Antenna Unit, marked ‘ANT’
• Ethernet (RJ-45) connector, marked ‘LAN’
• 10-pin auxiliary connector (male), marked ‘AUX’
• SIM card, marked ‘SIM’
• 5-pin connector (female) for LT-3120 Handset (front of the control unit)
The interfaces on the back side of the LT-4110 Control Unit are illustrated in Figure 3 on page 7.

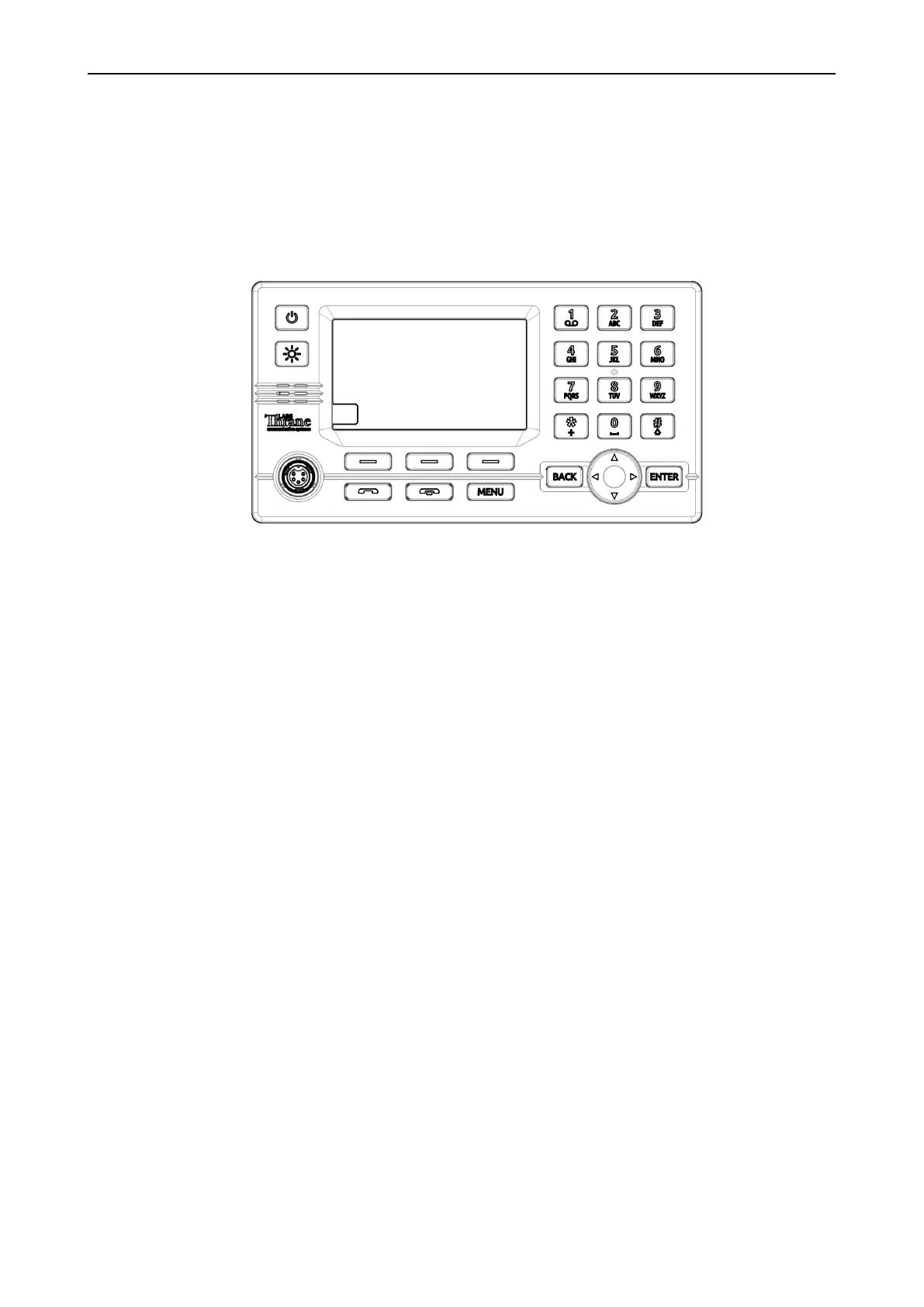

Figure 2: LT-4110 Control Unit (front view).
