LT-4100 User & Installation Manual Rev 1.00 Installation and Mounting
Lars Thrane A/S www.thrane.eu Page 7 of 129
The LT-4110 Control Unit interfaces are described in Interfaces on page 23. The LT-4110 Control Unit, front
and backside view, are illustrated in Figure 2 and Figure 3.
The LT-4110 Control Unit user interface, display and buttons, are described in User Interface (UI) on page
38.
NOTE: The LT-4110 Control Unit must be mounted with either the Bracket Mount, Control Unit
(P/N: 91-100771) or Flush Mount, Control Unit (P/N: 91-100772) - illustrated in Figure 4
and Figure 5. The Flush Mount, Control Unit is not included in the LT-4100 Satellite
Communications System - Basic (P/N: 90-102608) and must be ordered separately.
Mounting and installation considerations:
For optimum system performance, the following guidelines on where to install and mount the LT-4110
Control Unit must be followed. It is recommended to mount the unit in a location, which fulfills these
requirements:
• Mount the unit indoor (not exposed to direct water)
• Mount the unit using either the bracket mount or flush mount
• Mount the unit on a rigid structure with a minimum of exposure to vibration and shock
• Mount the unit in an area with an ambient temperature between -15°C to +55°C (+5°F to +131°F)

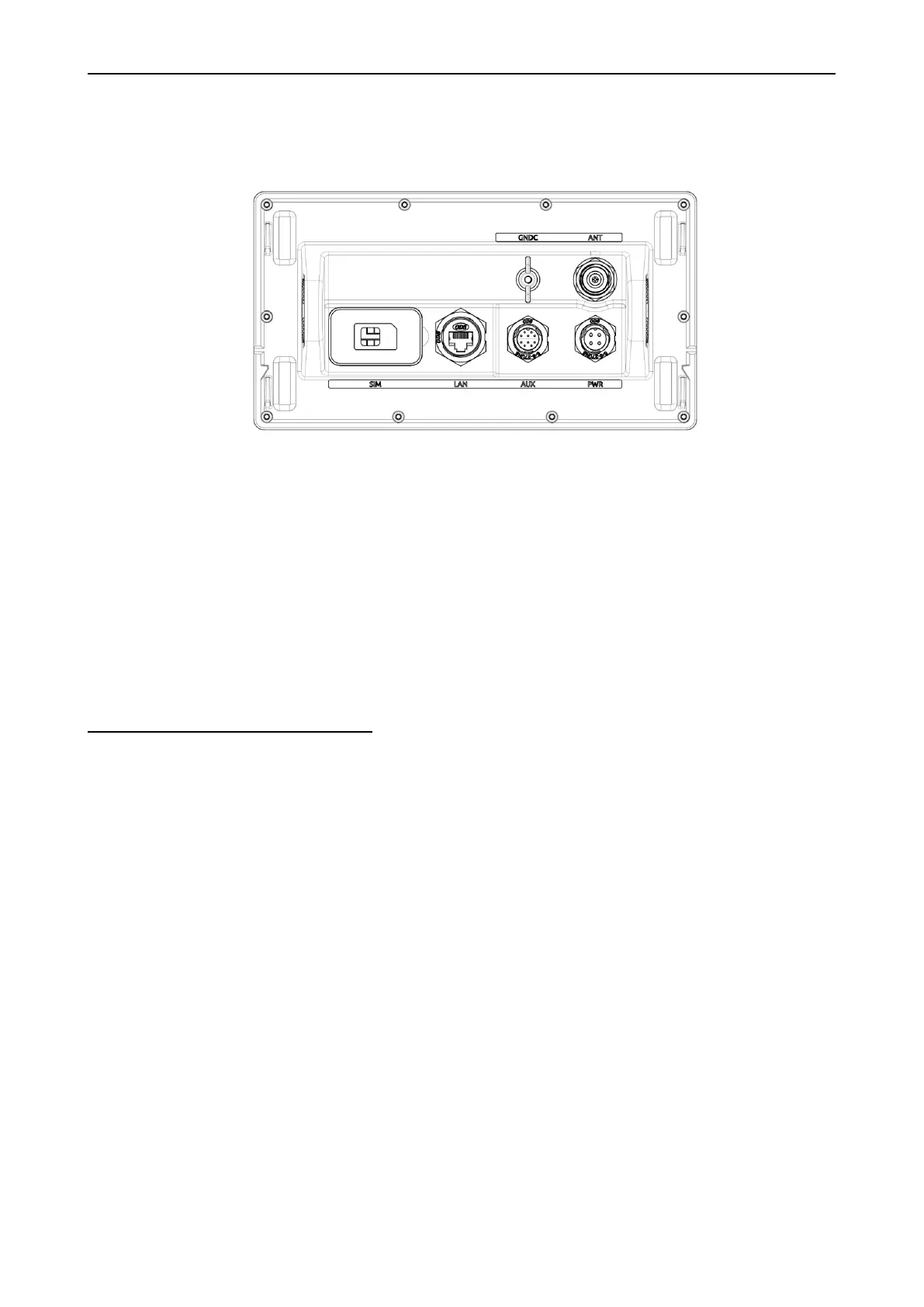

Figure 3: LT-4110 Control Unit (backside view).
