LaserPro Venus - Back View

10
Disassemble
to maintain
#1 mirror.
Please refer to the
right layout.
Laser
source
inside

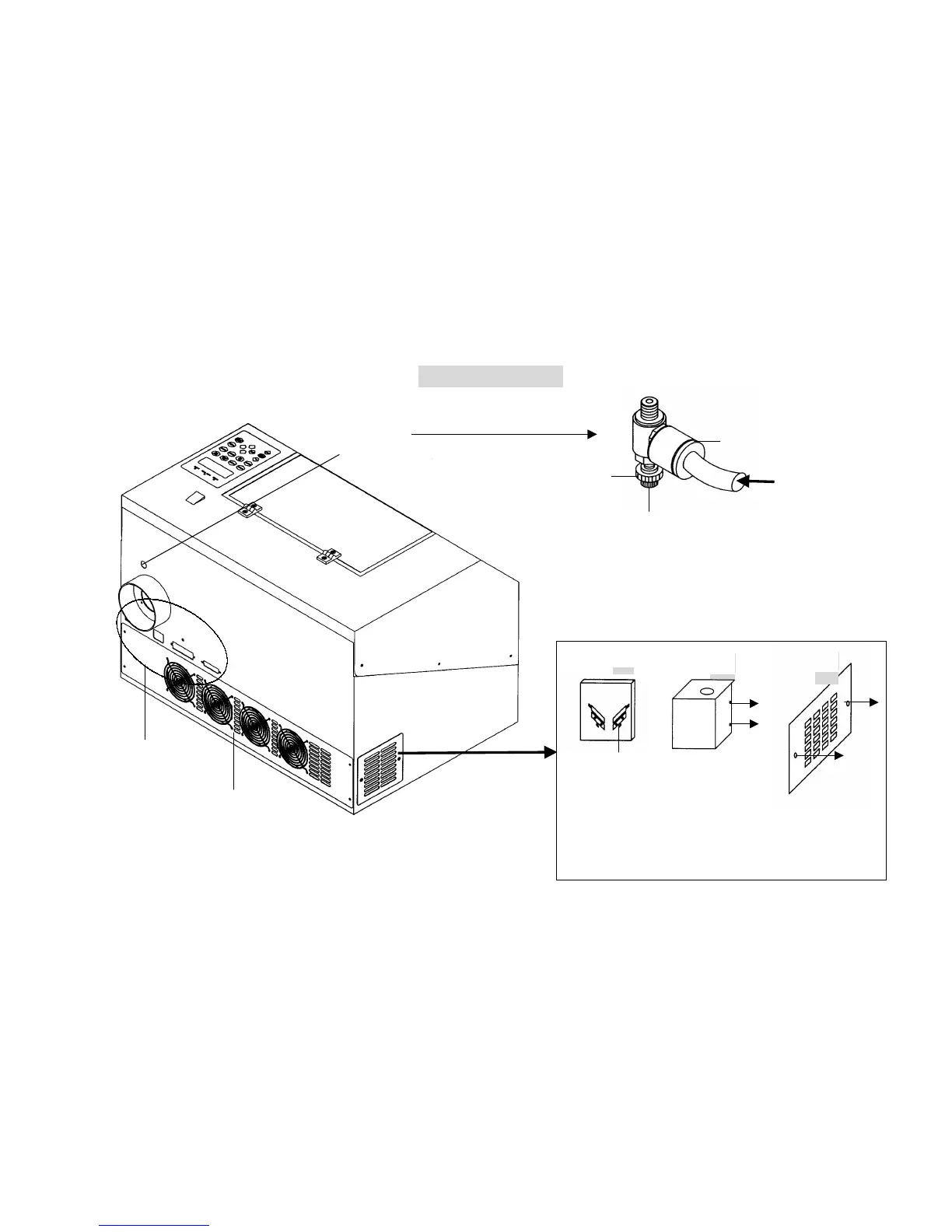

Fig. 2 Back View
Unscrew and
remove the
panel.
Unscrew and
remove the
dust prevention
box.
Unscrew and
pull out
#1 mirror
carefully
without
touching the
surface of the
mirror.
VIII.
tep
VII.
VI.
t
NOTE: Please refer to Fig. 21&22 and follow the
instruction for the basic maintenance of mirror.
fuse &
Ports
Air inlet
connect to air
compressor
Turn clockwise to
decrease the air flow
and counterclockwise to
increase the air flow.
Press the ring to
pull out the air
tube.
Air Flow
Fixer
Air Flow
Adjuster
