Maintenance

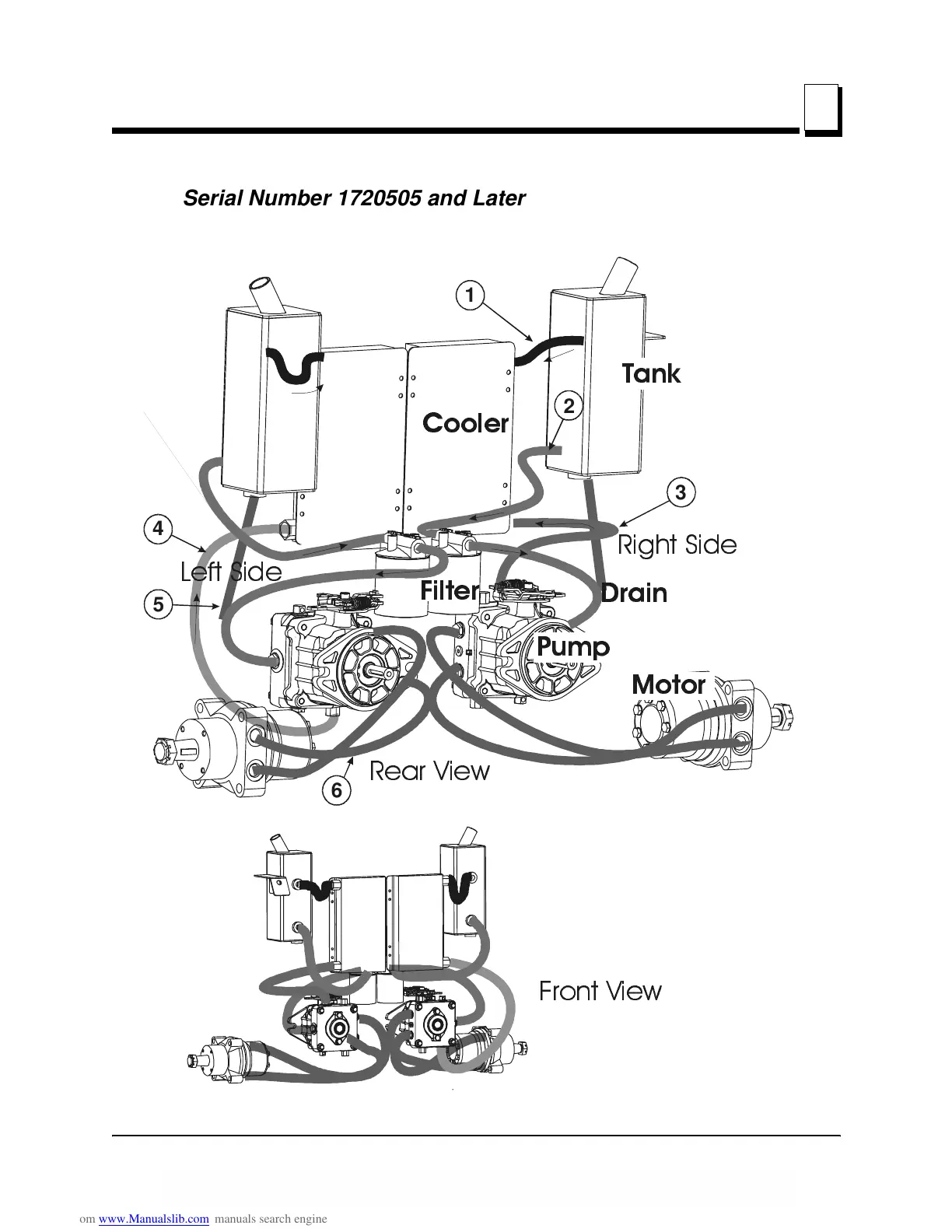

Hydraulic System Diagram
Maintenance Lastec Mower 3372/103006 5-9
5
Filter
Rear View
Front View
Tank
Cooler
Pump
Motor
Left Side
Right Side
2
1
3
4
5
Drain
6
Serial Number 1720505 and Later
