Initial Set-Up
Mounting The Articulator To The Tractor
3
3-4 XR700 062419 Initial Set-Up
6. Mount the PTO shaft to the Articulator, then to the tractor.
7. Secure the PTO guard retaining chains located at each end of the PTO shaft to the Artic-
ulator pull bar and the tractor. These prevent the outer guard from turning with the PTO
shaft for safety purposes.

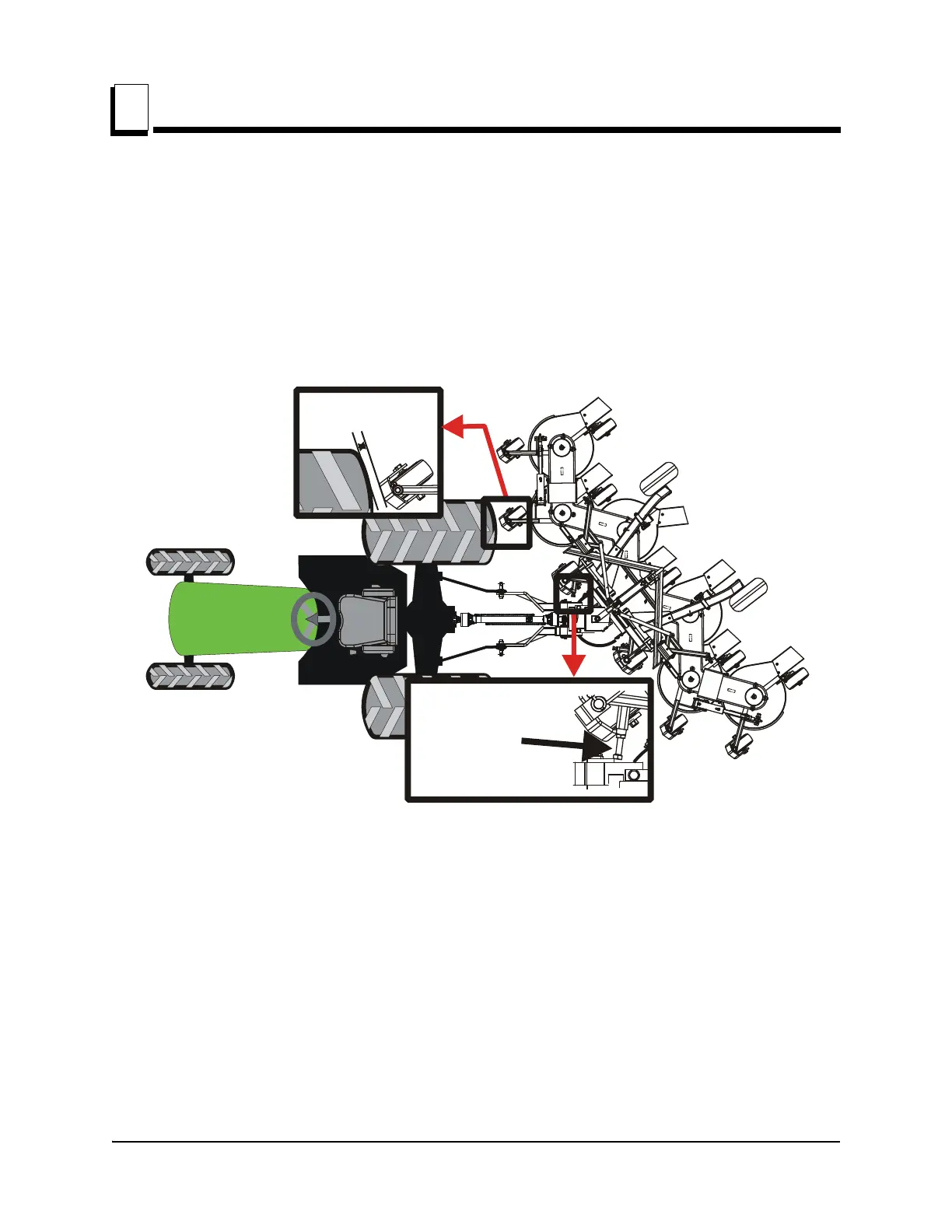

8. Turn the Articulator as far as it will go in each direction, and measure the distance
between the rear tractor tire and the Articulator. Adjust the pull bar stops (located on the
front dual wheel legs) to allow a minimum 2” clearance between the tractor tire and the
Articulator when turning.
9. Complete the entire Initial Set-Up section of this manual before attempting to operate the
Articulator.
Pull Bar Stop
2” Minimum
721_056
