Initial Set-Up
Leveling Decks 4 and 5
3
3-8 XR700 062419 Initial Set-Up
Leveling Decks 4 and 5

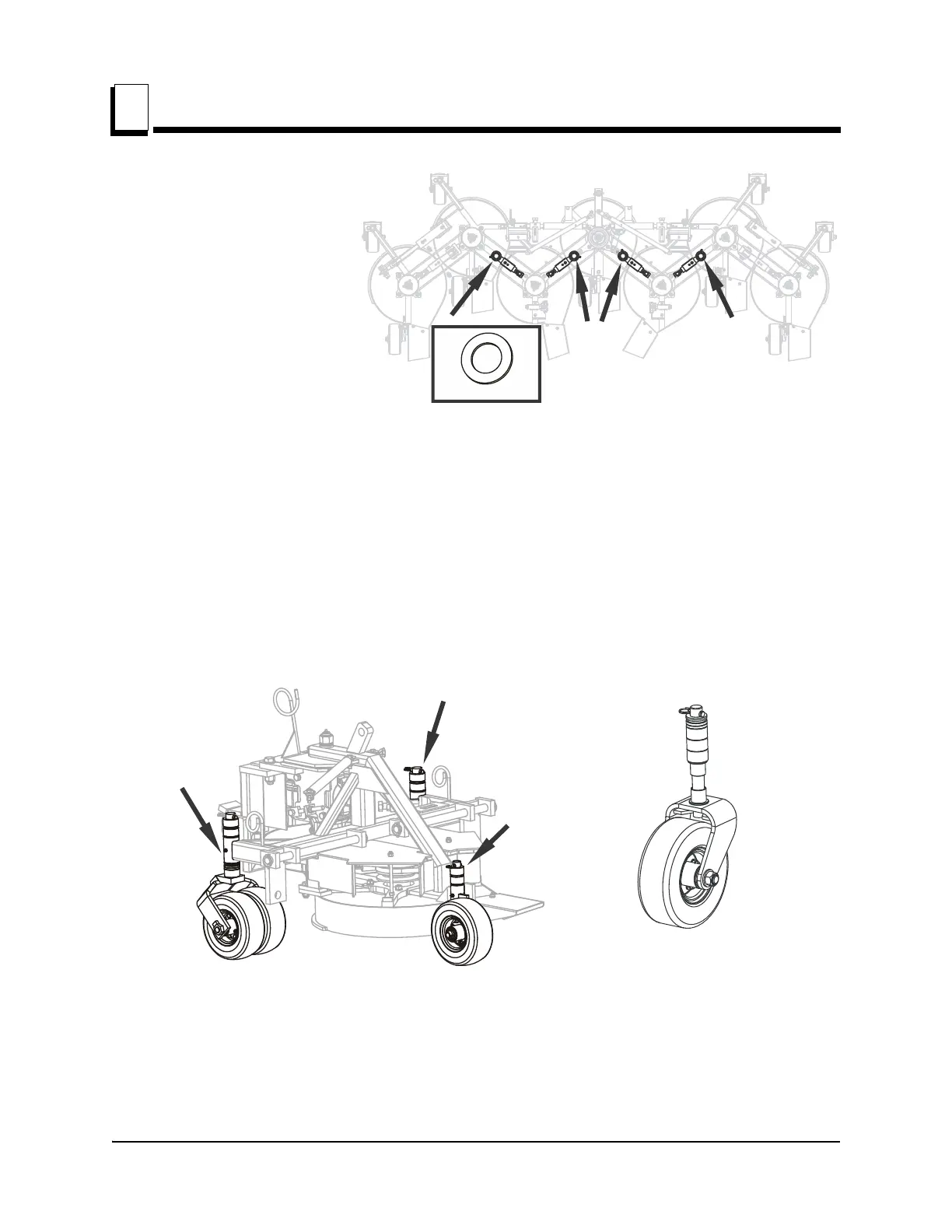

Decks 4 and 5 can be
leveled by applying
spacer P116 or T104 to
the ball joints as shown
in the illustration. Spacer
P116 is a 1/8th inch
spacer and T104 is 1/4th
inch. All joint spacers
may need to be arranged
until the deck is in the
proper level configura-
tion.
Additional leveling of the rear deck pans on decks 4 and 5 can be accomplished by using
the turnbuckle of the deck height adjustment chain, as described in the following section,
Mower Deck Height Adjustment.
Replacing Wheels
If one wheel is replaced, the wear level of the surrounding tires may cause the deck to
cant in one direction. Leveling the decks due to a tire replacement may be necessary.
Spacers on the wheel yoke assembly may be rearranged to accommodate the new tire.
See Section 5 Wheels of the 721XR Parts Manual for the correct spacer for the yoke of
the new tire. Additional or replacement spacers may be obtained from your Lastec dealer.
