Integral T process thermostats
36 Starting up YAWE 0026 / 21/01/2019

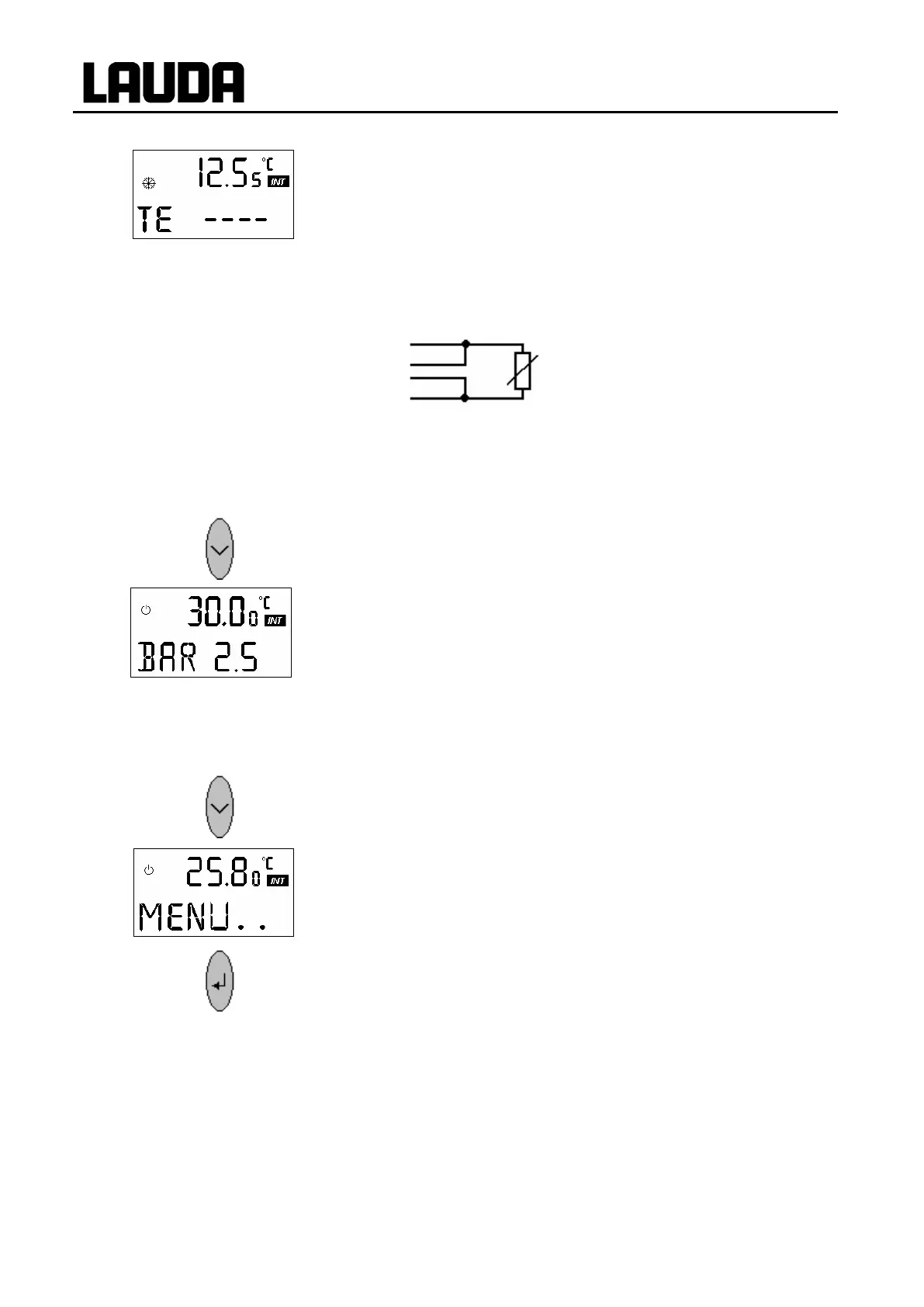

 When external Pt100 is not connected.
Connection of the external Pt100 to Lemo socket 10S:
Pin
1
2
3
4
+
+
-
-
I
U
U
I
Current path
Voltage path
Voltage path
Current path
Pt100
DIN EN 60751
 4-pin Lemosa plug for Pt100 connection (Cat. No. EQS 022).
 Use screened connecting cable. Connect screen to connector case.
7.5.3 Pressure indication
 Line 2 indicates the pump pressure which establishes
itself through the flow resistance in the external circuit.
 This indication is also required for adjusting and
monitoring the bypass.
 The actual pump flow rate can be deduced from the
pump characteristic.
7.5.4 Menu . .
 Scroll to level 1.
