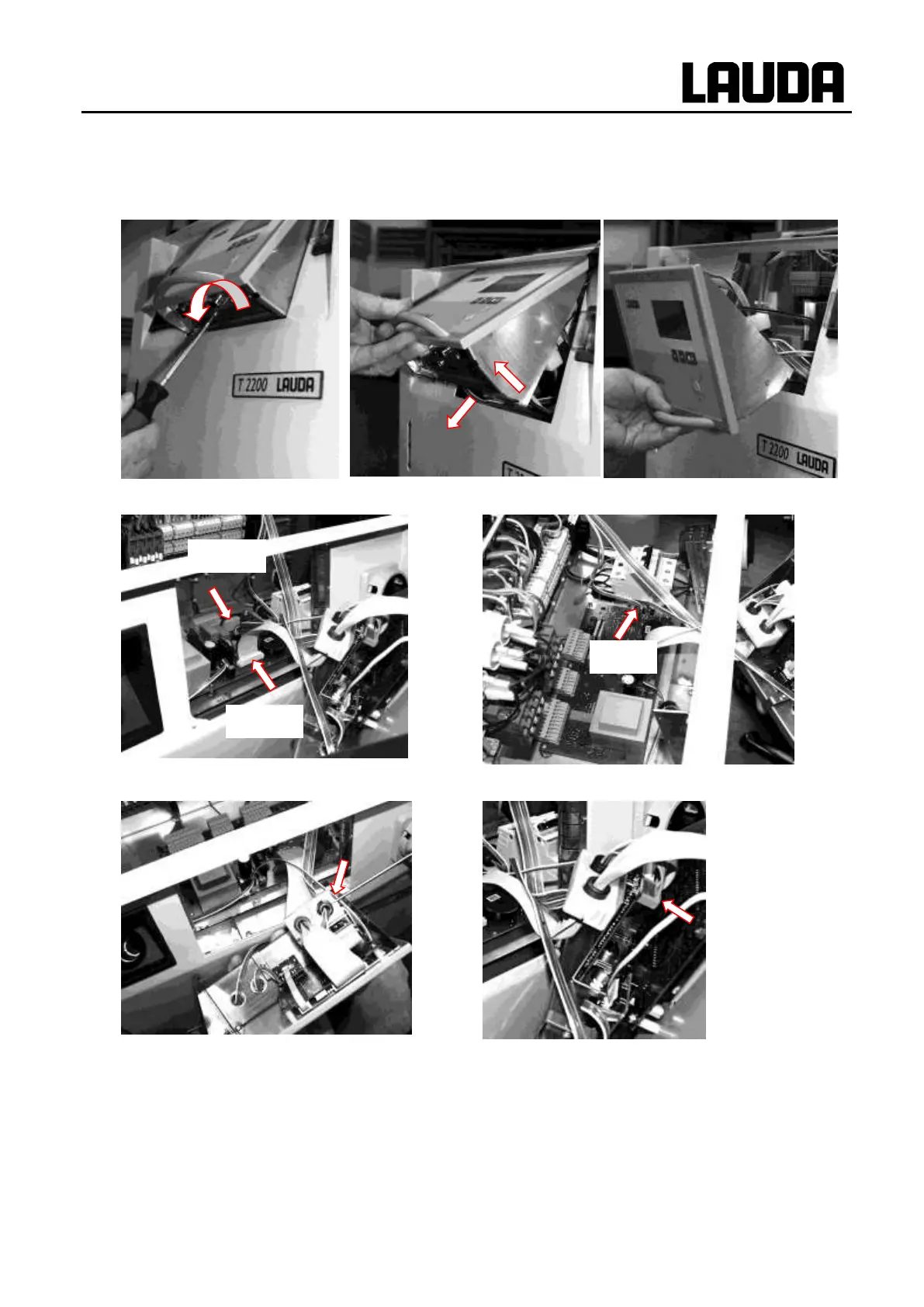

8.5.1 Dismantling the control unit
Turn the screw for the locking tab anticlockwise up to the stop. Swing out the control unit and pull it out
downwards.
Carefully disconnect the connectors!
Disconnect connector A1/X61 and A1/X20.
Disconnect connector A1/X6.
Unlock with screwdriver and remove the mounting.
Disconnect the connector A3/X5.
A1/X61
A1/X20
A1/X6
A3/X5
