Lauda Integral T 4600 - Page 90

Integral T process thermostats
90 Maintenance YAWE 0026 / 21/01/2019
T 2,5 A, 5x20
UL 514-A/B

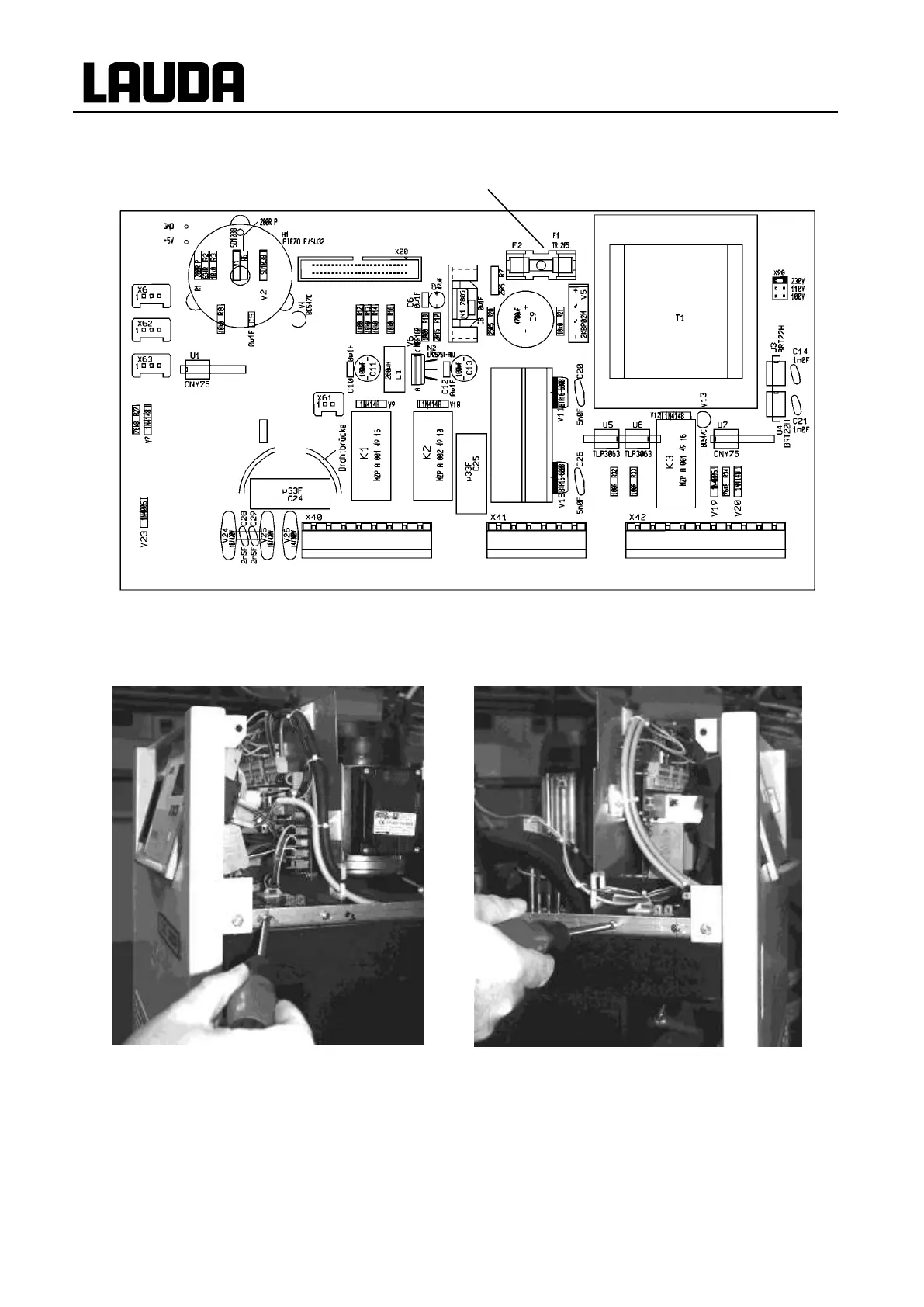

Circuit board UL 514-A/B (power supply) carries an instrument fuse T 2,5 A; 5x20. Cat. No. EEF 025.
This is accessible after opening up the unit. The panels to the left and right of the electrical section may
have to be removed.
