Integral T process thermostats
21/01/2019 / YAWE 0026 Starting up 45

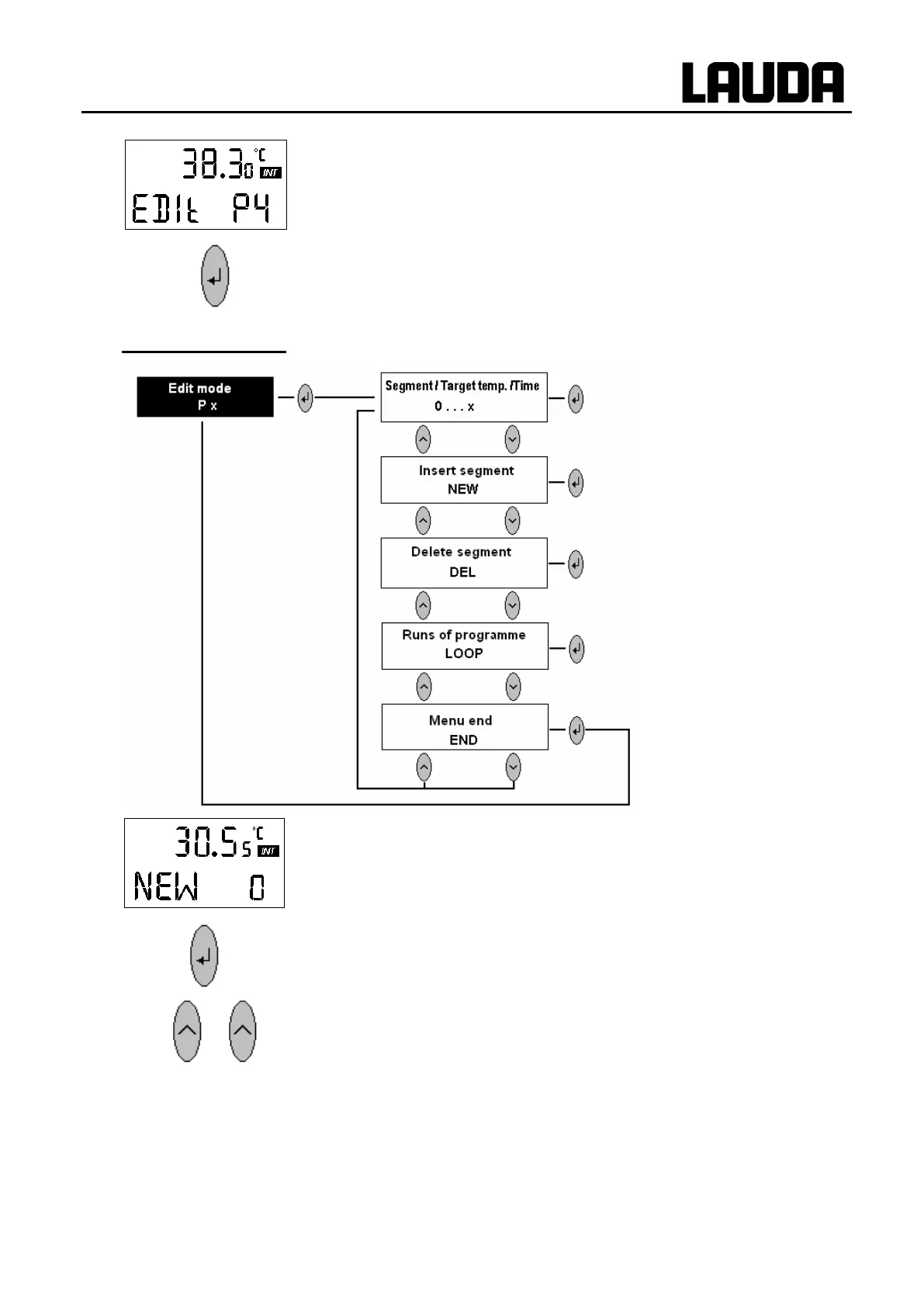

 Press key to enter.
Input of a programme:
( Programming example 7.6.3.1)
 This display appears if the programme storage
position is empty; i.e. no segment has been defined.
2x
 Increments the number of segments by one each time
until the required number of segments appears. In this
example 6 segments.
. . .
 Press several times until the display below appears.
The segment indication runs backwards.
