Integral T process thermostats
21/01/2019 / YAWE 0026 Starting up 47

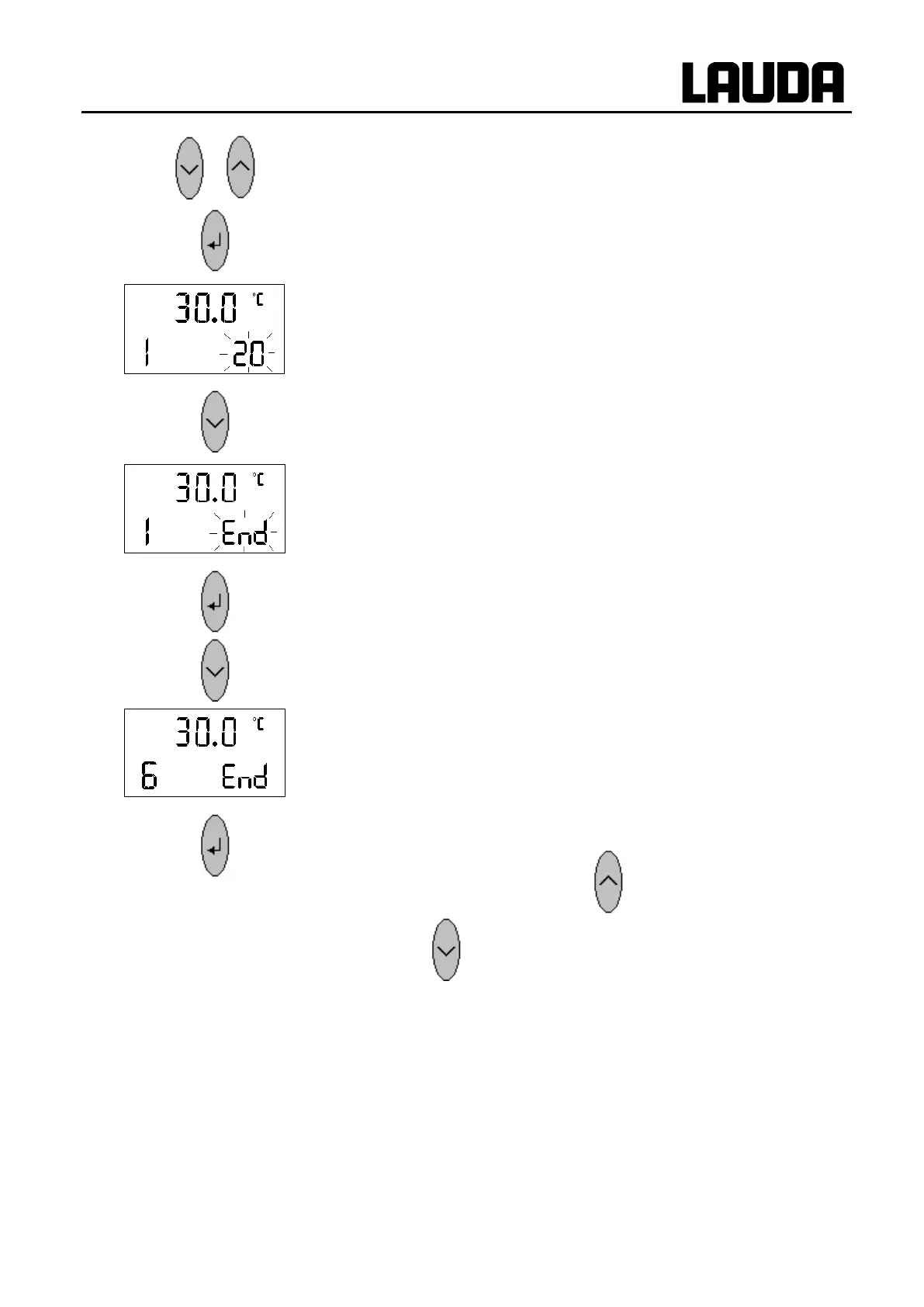

Input the segment time 0 – 999 min.
Enter the value, or it is entered automatically as
above.
Terminates input mode for segment 1.
Click forward to segment 2. Further inputs as for
segment 1 etc. until the final segment 6.
Programme has been input completely.
It is useful to check the contents of the programme
store. To do this, press to segment 1 and with
show all segment data consecutively on the
display.
